YOKOGAWA ADV569 Digital Output Module

Description

YOKOGAWA ADV569 Digital Output Module

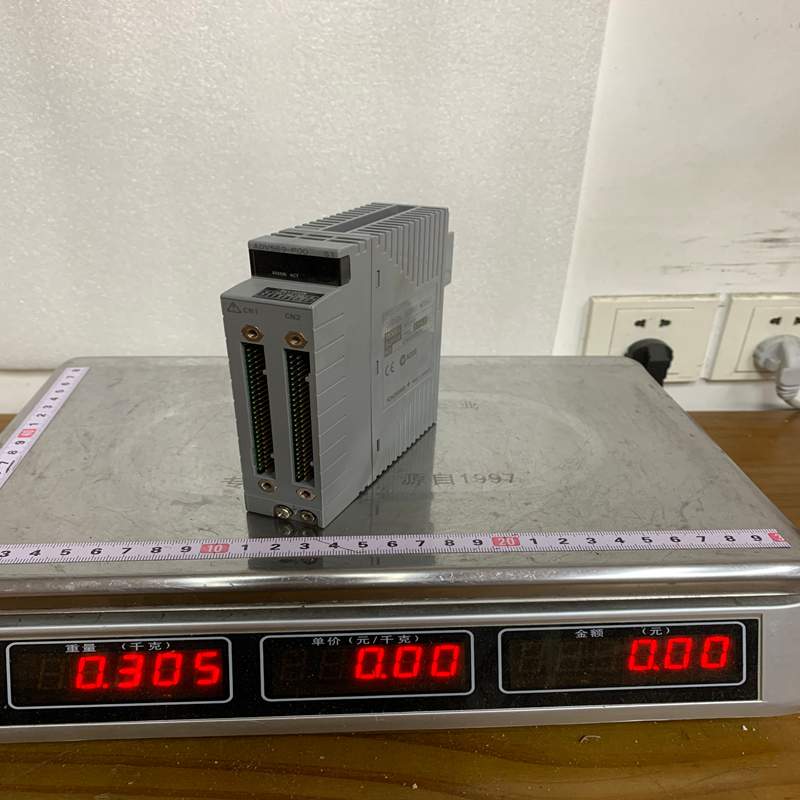

Product Dimensions：

The Yokogawa ADV569 is a high-density, high-reliability Digital Output Module designed for use in Yokogawa’s flagship CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). It is primarily utilized to control field equipment by outputting discrete on/off signals.

Product Detailed Description

The ADV569 is a 64-channel digital output module that uses a common ground configuration (often split into blocks). It receives control commands from the field control station (FCS) and switches external loads like interposing relays, solenoid valves, and indicator lamps. The module features dual-redundant capability, meaning two modules can be configured in a redundant pair to ensure uninterrupted plant operation if one module fails.

Technical Parameters

Product Advantages

• High-Density Design: Packed with 64 channels in a single slot, it drastically reduces cabinet space requirements and lowers the total cost of installation.
• Dual-Redundancy Support: Can be deployed in a redundant configuration. If the primary module encounters an internal fault, control seamlessly switches to the backup module without bumping the process.
• Hot-Swappable: Supports online replacement. Maintenance personnel can replace a faulty module without shutting down the controller or interrupting the field processes.
• Status Indicators: Built-in status LEDs on the front panel allow for quick visual confirmation of each channel’s active state and overall module health.

Important Considerations & Precautions

• Current Limitation: Each channel is strictly rated for 100 mA. Connecting inductive loads that draw more than 100 mA will damage the output transistors. Always use external interposing relays for heavy loads.
• Surge Protection: When driving inductive loads (such as solenoid valves or relay coils), external surge absorbing diodes must be installed across the load to suppress back-EMF spikes.
• External Power Supply: The 24V DC field power supply must be stable and properly fused. Overvoltage or voltage surges on the field side can permanently damage the module’s output circuits.
• Wiring Configurations: Pay close attention to the model suffix (e.g., sink vs. source type) to ensure that external wiring aligns correctly with how common grounds are partitioned on the terminal block.

Product Applications

The Yokogawa ADV569 is a standard component in heavy process industries managed by CENTUM DCS:

• Oil & Gas Refineries: Controlling interposing relays for motor starters, pumps, and fans.
• Chemical Processing: Actuating small solenoid-driven dosing valves and process line switches.
• Power Generation: Driving digital alarm annunciator windows and sequence-of-event status displays in control rooms.
• Water Treatment Plants: Managing the state of remote motorized valves and backwash cycle equipment.
