Yokogawa ADV169-P00 Digital Output Module

Description

Yokogawa ADV169-P00 Digital Output Module

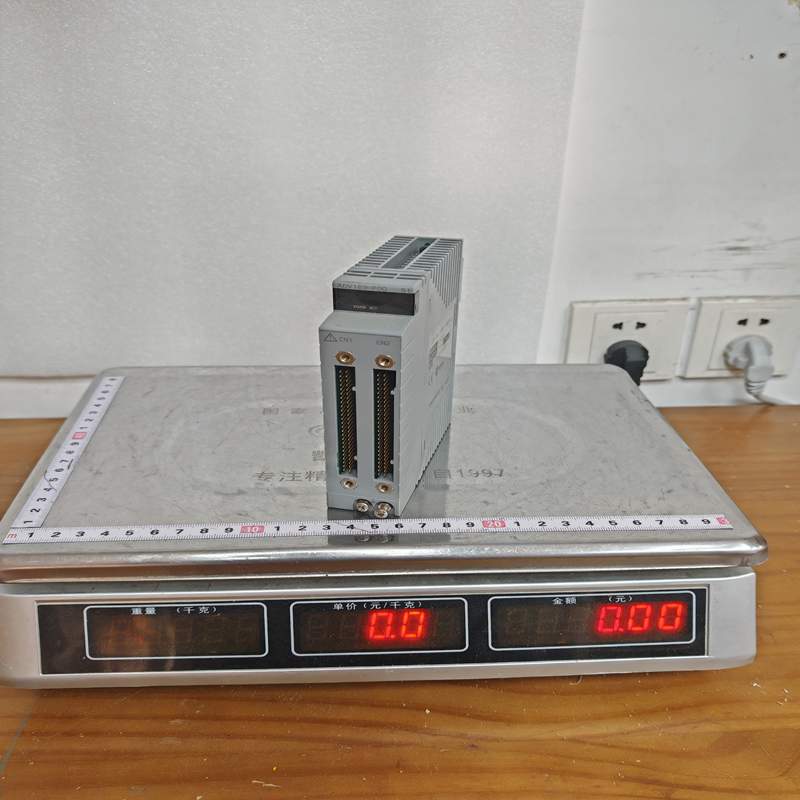

Product Dimensions：

The Yokogawa ADV169-P00 is a high-density Digital Input Module designed for use with the CENTUM VP and CENTUM CS 3000 Distributed Control Systems (DCS). It belongs to the FIO (Field network I/O) series, which is known for its high reliability and seamless integration into critical process automation systems.

Product Detailed Description

The ADV169-P00 is a 64-channel digital input module that accepts dry contact (voltage-free) signals. It is designed to monitor a large volume of discrete field states—such as valve positions, switch statuses, and motor run/stop feedbacks—and transmit this data back to the Field Control Station (FCS).

The module features a pressure-clamp terminal block connection or a dedicated signal cable connection (via a terminal board) to manage the high density of field wiring efficiently.

Technical Parameters

Product Advantages

• High-Density Footprint: Packing 64 channels into a single FIO slot significantly reduces the required number of I/O nests and cabinet space, driving down overall hardware costs.
• Dual-Redundancy Capable: For mission-critical control loops, two ADV169 modules can be configured in a redundant pair. If the primary module encounters a fault, control bumplessly switches to the backup module.
• Hot-Swappable: The module can be replaced while the system is powered and online, eliminating process downtime during routine maintenance.
• Advanced Diagnostics: Built-in self-diagnostics continuously check the integrity of the module’s internal circuitry and report status anomalies directly to the CENTUM engineering station.

Important Considerations & Precautions

• Wiring & Connection: Because of the 64-channel density, using standard individual wire terminations directly to the module can be cumbersome. It is highly recommended to use Yokogawa’s dedicated pre-fabricated cables (e.g., KS1 cable) linking the module to an external M4 terminal board.
• Contact Rating: Ensure that the external field switches/contacts are rated to handle the low-current wetting voltage provided by the loop to prevent contact oxidation over time.
• Signal Grouping: Note that while channels are isolated from the internal system logic, they share common lines within their 16-channel blocks. Cross-talk or ground loops must be avoided when wiring different field power zones.

Product Applications

The ADV169-P00 is used globally across heavy process industries where centralized, reliable digital monitoring is required:

• Refineries & Petrochemical Plants: Monitoring emergency trip switches, valve limit switches, and safety interlocks.
• Power Generation: Tracking the status of circuit breakers, auxiliary pumps, and motorized dampers.
• Water & Wastewater Treatment: Collecting status indicators from remote tank level switches and chemical dosing pumps.
• Pharmaceutical & Food Production: Interfacing with discrete sensors across cleanrooms and automated batching processes.
