YASKAWA GA80U4005ABM GA800 Series AC Drive

Description

YASKAWA GA80U4005ABM GA800 Series AC Drive

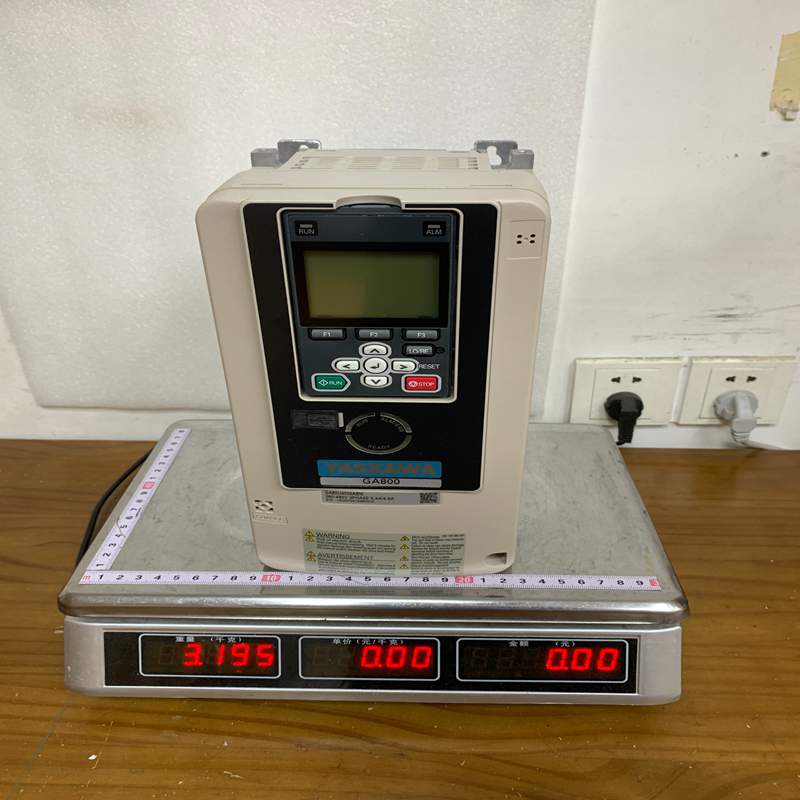

Product Dimensions：

The Yaskawa GA80U4005ABM is a high-performance variable frequency drive (VFD) from the GA800 Industrial AC Drive series. Engineered to balance power, precise motor control, and ease of use, this drive excels in managing both traditional induction motors and high-efficiency permanent magnet motors.

Product Detailed Description

The GA80U4005ABM is a three-phase, 460V/480V class inverter designed for variable speed control of industrial electric motors. It features dual-rating options—Normal Duty (ND) and Heavy Duty (HD)—enabling a single piece of hardware to adapt to varying load dynamics. It is equipped with a high-resolution multi-language display, embedded functional safety capabilities, and advanced mobile connectivity via Bluetooth and Yaskawa’s DriveWizard Mobile app.

Technical Parameters

Product Advantages

• Flexible Dual Rating: Operates efficiently under Normal Duty (for centrifugal fans and pumps) or Heavy Duty (for high-starting torque applications like conveyors and extruders).
• Smart Ecosystem & Connectivity: Features embedded Bluetooth, allowing technicians to program, tune, and monitor the drive from a mobile device without opening the control panel door.
• Advanced Logic Customization: Includes DriveWorks EZ, an embedded function block programming tool that allows customization of application logic directly inside the VFD, eliminating the need for an external micro-PLC.
• Exceptional Control Precision: Supports advanced vector architectures that deliver outstanding speed regulation and maximum torque production down to zero speed.
• Environmental Resilience: Standard conformal coating protects the internal circuit boards against humidity, dust, and microscopic particulate pollution.

Important Considerations (Precautions)

• Overload Matching: Verify whether your mechanical application demands Normal Duty (110% overload) or Heavy Duty (150% overload) to ensure you are sizing the motor current (I_{out}) within the 4.8 A to 5.4 A boundary.
• Heatsink Clearance: Maintain required clearance spaces above, below, and on the sides of the IP20 chassis to guarantee proper airflow from the cooling fan.
• Safe Torque Off (STO): While the STO eliminates power to the motor coils to prevent unexpected startup, it does not provide galvanic isolation. Always isolate the main AC line power source upstream before attempting hands-on physical electrical maintenance.
• Dynamic Braking: For applications involving rapid deceleration or high-inertia stops, an external dynamic braking resistor must be sized and wired to the internal brake transistor terminals to absorb regenerative energy.

Product Applications

The GA80U4005ABM is highly versatile across a wide spectrum of machinery:

• Conveyor Systems: Utilizing heavy-duty vector control for consistent speed and reliable torque under sudden load spikes.
• Pumps and Fans: Leveraging variable frequency adjustments to significantly reduce energy costs via quadratic torque load profiles.
• Packaging Equipment: Synchronizing multi-axis machinery requiring fast acceleration/deceleration response bands.
• Mixers and Agitators: Providing steady, high torque at low operational mixing speeds for heavy viscous fluids.
