Wenglor YM22PBV2 Diffuse Reflection Photoelectric Sensor

Description

Wenglor YM22PBV2 Diffuse Reflection Photoelectric Sensor

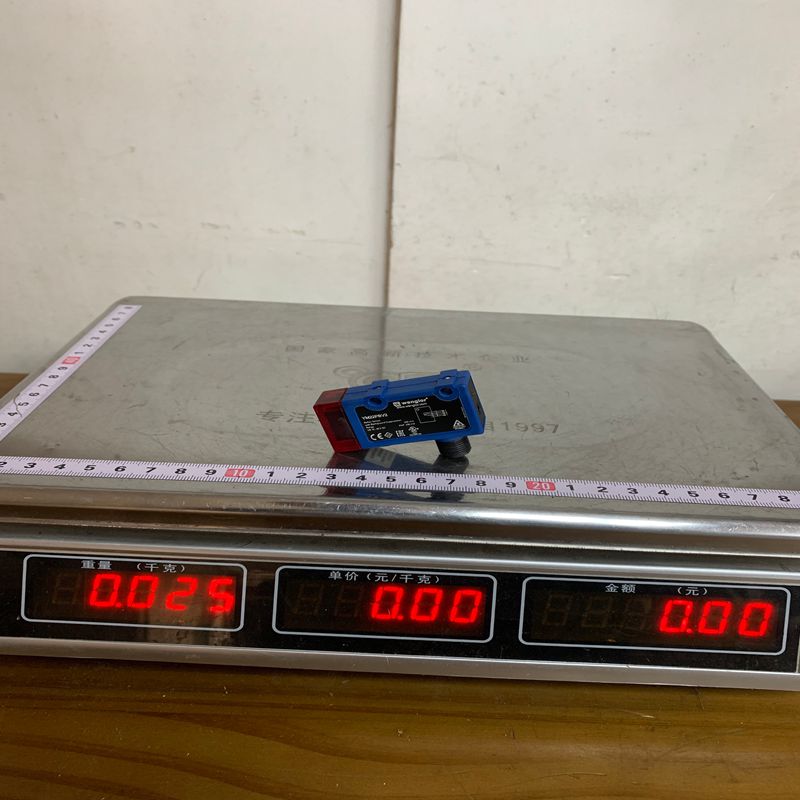

Product Dimensions：

The Wenglor YM22PBV2 is a high-performance Reflex Sensor with Background Suppression. Utilizing laser technology and triangulation (angle measurement), it is designed to detect objects accurately regardless of their color, shape, or surface texture, even against complex backgrounds.

Below is the detailed technical breakdown of the product in English.

1. Product Specifications

The YM22PBV2 is characterized by its compact plastic housing and high-speed response capabilities.

Optical Data

Electrical Data

Mechanical Data

2. Product Advantages

• Color Independence: Since it measures the angle of reflected light (triangulation) rather than intensity, it provides reliable detection of dark objects against light backgrounds (Good black/white characteristics).

• High Precision: The small laser light spot (1 mm) allows for the detection of very small parts or precise positioning.

• High Speed: A switching frequency of 1,600 Hz makes it suitable for fast-moving production lines and high-speed counting.

• Contamination Warning: It includes a dedicated contamination output to alert the system if the lens is dirty or the signal is weakening before a failure occurs.

• Space-Saving: The compact design allows for installation in tight industrial environments.

3. Product Applications

The YM22PBV2 is widely used in automation for:

• Small Part Detection: Identifying tiny components on conveyors or in feeder bowls.

• Packaging Industry: Detecting presence/absence of items inside boxes or on high-speed wrapping machines.

• Electronics Assembly: Precise positioning of PCBs or small electronic components.

• Automotive: Detecting dark or glossy plastic parts regardless of the background color.

4. Usage Precautions

• Laser Safety: This is a Class 2 Laser product. Do not stare directly into the beam, as it can cause eye damage.

• Optical Alignment: Ensure the laser spot is centered on the object. Because it uses triangulation, the orientation of the sensor relative to the movement of the object is important (ideally, the object should move laterally across the “eyes” of the sensor).

• Lens Maintenance: While it has a contamination warning, regular cleaning of the optical lens with a soft cloth is recommended to maintain peak accuracy.

• Tightening Torque: When mounting, do not exceed the recommended torque for the M4 screws (typically 1 Nm) to avoid cracking the plastic housing.
