Unitronics IO-AO6X Expansion modules

Description

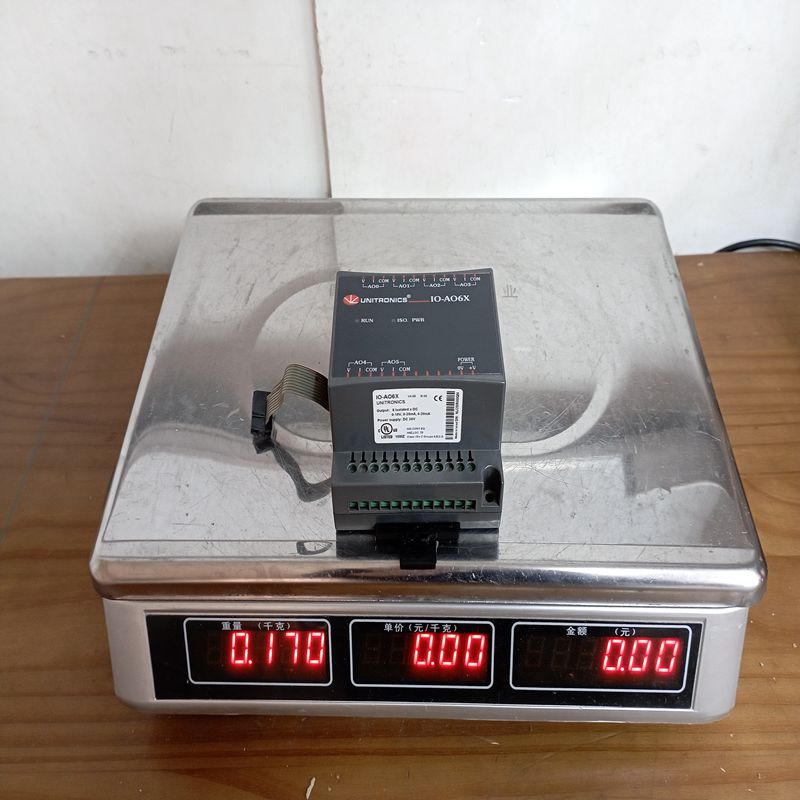

Unitronics IO-AO6X Expansion modules

Product Dimensions：

1. 📝 Product Description (产品详细说明)

The Unitronics IO-AO6X is an analog output expansion module designed to work with Unitronics’ line of programmable logic controllers (PLCs), primarily the Vision and Samba series. It expands the analog output capabilities of the host PLC, allowing it to control devices that require a precise analog signal, such as variable frequency drives (VFDs), actuators, and control valves. The module is typically mounted on a DIN rail and communicates with the host PLC via a dedicated bus connector.

2. ⚙️ Product Specifications (产品参数)

3. ⭐ Product Advantages (产品优势)

• High Density: Provides six analog outputs in a compact form factor, maximizing panel space efficiency.

• Versatility: Offers user-selectable current (mA) or voltage (V) outputs per channel, catering to a wide range of industrial applications and devices.

• Ease of Integration: Seamlessly integrates with Unitronics PLCs (Vision/Samba), utilizing the simple snap-on I/O bus connector for quick installation and automatic configuration.

• Precise Control: The 12-bit resolution (for unipolar ranges) allows for fine, accurate control over connected devices, which is essential for process control loops.

• Simplified Wiring: Uses removable screw-terminal connectors, simplifying installation and maintenance.

4. ⚠️ Precautions (注意事项)

• Wiring: Always ensure that wiring is performed according to the unit’s manual. Incorrect wiring of current and voltage signals can damage the module or connected devices.

• Power Down: Disconnect power to the system before installing or removing the module to prevent electrical shock or damage to the unit.

• Grounding: Proper system grounding is essential for stable and accurate analog signal performance and to minimize electrical noise interference.

• Shielding: Use shielded cables for analog signal lines, and ensure the shield is properly grounded, especially in environments with high electrical noise (e.g., near VFDs or heavy machinery).

• Signal Range Configuration: Double-check that the output mode (Voltage/Current and the specific range, e.g., 0-10V vs. 4-20mA) is correctly configured in the PLC’s software to match the requirements of the connected field device.

5. 🏭 Product Applications (产品应用)

The IO-AO6X is utilized in various industrial automation and process control scenarios that require continuous and precise output regulation:

• HVAC Systems: Controlling the speed of Variable Frequency Drives (VFDs) for fans, pumps, and compressors (e.g., using a 0-10V signal).

• Process Control: Regulating the position of flow control valves or dampers in chemical, water treatment, or food and beverage plants (e.g., using a 4-20mA signal).

• Temperature Control: Providing the setpoint signal to temperature controllers, heaters, or cooling systems.

• Motor Speed Regulation: Setting the precise speed reference for DC motors or specialized AC motor controllers.

• Industrial Robotics: Providing movement or force command signals to pneumatic or hydraulic actuators.
