Triconex 3723X Analog Input Module

Description

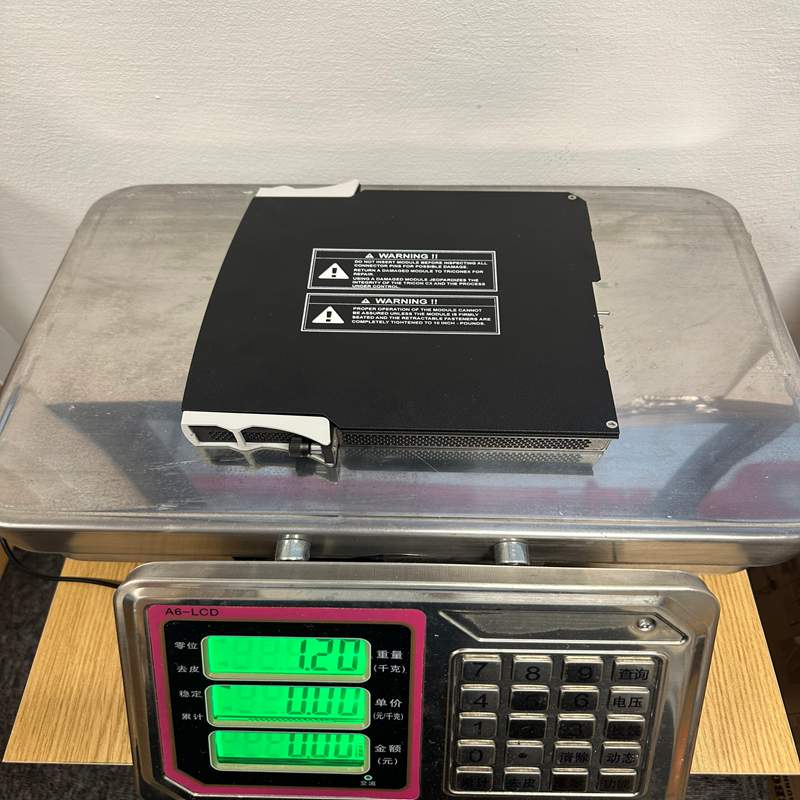

Triconex 3723X Analog Input Module

Product Dimensions：

The Triconex 3723X (often designated as Model 3723X / 3723) is a high-density Analog Input Module (AI) designed for Schneider Electric’s Triconex Tricon Safety Instrumented Systems (SIS).

Product Detailed Description

The Triconex 3723X module is an essential safety-critical hardware unit engineered to interface process transmitters (such as pressure, temperature, level, and flow sensors) with the main Tricon safety controller.

Built on Triconex’s proprietary Triple Modular Redundancy (TMR) architecture, the module contains three independent processing channels. Input signals from field sensors are split into three isolated paths, digitized separately by three A/D converters, and voted upon by the main processor modules to ensure maximum safety integrity and fault tolerance without interrupting process operations.

Technical Parameters

Product Advantages

• Fault-Tolerant TMR Design: With three independent execution paths, a failure on a single input channel or internal component will not cause a false trip or disrupt safety monitoring.
• TÜV SIL 3 Certified: Fully complies with international safety standards (IEC 61508 and IEC 61511) for high-integrity Emergency Shutdown (ESD) applications.
• Online Hot-Swapping: Allows engineers to replace a faulty module while the system is online and actively running without bringing down plant production.
• Comprehensive Self-Diagnostics: Continuously tests internal circuits, A/D converters, and signal paths to immediately alert operators to channel faults or signal out-of-range conditions.
• High Noise Immunity: Advanced filtering and optical isolation shield the system from harsh electromagnetic interference (EMI) typical in industrial plants.

Important Considerations & Precautions

• Termination Board Requirement: Analog 4–20 mA current loops typically require a matching Triconex External Termination Assembly (ETA) equipped with precision shunt resistors to convert current signals to voltage inputs.
• Conformal Coating (“X” Version): The “X” suffix generally indicates harsh-environment protection (conformal-coated PCB). Ensure replacement modules match the environmental rating specified for your panel room.
• Firmware & System Compatibility: Verify that the 3723X module hardware revision matches the installed Tricon system version (e.g., Tricon v9.x or v10.x) and TriStation 1131 software configuration.
• ESD & Physical Handling: Always use an anti-static wrist strap when removing or installing the module into the main Tricon chassis slot.

Product Applications

The Triconex 3723X is deployed in safety-critical industrial processes where unscheduled downtime or system failures pose severe environmental or human safety hazards:

• Emergency Shutdown Systems (ESD): Monitoring critical pressure and temperature thresholds in oil refineries, gas processing facilities, and chemical plants.
• Burner Management Systems (BMS): Fuel flow and boiler pressure monitoring in power plants and industrial furnaces.
• Fire & Gas Detection (F&G): Interfacing analog toxic and combustible gas detectors or flame sensors across offshore platforms.
• Turbomachinery Control (TMC): Monitoring speed, vibration, and hydraulic pressure inputs for steam and gas turbines.
