Softlink 300 972-0BA41 PROFIBUS DP Bus Connector

Description

Softlink 300 972-0BA41 PROFIBUS DP Bus Connector

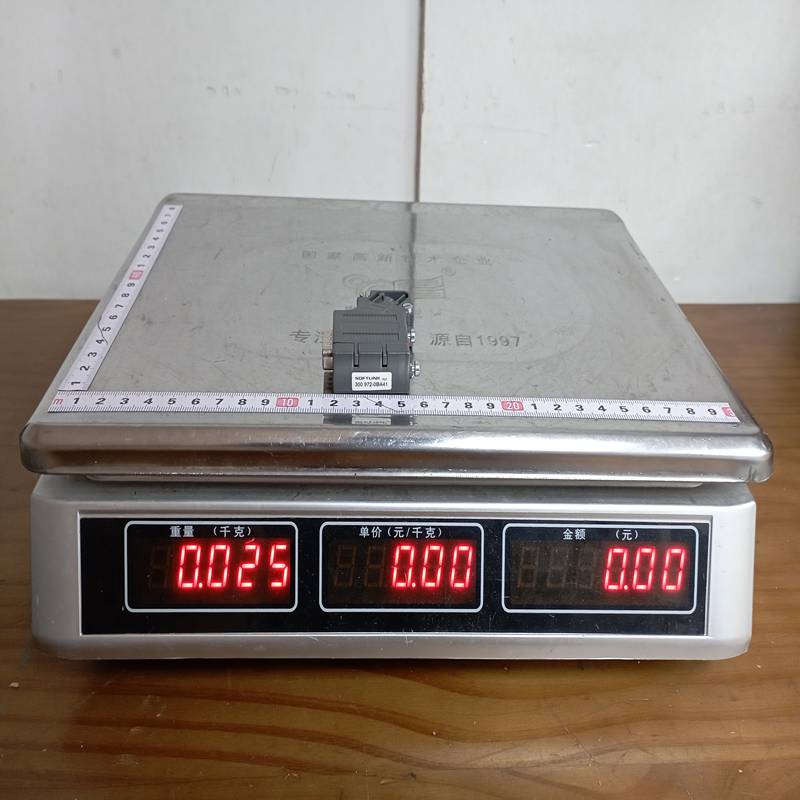

Product Dimensions：

The Softlink 300 972-0BA41 is a high-performance Profibus DP Connector designed specifically for automation systems. It is fully compatible with the Siemens SIMATIC S7-300 and S7-400 series, serving as a reliable interface between the PLC and the Profibus network cable.

Product Detailed Description

The 972-0BA41 features a 90-degree cable outlet and is equipped with a FastConnect (IDC) terminal system. This allows for quick, tool-free stripping and connection of Profibus cables. It also includes a built-in terminating resistor that can be toggled via a sliding switch, which is essential for maintaining signal integrity at the beginning and end of a network segment.

Technical Parameters

Product Advantages

• FastConnect Technology: Significantly reduces installation time. You don’t need to strip individual wires; the IDC terminals pierce the insulation automatically upon closing the housing.
• Signal Integrity: The integrated switchable resistor ensures that the network is properly terminated, preventing signal reflections and data errors.
• Compact 90° Design: The right-angle outlet is ideal for tight spaces within control cabinets where depth is limited.
• High Compatibility: Fully interchangeable with Siemens 6ES7972-0BA41-0XA0, offering a cost-effective alternative without sacrificing performance.
• Rugged Housing: Metal-plated or high-quality plastic housing provides excellent EMC (Electromagnetic Compatibility) shielding.

Important Considerations (Precautions)

• Resistor Settings: Always ensure the “ON/OFF” switch is correctly set. Only the first and last devices on a Profibus segment should be set to “ON.” Intermediate devices must be set to “OFF.”
• Cable Stripping: Use a dedicated Profibus stripping tool (like the FastConnect Stripper) to ensure the shield and conductors are cut to the exact lengths required for the IDC terminals.
• Minimum Bend Radius: Do not bend the purple Profibus cable too sharply at the 90° exit to avoid internal wire damage and signal loss.
• Avoid Hot-Plugging: While Profibus is robust, it is best practice to avoid plugging/unplugging connectors while the network is under heavy communication load to prevent transient errors.

Product Applications

The Softlink 972-0BA41 is used in any industrial environment utilizing Profibus DP protocols:

• Factory Automation: Connecting S7-300/400 PLCs to ET200S remote I/O stations.
• Drive Systems: Interfacing frequency converters (VFDs) and servo drives to a central controller.
• Process Industry: Linking sensors and actuators in water treatment or chemical processing plants.
• Machine Building: Standardized communication interface for modular machine components.
