SINEAX TV809 Isolation Amplifier

Description

SINEAX TV809 Isolation Amplifier

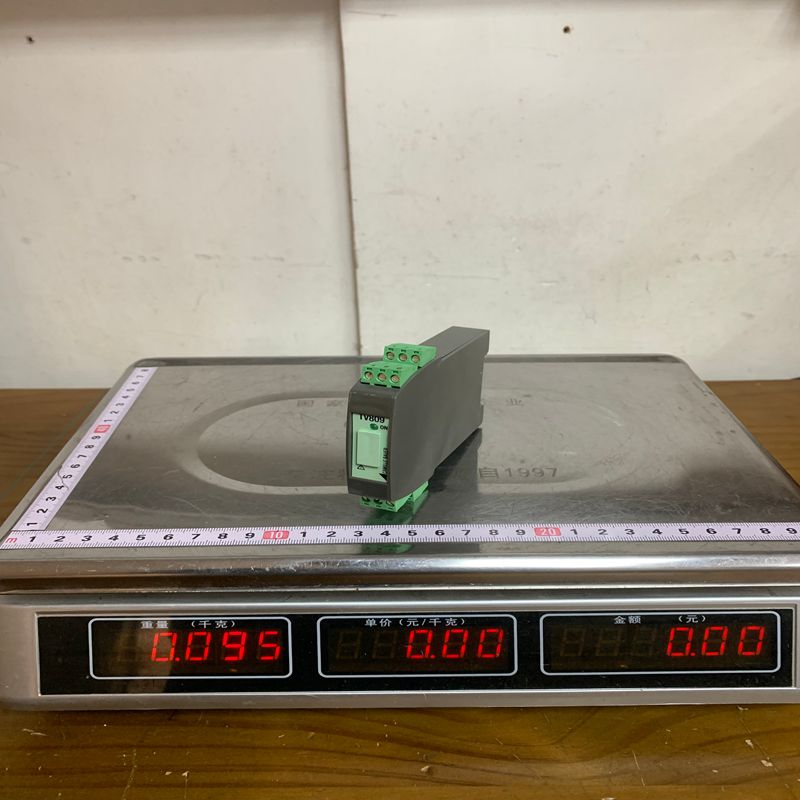

Product Dimensions：

The SINEAX TV809 is a high-performance, programmable isolation amplifier designed to galvanically isolate, convert, and amplify analog DC signals. It is widely recognized for its precision and flexibility in demanding industrial environments.

1. Product Description

The SINEAX TV809 serves as a bridge between field sensors and control systems (like PLC or DCS). It provides 3-way galvanic isolation (input, output, and power supply), which effectively eliminates ground loops and protects sensitive equipment from high-voltage transients and electrical noise.

2. Technical Specifications (Product Parameters)

3. Key Product Advantages

• Universal Programming: One device covers hundreds of measuring ranges, significantly reducing inventory costs.

• High Precision: Excellent linearity and low temperature drift ensure reliable data transmission.

• Safe Isolation: High test voltage protection ensures the safety of personnel and control systems.

• Compact Form Factor: The slim 17.5 mm housing saves valuable space inside the electrical cabinet.

• Flexible Powering: The wide-range power supply unit makes it compatible with global electrical standards.

4. Important Considerations (Precautions)

• Configuration: Always ensure the device is correctly programmed (via software or DIP switches) before connecting the output to a live control system to avoid unexpected signal levels.

• Wiring: Follow the terminal diagram strictly. Incorrect wiring of the power supply to the signal inputs can permanently damage the unit.

• Environment: Ensure the operating temperature remains within the specified range (typically -25°C to +55°C) to maintain accuracy.

• Maintenance: The device is maintenance-free, but periodic calibration checks are recommended in high-precision applications.

5. Product Applications

The SINEAX TV809 is used across various industries where signal integrity is critical:

• Power Plants: Isolating high-potential signals from grid monitoring sensors.

• Water Treatment: Converting sensor data (pH, flow, pressure) for PLC processing.

• Chemical Industry: Protecting control rooms from field-side electrical interference.

• Machine Building: Adapting non-standard signal levels to standard 0-10V or 4-20mA inputs.
