Siko MS02-0006 Counter Module

Description

Siko MS02-0006 Counter Module

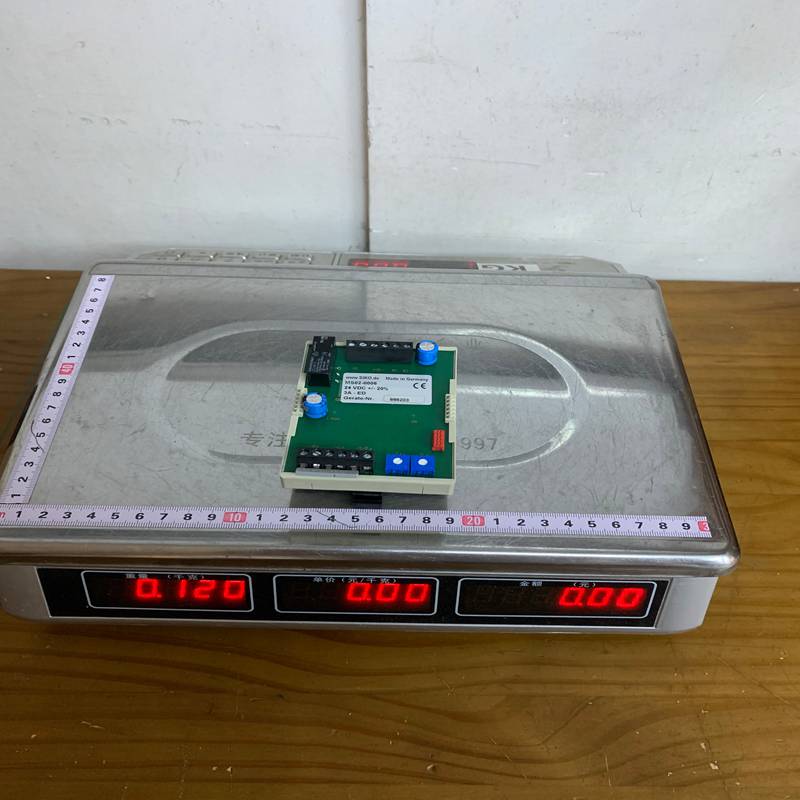

Product Dimensions：

The Siko MS02-0006 is a high-precision Magnetic Sensor (magnetic head) designed for non-contact linear and angular measurement. It is part of Siko’s MagLine series, specifically engineered to work in conjunction with magnetic tapes (like the MB200) to provide accurate positional feedback in harsh industrial environments.

Product Detailed Description

The MS02-0006 is an incremental magnetic sensor that detects the magnetic poles of a flexible magnetic scale. It translates these magnetic transitions into digital square-wave signals (A, B, and their inverted signals). Its non-contact principle ensures that there is no mechanical wear, making it an extremely durable solution for long-term industrial use.

Technical Parameters

Product Advantages

• Non-Contact Measurement: Since the sensor does not touch the magnetic scale, there is zero friction or mechanical wear, leading to a virtually unlimited service life.
• Environmental Resilience: Unlike optical encoders, magnetic technology is unaffected by oil, dust, wood chips, or humidity, making it ideal for “dirty” environments.
• High Speed: Capable of tracking movements at very high velocities (up to 25 m/s) without losing pulses.
• Compact Integration: Its small footprint allows for easy mounting in tight spaces where traditional glass scales would be too bulky.
• Cost-Effective: Offers a more affordable alternative to laser or high-end optical systems for long-distance measurements.

Important Considerations (Precautions)

• Mounting Gap: The distance between the sensor head and the magnetic tape must stay within the specified range (typically < 2.0 mm). If the gap is too wide, signal loss may occur.
• Magnetic Interference: Avoid mounting the sensor near strong external magnetic fields (e.g., large unshielded motors or magnets), as these can distort the reading.
• Alignment: Ensure the sensor is aligned correctly relative to the magnetic tape’s poles (check the orientation arrows on the housing).
• Cleaning: While resistant to debris, large metallic shavings (ferromagnetic particles) should be kept away from the sensor face to prevent interference with the magnetic flux.

Product Applications

The MS02-0006 is widely used in machinery requiring precise positioning:

• Woodworking Machinery: Measuring fence positions or saw blade heights.
• Metalworking & CNC: Position feedback for linear axes on lathes or milling machines.
• Packaging Industry: Adjusting format widths on conveyors and bottling lines.
• Stone & Glass Processing: Linear measurements in environments with high water spray and abrasive dust.
• Warehouse Logistics: Positioning of automated guided vehicles (AGVs) or lift heights in high-bay warehouses.
