Siemens ZIC-8B 8-Channel Output Zone Indicator Card

Description

Siemens ZIC-8B 8-Channel Output Zone Indicator Card

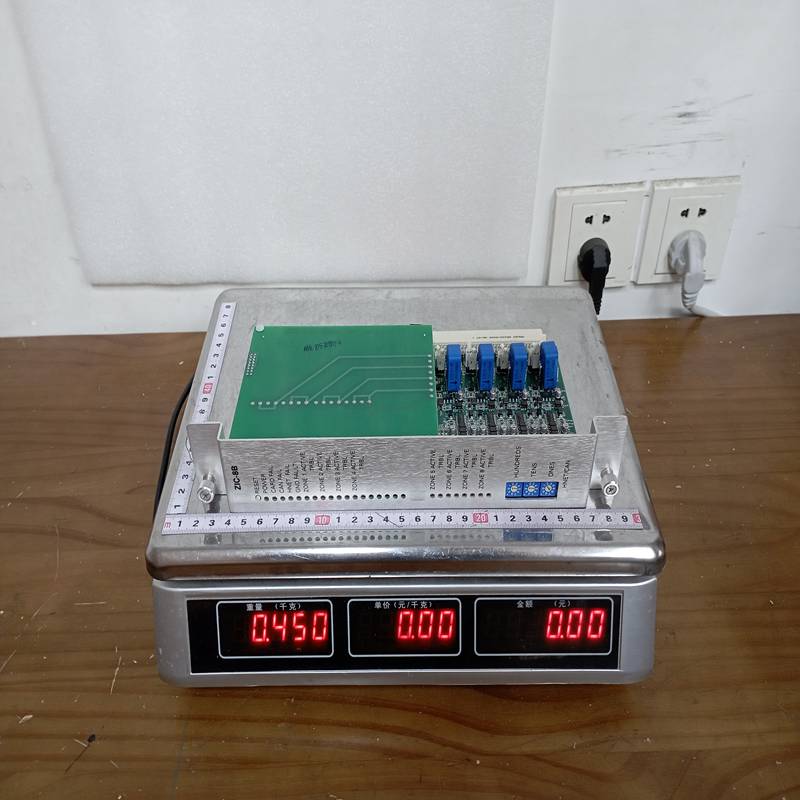

Product Dimensions：

The Siemens ZIC-8B is a high-reliability Zone Instrument Card (8-channel version) designed specifically for Siemens advanced fire alarm systems, most notably the Desigo CC and Cerberus PRO modular systems (such as the XLS/Modular panels).

Product Detailed Description

The ZIC-8B serves as an intelligent interface card that provides the fire alarm control panel with the ability to manage and supervise external notification appliance circuits (NACs). It controls audible and visual notification devices (horns, strobes, speakers) or functions as an audio zone card for voice evacuation systems. Each of its 8 channels can be independently configured, allowing for precise, localized emergency notification control within a building.

Technical Parameters

Product Advantages

• High Density & Flexibility: Consolidating 8 supervised channels onto a single slot maximizes cabinet space and reduces hardware costs for complex, multi-zone facilities.
• Dual-Application Utility: Can be programmed to handle standard 24V DC notification circuits (strobes/horns) or integrated into emergency voice evacuation networks to manage speaker zones.
• Advanced Diagnostics: Microprocessor-controlled circuitry provides real-time supervision, instantly pinpointing field wiring faults (e.g., short or open loops) down to the specific circuit.
• Versatile Coding Options: Supports multiple notification cadences, including March Time, Temporal 3 (standard fire), Temporal 4 (carbon monoxide), and steady outputs without needing extra modules.

Important Considerations & Precautions

• Power Budgeting: Ensure the fire panel’s main or auxiliary power supply (24 V DC) can handle the maximum aggregate current draw when all 8 zones are activated simultaneously.
• Class Configuration: Wiring the card for Class A loops provides higher redundancy but reduces the number of available circuits compared to a Class B configuration. Plan the terminal layout carefully.
• End-of-Line (EOL) Resistors: For Class B circuits, the correct manufacturer-specified EOL resistor must be installed at the furthest device to ensure proper supervision and prevent false trouble alarms.
• Electrostatic Discharge (ESD): As with all modular fire system cards, handle the ZIC-8B using proper grounding straps to avoid damaging the onboard microprocessors during installation or hot-swapping.

Product Applications

The ZIC-8B is deployed in medium-to-large scale commercial and industrial life-safety systems:

• High-Rise Commercial Buildings: Managing floor-by-floor selective evacuation routing via synchronized strobe lights and horns.
• Educational & Hospital Campuses: Controlling voice evacuation speaker zones to deliver targeted, spoken instructions during emergencies.
• Industrial Plants: Interfacing with mass notification networks to trigger specialized industrial sirens and visual beacons in high-noise areas.
• Data Centers: Integrating localized alarm zoning to coordinate with clean-agent fire suppression release sequences.
