Siemens S30267-Z167-A100-5 Connection Cable Assembly

Description

Siemens S30267-Z167-A100-5 Connection Cable Assembly

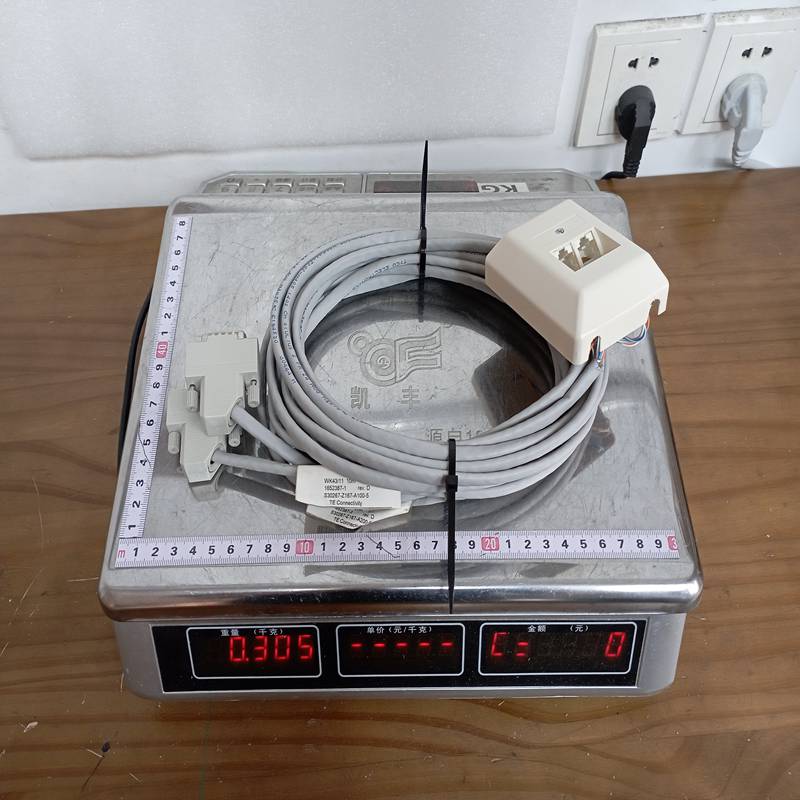

Product Dimensions：

The Siemens S30267-Z167-A100-5 is a specialized hardware component, primarily identified as an SLU8 (Subscriber Line Unit) module used within the Siemens HiPath and Hicom telecommunications systems. It is designed to facilitate the connection and management of analog subscribers within these enterprise-grade PBX (Private Branch Exchange) systems.

Product Detailed Description

The S30267-Z167-A100-5 (SLU8) is a plug-in circuit board that provides 8 analog subscriber interfaces (a/b lines). It acts as the bridge between the digital switching matrix of the HiPath 3000 series (specifically the HiPath 3350/3550) and standard analog end-devices such as telephones, fax machines, and modems.

Technical Parameters

Product Advantages

• High Port Density: Provides eight separate analog extensions in a single slot, maximizing the capacity of compact HiPath wall-mounted systems.
• Legacy Support: Allows businesses to continue using standard analog hardware (fax machines, cordless phones, analog conference phones) while benefiting from modern PBX features.
• Plug-and-Play Integration: Designed for seamless recognized by the HiPath system software, simplifying the configuration of new extensions.
• Cost-Effective Expansion: Ideal for small to medium businesses needing to add capacity without upgrading to a completely new system or full VoIP infrastructure.

Important Considerations & Precautions

• Electrostatic Discharge (ESD): This module contains sensitive CMOS components. Always use an antistatic wrist strap during installation or handling to prevent permanent damage.
• Power Cycling: It is recommended to power down the system or use the specific “software-deactivate” command before inserting or removing the card to prevent electrical arcing on the backplane.
• Lightning Protection: If extensions are routed between buildings or outdoors, secondary lightning protection modules must be installed to prevent high-voltage surges from destroying the SLU8 card.
• Ringer Equivalence: Ensure the total Ringer Equivalence Number (REN) on a single port does not exceed system limits to ensure all connected devices ring correctly.

Product Applications

The S30267-Z167-A100-5 is used in telecommunications infrastructure for:

• Office Extensions: Connecting standard desk phones in a traditional office environment.
• Fax Connectivity: Integrating legacy fax machines into the modern digital office network.
• Hospitality: Providing analog phone lines to guest rooms in hotels using HiPath PBX systems.
• Point-of-Sale (POS): Connecting analog credit card terminals or modems in retail settings.

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Please make an inquiry for more models：
