Siemens PXC001-E.D Controller Module

Description

Siemens PXC001-E.D Controller Module

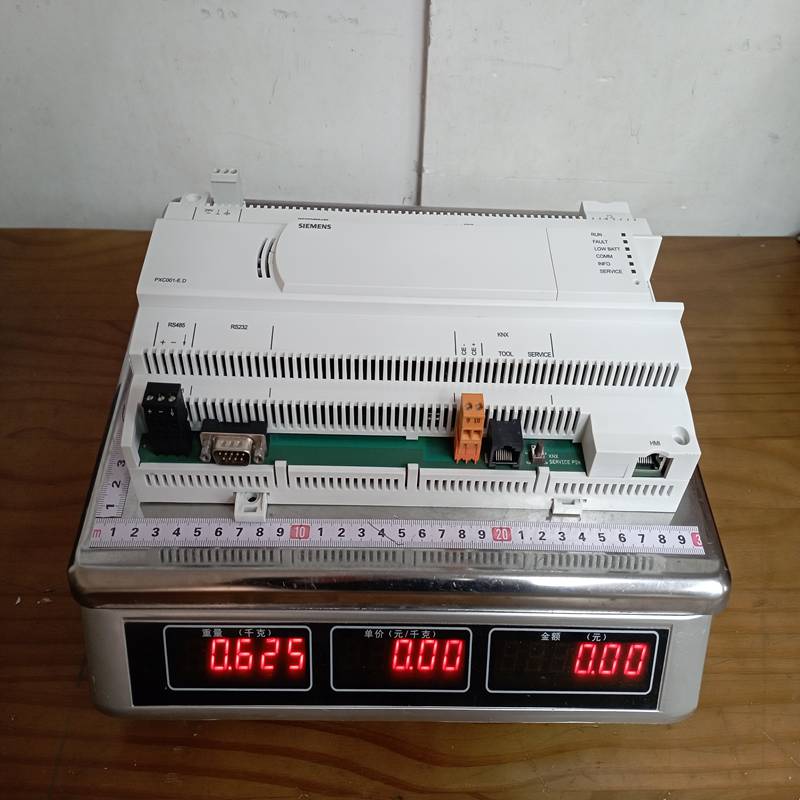

Product Dimensions：

The Siemens PXC001-E.D is a high-performance system controller belonging to the Desigo PX automation family. It is primarily used for integrating third-party devices and managing complex building automation tasks through decentralized control.

Here is the detailed breakdown of this product in English.

## Product Description

The PXC001-E.D serves as a versatile system controller that functions as a “manager” within a building automation and control system (BACS). Unlike standard controllers that handle local I/O, the PXC001-E.D is designed for system-level integration. It communicates over BACnet/IP and is frequently used as a gateway or a master controller to coordinate multiple sub-networks.

## Technical Specifications

## Product Advantages

• Scalability: Its modular design allows it to handle both small-scale integrations and large, complex building networks.

• Interoperability: Fully compliant with BACnet standards, ensuring seamless communication with hardware from other manufacturers.

• Reliability: Industrial-grade hardware designed for 24/7 operation in demanding plant room environments.

• Flexibility: It supports various integration platforms (e.g., Modbus, M-Bus) via extension modules or specialized firmware.

• Web-Enabled: Allows for remote monitoring and management through the Desigo platform.

## Key Applications

The PXC001-E.D is typically found in the following scenarios:

1. System Integration: Connecting third-party systems (like Chillers, Fire Alarms, or Power Meters) into the Desigo CC management station.

2. Network Routing: Acting as a BACnet router between different physical layers (e.g., BACnet/IP to BACnet MS/TP).

3. Complex Logic Management: Handling high-level control strategies that require data from multiple different controllers across the network.

4. Data Logging: Storing trend data and managing alarm schedules for centralized building functions.

## Important Considerations (Usage Notes)

• Firmware Compatibility: Ensure the firmware version matches your Desigo Insight or Desigo CC version to avoid communication lag.

• Power Supply: Use a dedicated transformer for AC 24 V to prevent electrical noise from affecting the processor.

• Network Security: Since it operates on BACnet/IP, it should be placed behind a secure firewall or within a dedicated Building Automation VLAN.

• Battery Maintenance: Check the internal battery periodically to ensure that the clock and volatile memory are preserved during power outages.
