Siemens HM6123 Power Supply Module

Description

Siemens HM6123 Power Supply Module

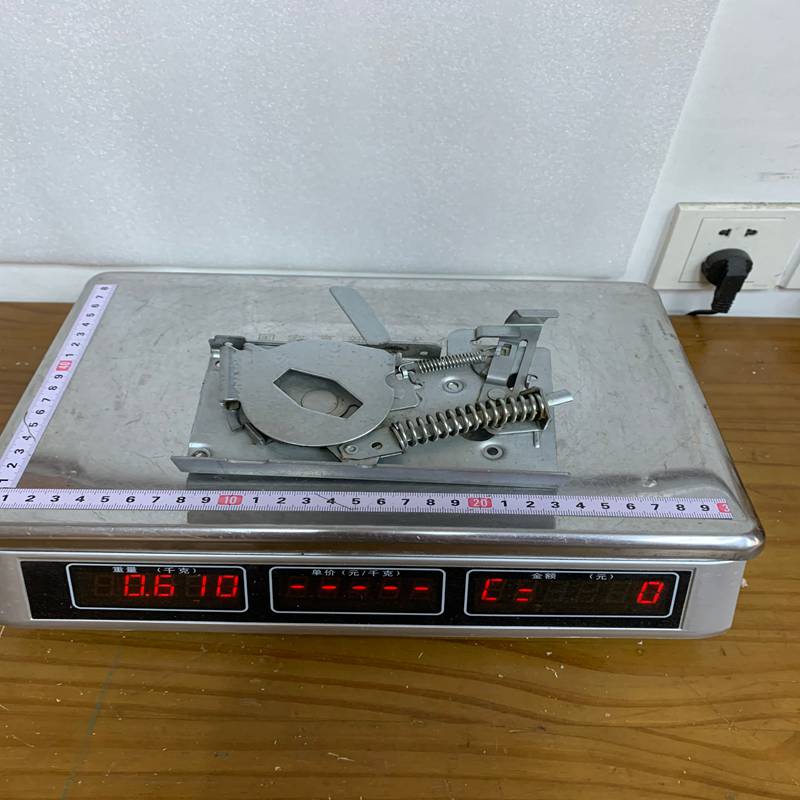

Product Dimensions：

The Siemens HM6123 is a high-quality Safety Switch Mechanism Assembly. It is designed as a replacement or core internal component for Siemens Heavy-Duty and General-Duty safety switches, specifically those utilized in demanding industrial or corrosive environments.

Product Detailed Description

The HM6123 is a 3-pole, single-throw mechanism assembly. It is primarily used within NEMA 4/4X (stainless steel) or NEMA 12 enclosures. This mechanism is engineered to handle current ratings ranging from 30A to 100A, providing a reliable physical disconnect for electrical circuits. It features a rugged design to ensure positive “make-or-break” contact, which is essential for personnel safety during equipment maintenance.

Technical Parameters

Product Advantages

• Durability: Built to withstand 10,000 operating cycles, ensuring a long service life even with frequent manual switching.
• Versatility: A “universal” mechanism within the Siemens line that covers multiple amperage ratings (30A–100A), simplifying spare parts inventory.
• Corrosion Resistance: Designed for use in stainless steel enclosures, making the internal assembly resistant to harsh environmental conditions.
• High Safety Standards: Provides a clear, visible gap when in the “OFF” position, ensuring the circuit is fully isolated for maintenance crews.

Important Considerations & Precautions

• Installation: This is a mechanism assembly, not a complete standalone switch. It must be installed within a compatible Siemens enclosure to meet safety and NEMA ratings.
• Maintenance: Periodically inspect the contact blades for signs of pitting or arcing, especially if the switch is operated under high inductive loads.
• De-energize Before Service: Always ensure the upstream power source is disconnected before attempting to replace or repair the internal HM6123 mechanism.
• Correct Torque: Ensure all terminal connections are tightened to the manufacturer’s specified torque to prevent overheating.

Product Applications

The Siemens HM6123 is typically found in:

• Electrical Distribution: Used as a service entrance or branch circuit disconnect in industrial plants.
• Harsh Environments: Often found in food processing, wastewater treatment, or chemical plants where NEMA 4X (watertight/corrosion-resistant) protection is required.
• Motor Disconnects: Serving as the local safety disconnect for motors and heavy machinery to comply with OSHA lockout/tagout (LOTO) requirements.
• Commercial Buildings: Integrated into HVAC systems and large-scale lighting control distributions.
