Siemens FDCIO222 Input/Output Module

Description

Siemens FDCIO222 Input/Output Module

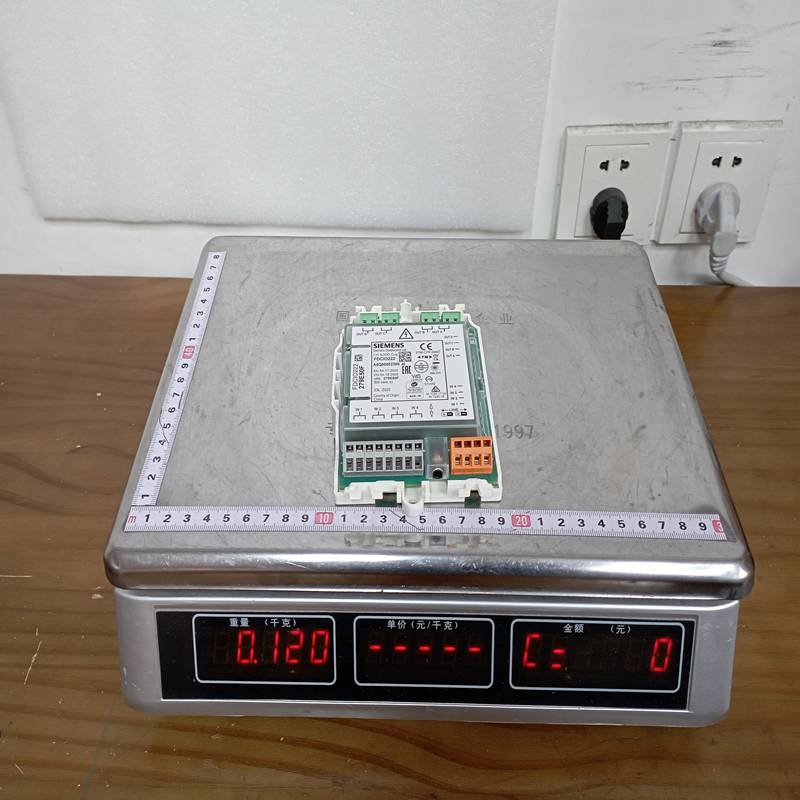

Product Dimensions：

The Siemens FDCIO222 is a sophisticated Input/Output (I/O) Module belonging to the Sinteso™ (FS20) and Cerberus™ PRO (FS720) fire detection product lines. It is designed to interface external equipment with the fire alarm control panel via the FDnet/C-NET loops.

Product Detailed Description

The FDCIO222 is a multi-functional transponder featuring 4 inputs and 4 outputs. It acts as a bridge between the fire safety system and third-party equipment (such as fire doors, ventilation systems, or fire extinguishing systems). Each channel can be independently configured, and the device includes an integrated line isolator to maintain loop integrity in the event of a short circuit.

Technical Parameters

Product Advantages

• Versatility: Combines inputs and outputs in a single device, reducing the number of loop addresses and hardware components required for complex installations.
• Highly Configurable: Inputs can be programmed for “normally open” or “normally closed” contacts, and can monitor for both status changes and line faults (short/open circuit).
• Enhanced Safety: The integrated line isolator ensures that a short circuit on one section of the loop does not disable the entire system.
• Status Monitoring: Equipped with LED indicators that provide immediate visual feedback for the status of each input and output, simplifying commissioning and troubleshooting.

Important Considerations & Precautions

• Load Limits: Do not exceed the 2A rating of the relay contacts. For high-power switching (e.g., large motors), use the FDCIO222 to trigger an external high-power contactor.
• Line Monitoring: If line monitoring is required for inputs, specific resistors (EOL) must be used at the end of the monitored line.
• External Power: While the module communication is loop-powered, the loads switched by the relays typically require their own external power source.
• Housing: If installed in damp or dusty environments, the module must be mounted in an FDCH221 or similar IP65-rated enclosure to prevent corrosion.

Product Applications

The FDCIO222 is typically used in fire safety automation:

• Fire Door Control: Monitoring the status of fire doors (open/closed) and triggering magnetic door holders to release during an alarm.
• Smoke Extraction: Interfacing with dampers and fans to manage smoke movement within a building.
• Extinguishing Systems: Activating fire suppression systems and receiving “discharged” status feedback.
• Elevator Control: Providing signals to elevator controllers to bring cars to the ground floor in the event of a fire.
• Fault Monitoring: Monitoring the fault contacts of external systems (like UPS or security panels) and reporting them back to the fire panel.
