SIEMENS A5E02424682-001 Control Circuit Board

Description

SIEMENS A5E02424682-001 Control Circuit Board

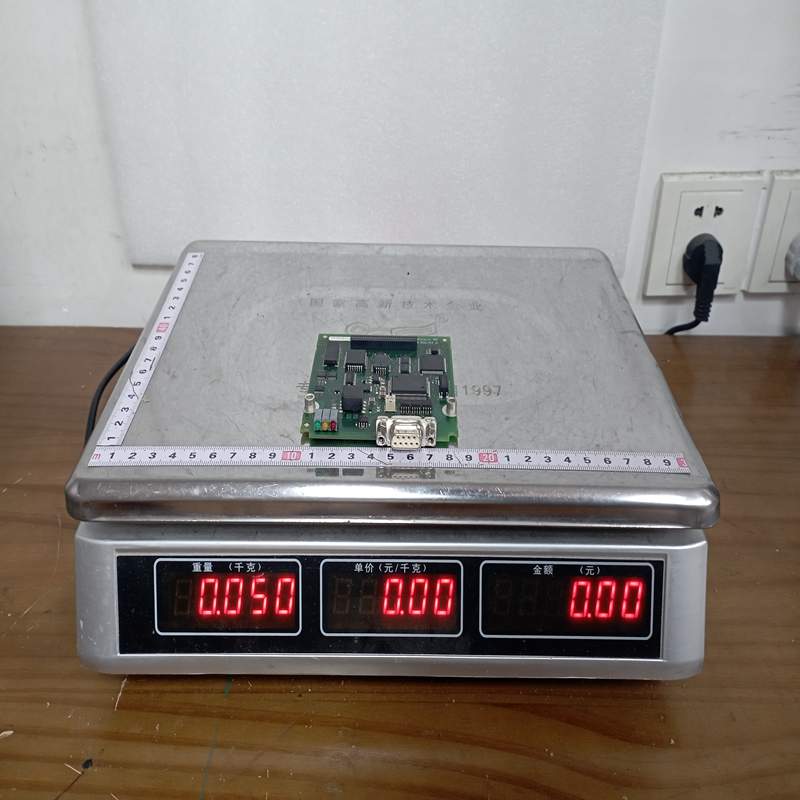

Product Dimensions：

The Siemens A5E02424682-001 (often listed alongside order number 6SE7090-0XX84-0FF5 / CBP2) is a specialized internal PROFIBUS Communication Module / Expansion Board designed for the SIMOVERT MASTERDRIVES series of variable frequency drives (VFDs).

Product Detailed Description

The A5E02424682-001 serves as a high-speed communication expansion board (specifically the CBP2 – Communication Board PROFIBUS). It allows Siemens MasterDrives (such as Vector Control or Motion Control units) to communicate directly with higher-level automation systems (like S7-300/400 PLCs or SCADA systems) over a PROFIBUS-DP network.

This board plugs directly into the control unit slot of the MasterDrive drive (such as the CUVC board), enabling cyclic exchange of control words, setpoints, status words, and actual values.

Technical Parameters

Product Advantages

• Seamless Automation Integration: Enables direct cyclic data transfer with Siemens SIMATIC PLCs via standard PROFIBUS-DP telegrams (PPO types).
• High-Speed Control: Supports fast baud rates up to 12 Mbps, ensuring real-time dynamic response for precise speed and torque control.
• Diagnostic Capabilities: Integrated LEDs on the board front give technicians instant feedback on communication status, bus faults, and power supply.
• Compact Plug-In Design: Installs internally within the MasterDrive enclosure without requiring external rail space or dedicated external power supplies.

Important Considerations & Precautions

• ESD Sensitivity: The board contains sensitive CMOS electronic components. Always use an anti-static wrist strap when handling or installing the module inside the drive.
• Power Down Before Installation: Never insert or remove the A5E02424682-001 board while the MasterDrive unit is powered on. Wait for the drive’s internal DC-bus capacitors to fully discharge before opening the unit.
• Bus Termination: Ensure the PROFIBUS network is properly terminated with end-of-line resistors at the physical first and last nodes on the bus to avoid signal reflection.
• Firmware / Parameter Setup: After physical installation, drive parameters (such as P053, P918 for station address, and P554 for control word source) must be configured via the drive PMU keypad or DriveES software to activate PROFIBUS control.

Product Applications

This board is widely used in legacy heavy-duty industrial drive systems:

• Metal Processing: Rolling mills, coilers, and wire-drawing machines using MasterDrives VC.
• Paper & Printing: Synchronized multi-drive conveyor lines and printing press roll controls.
• Material Handling & Cranes: Hoist motors and gantry drives requiring high-speed network coordination.
• Plastics & Extrusion: Main motor speed and torque regulation linked to central PLC controllers.
