SIEMENS 7PA3032-1AA00 Protective Relay Device

Description

SIEMENS 7PA3032-1AA00 Protective Relay Device

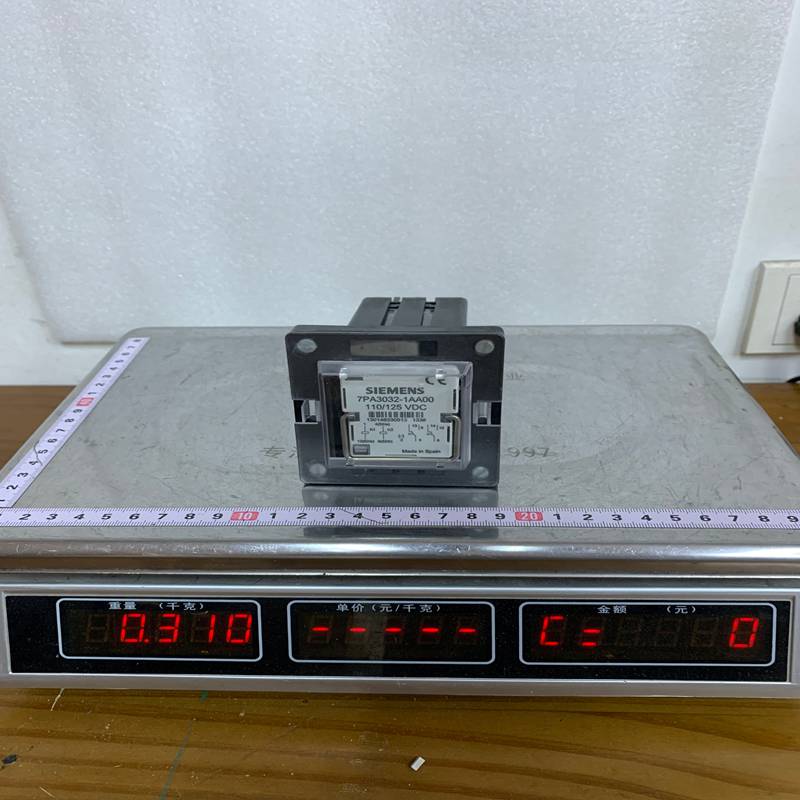

Product Dimensions：

The SIEMENS 7PA3032-1AA00 is a high-performance Fast-Acting Lock-Out Relay from the Siprotec 7PA30 series. It is specifically designed for power system protection and substation automation where high-speed switching and electrical stability are mandatory.

Product Detailed Description

The 7PA3032-1AA00 is a bistable (latching) relay with 4 Changeover (CO) contacts. Its primary function is to “lock out” a circuit breaker or other control elements after a fault has been detected by a protection relay. Because it is bistable, it maintains its last position (Tripped or Reset) even if the control power is lost, ensuring the system remains in a safe state until manual or electrical intervention occurs.

Technical Parameters

Product Advantages

• Ultra-High Speed: With a pick-up time of less than 8 milliseconds, it ensures that fault conditions are isolated almost instantly, protecting expensive primary equipment like transformers.
• Bistable Security: The mechanical latching mechanism prevents accidental resetting during voltage dips or complete power failures.
• Low Power Consumption: Being bistable, the relay only consumes power during the short duration of the “set” or “reset” pulse, reducing the thermal load on the control cabinet.
• High Breaking Capacity: Capable of making and breaking significant DC inductive loads common in high-voltage substation environments.

Important Considerations & Precautions

• Pulse Duration: The control signal (Set/Reset) should be a pulse. While many models have internal cut-off contacts, ensure your control logic does not keep the coil energized indefinitely.
• Socket Selection: This is a plug-in module. Ensure you use the correct 7XP90 series base/socket for proper DIN rail or flush mounting and secure electrical connection.
• Polarity: Since it is a DC-operated relay, verify the polarity of the +/- 110V DC supply to avoid failure to trip or damage to internal diodes (if equipped).
• Maintenance: While these relays are designed for millions of operations, the contacts should be checked periodically in critical safety loops for signs of pitting or carbon buildup.

Product Applications

The 7PA3032-1AA00 is a staple in high-voltage (HV) and medium-voltage (MV) protection schemes:

• Circuit Breaker Lock-Out: Preventing a circuit breaker from reclosing after a serious fault (like a transformer differential trip) until an operator inspects the equipment.
• Signal Multiplication: Taking a single trip signal from a protection relay and multiplying it into four independent, isolated dry contacts to trip multiple breakers and trigger alarms simultaneously.
• Interlocking Logic: Used in complex substation interlocking schemes where a specific state must be “remembered” regardless of power status.
• Industrial Power Plants: Protection of large generators and motors in heavy industrial sites (Steel, Oil & Gas).
