Siemens 6SL3244-0SA00-1AA1 Inverter Control Unit

Description

Siemens 6SL3244-0SA00-1AA1 Inverter Control Unit

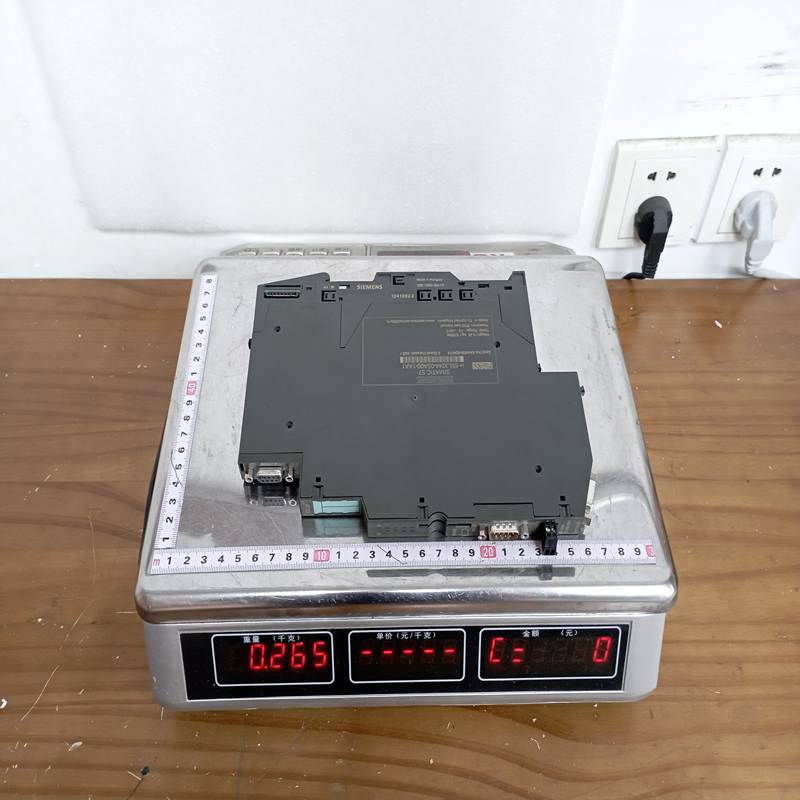

Product Dimensions：

The Siemens 6SL3244-0SA00-1AA1 is a specific Control Unit (CU240E-2) belonging to the SINAMICS G120 modular frequency inverter family. It serves as the “brain” of the drive system, providing control logic, I/O interfaces, and safety functions.

Product Detailed Description

The CU240E-2 is designed for standard applications in general machinery construction, such as conveyors, fans, and pumps. This specific model is an E-version (Economic) that features integrated safety functions and supports communication via RS485 (USS and Modbus RTU protocols). It must be paired with a Power Module (PM) to form a complete functional inverter.

Technical Parameters

Product Advantages

• Integrated Safety: Comes standard with the Safe Torque Off (STO) function, which prevents the motor from restarting unexpectedly, complying with SIL 2 / PL d standards.
• Modular Flexibility: Because it is a modular component, you can swap the Control Unit without replacing the Power Module, simplifying upgrades or maintenance.
• Vector Control: Offers sophisticated sensorless vector control (SLVC) for high torque accuracy and excellent dynamic performance even at low speeds.
• Easy Commissioning: Features a slot for an SD card to clone parameters and can be easily configured using the Intelligent Operator Panel (IOP-2) or STARTER software.

Important Considerations & Precautions

• Protocol Limitation: This specific model (-1AA1) uses RS485. If your system requires PROFINET or PROFIBUS, you would need the -1FA1 or -1PA1 models instead.
• I/O Terminals: When wiring, ensure that the 24V DC supply is stable. Improper grounding of the analog inputs can lead to signal noise and unstable motor speeds.
• Cooling: While the Control Unit itself generates little heat, ensure the overall drive assembly has adequate ventilation according to the Power Module’s specifications.
• Firmware: If replacing an older unit, check that the firmware version is compatible with your existing PLC project files.

Product Applications

The CU240E-2 is highly versatile and used in:

• Conveyor Systems: Managing speed and ramp-up/down profiles for belt or roller conveyors.
• Pumps & Fans: Utilizing the quadratic V/f curve to optimize energy consumption in centrifugal loads.
• Compressors: Providing high starting torque and protection against overloads.
• Simple Processing: Ideal for mixers, agitators, and basic industrial machinery that requires reliable speed control without a complex fieldbus.
