Siemens 6SL3244-0SA00-1AA1 Frequency Converter Module

Description

Siemens 6SL3244-0SA00-1AA1 Frequency Converter Module

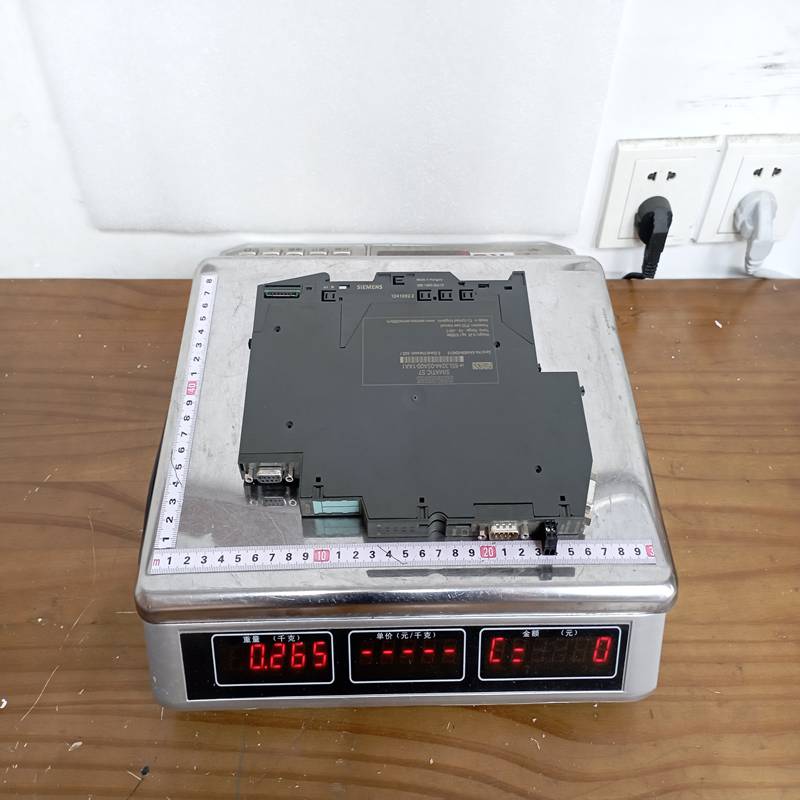

Product Dimensions：

The Siemens 6SL3244-0SA00-1AA1 is a high-performance Control Unit (CU240E-2) belonging to the SINAMICS G120 modular inverter family. In the SINAMICS G120 framework, the inverter is split into a Control Unit (the brains) and a Power Module (the brawn), and this specific unit manages the closed-loop control functions.

Product Detailed Description

The CU240E-2 is an economic, sensorless vector control unit designed for general-purpose applications. The “E” designation stands for Economic, indicating it provides essential functions with a optimized I/O count, while the “2” signifies the second generation of this hardware. It interfaces natively with a wide range of SINAMICS Power Modules (such as the PM240 or PM240-2) to drive standard asynchronous (induction) motors.

Technical Parameters

Product Advantages

• Integrated Safety (STO): Features a hardware-based Safe Torque Off function as standard, eliminating the need for external safety relays to safely isolate motor torque.
• Cost-Effective Modularity: Because it splits the control intelligence from the power section, you can upgrade or replace the control unit without altering the heavy power wiring.
• Flexible Communcation: Built-in USS and Modbus RTU protocols permit easy serial integration with Siemens S7-1200/1500 PLCs or third-party controllers without adding expensive communication cards.
• Sensorless Vector Control: Delivers precise speed and torque control even without an external encoder, reducing field components and potential points of failure.
• MicroSD Slot: Includes a slot for an optional memory card, allowing for quick parameter cloning, storage, and effortless replacement during servicing.

Important Considerations & Precautions

• Protocol Limitations: This model utilizes Modbus RTU / USS. If your network infrastructure relies on PROFINET or PROFIBUS, you will need a different variant (e.g., CU240E-2 PN or CU240E-2 DP).
• Firmware Version: When replacing a failed module, verify the firmware version. Newer versions may require a quick update or minor adjustments in the engineering software (STARTER or TIA Portal).
• Terminal Wiring Clearance: Ensure the control cables are separated from the main motor and power supply lines to minimize electromagnetic interference (EMI) on the analog inputs.
• Safety Reset: Note that after an STO event is triggered, the system requires an explicit acknowledgment reset signal to resume normal operation.

Product Applications

The 6SL3244-0SA00-1AA1 is ideally suited for standard applications across a multitude of machinery segments:

• Conveyor Belts: Precise speed control and acceleration/deceleration ramping for material handling.
• Pumps and Fans: Variable torque applications where energy savings and basic closed-loop control (PID) are essential.
• Compressors: Maintaining pressure control using integrated analog inputs connected to external pressure transducers.
• Packaging and Textiles: Managing auxiliary axes or simple transport lines within manufacturing machines.
