SIEMENS 6SL3244-0SA00-1AA0 Drive Control Module

Description

SIEMENS 6SL3244-0SA00-1AA0 Drive Control Module

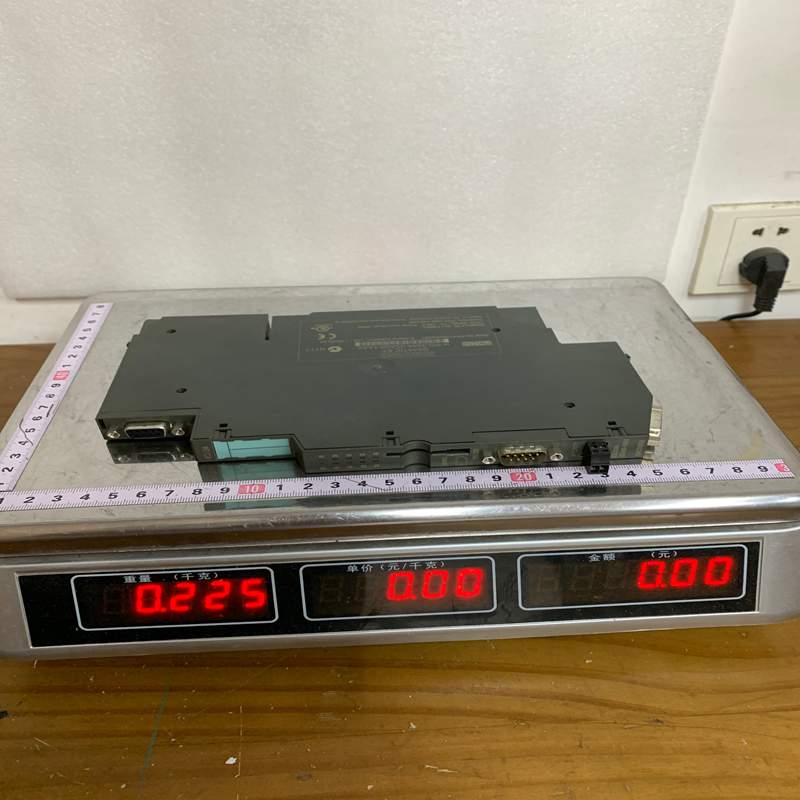

Product Dimensions：

The Siemens 6SL3244-0SA00-1AA0 is a highly versatile Control Unit (CU240E) belonging to the SINAMICS G120 modular inverter family. In the Siemens modular drive system, the Control Unit acts as the “brain,” handling all open-loop and closed-loop control functions, communication, and basic monitoring, while being paired with a separate Power Module (PM).

Product Detailed Description

The 6SL3244-0SA00-1AA0 belongs to the CU240E series, where the “E” stands for “Economic” or “Standard.” It is designed for standard applications with variable-speed drives. This specific module interfaces directly with a Power Module and provides basic integrated safety functions (Safe Torque Off – STO) and native serial communications.

Technical Parameters

Product Advantages

• Modular Cost Savings: Because it is a decoupled control unit, you can replace or upgrade the control intelligence without replacing the power electronics (Power Module), significantly lowering lifetime maintenance costs.
• Integrated Safety (STO): Features built-in Safe Torque Off (SIL 2 / PL d). This safely removes power to the motor without needing external safety contactors, protecting personnel and machinery.
• Sensorless Vector Control: Delivers precise speed regulation and high dynamic torque performance without requiring a motor encoder.
• Versatile I/O Setup: Offers a rich mix of analog and digital inputs/outputs, allowing it to easily handle complex local control tasks without requiring an expensive PLC interface for simple operations.

Important Considerations & Precautions

• Modular Assembly: This is a Control Unit only. It cannot operate by itself and must be clicked into a compatible SINAMICS Power Module (such as the PM240 or PM240-2).
• Operator Panel: It does not come with an integrated screen. For commissioning and parameter modification, you will need an external BOP-2 (Basic Operator Panel), IOP-2 (Intelligent Operator Panel), or the Startdrive software via a PC link.
• Communication Protocol: This unit utilizes standard serial protocols (Modbus RTU / USS). If your network architecture requires PROFINET or PROFIBUS, you must select a different variant (e.g., CU240E-2 PN or CU240E-2 DP).
• Terminal Wiring: Ensure the control voltage cabling is separated from the high-voltage motor cables to minimize Electromagnetic Interference (EMI) which can cause erratic control signaling.

Product Applications

The CU240E control unit is ideal for a massive array of standard variable-speed applications:

• Conveyor Technology: Smooth acceleration and deceleration control for baggage handling, packaging lines, and production belts.
• Pumps and Fans: Ideal for centrifugal pumps, radial fans, and compressors utilizing quadratic V/Hz curves to optimize energy consumption.
• Material Handling: Simple hoisting units, mixers, agitators, and winding mechanisms.
• Gate and Door Drives: Precise control of opening and closing dynamics in industrial automation environments.
