Siemens 6SL3244-0SA00-1AA0 Control Unit

Description

Siemens 6SL3244-0SA00-1AA0 Control Unit

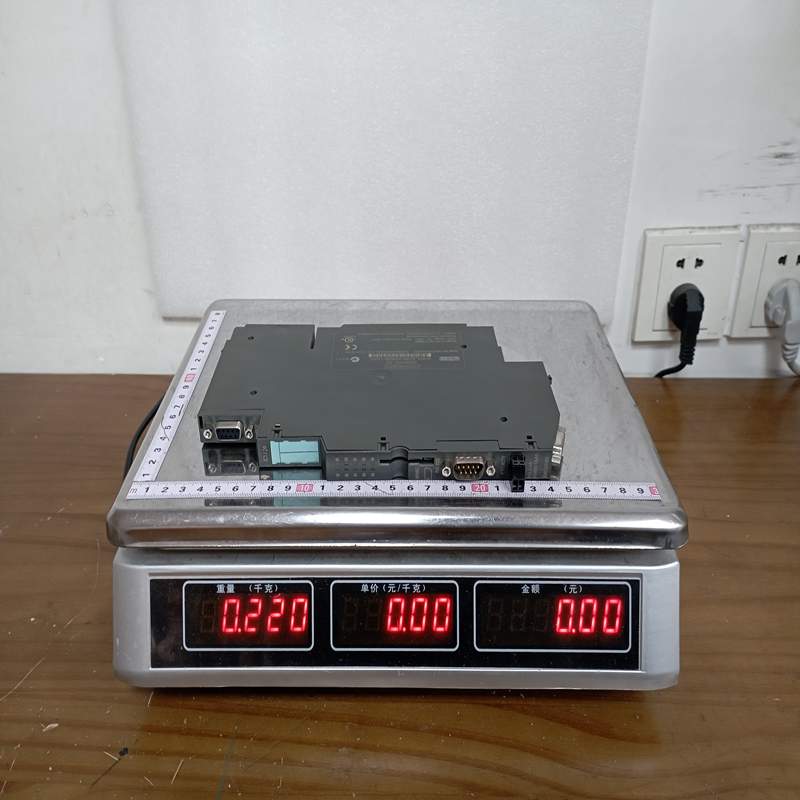

Product Dimensions：

The Siemens 6SL3244-0SA00-1AA0 is a high-performance Control Unit belonging to the SINAMICS G120 modular frequency inverter family. Specifically, this model is the CU240E-2 Control Unit, designed to manage the closed-loop control functions, communication, and I/O interface of the drive system when combined with a compatible G120 Power Module.

Product Detailed Description

The SINAMICS G120 drive system is uniquely modular, consisting of a Control Unit (CU) and a Power Module (PM). The 6SL3244-0SA00-1AA0 (CU240E-2) handles all the processing intelligence.

It features integrated safety functions, specifically Safe Torque Off (STO), which prevents the motor from starting unexpectedly. The “E” in the model name stands for “Standard” (Essential/Economical) applications, making it a highly cost-effective yet feature-rich choice for general-purpose machinery.

Technical Parameters

Product Advantages

• Modular Versatility: Because it is separate from the Power Module, you can easily upgrade the control unit or swap power capacities without replacing the entire drive system.
• Integrated Safety (STO): Built-in Safe Torque Off (SIL 2 / PL d / Cat. 3) simplifies machine safety designs and reduces the need for external safety relays.
• Flexible Communication: Supports industry-standard Modbus RTU and USS protocols out of the box, allowing easy integration into existing PLC networks.
• USB Commissioning: Features a micro-USB port that allows engineers to configure, clone, and diagnose the drive quickly using a laptop and Siemens STARTER or Startdrive software.
• Energy Efficiency: Implements advanced flux current control (FCC) to automatically optimize motor magnetization, reducing energy consumption under partial loads.

Important Considerations & Precautions

• Power Module Compatibility: The CU240E-2 is designed for G120 Power Modules (like PM240-2). Ensure the firmware of the Control Unit is compatible with the power module hardware revision.
• Memory Card Backup: While parameters can be stored internally, it is highly recommended to use an optional BOP-2 (Basic Operator Panel) or an SD card (MMC) to back up parameters for fast field replacement.
• Safety Reset: If the STO safety function is triggered, the drive will coast to a stop. Proper safety evaluation must be performed before resetting the STO input to restart the motor.
• Signal Shielding: To prevent electromagnetic interference (EMI) from corrupting analog or communication signals, always run control cables in shielded trays away from high-power motor cables.

Product Applications

The CU240E-2 is highly adaptable and ideal for applications requiring speed or torque control without a speed encoder:

• Pumps and Fans: Ideal for centrifugal pumps, radial/axial fans, and compressors where energy savings via variable speed control is critical.
• Conveyor Systems: Perfect for belt conveyors, roller tracks, and baggage handling systems requiring smooth acceleration and deceleration ramps.
• General Machinery: Commonly integrated into mixers, agitators, grinders, and packaging machines where basic integrated safety is necessary.
