Siemens 6SE7090-0XX84-0AB0 Main Control Board

Description

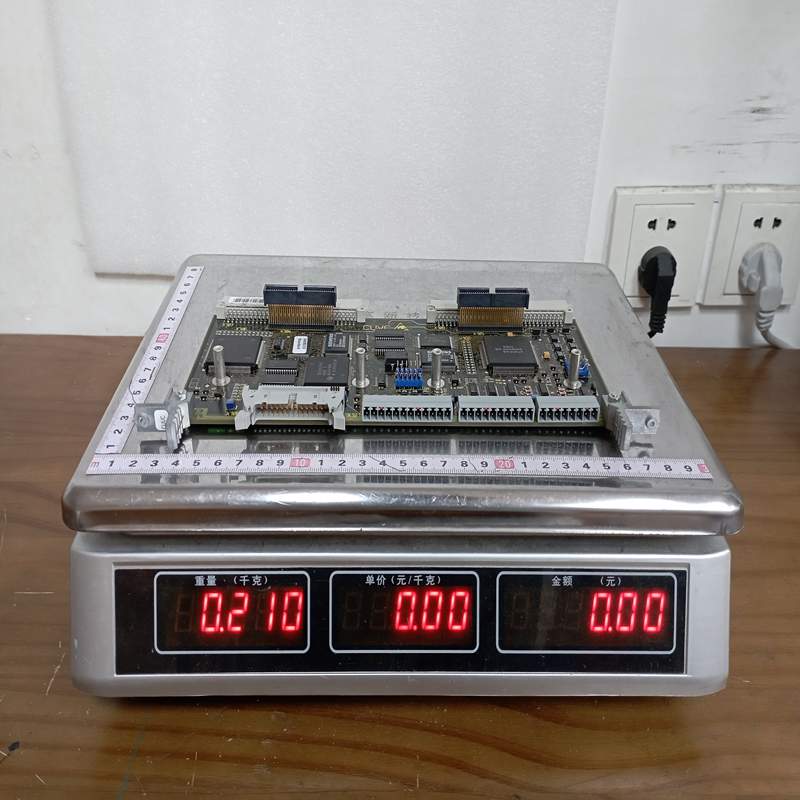

Siemens 6SE7090-0XX84-0AB0 Main Control Board

Product Dimensions：

The Siemens 6SE7090-0XX84-0AB0 is a specialized control interface component belonging to the SIMOVERT MASTERDRIVES family of variable frequency drives (VFDs) and vector control drive systems. It functions as an internal electronic accessory card designed to process control signals, drive feedback, or system communications within the drive subrack.

Product Overview

The 6SE7090-0XX84-0AB0 module installs directly into dedicated control slots or option boards within Siemens MASTERDRIVES frequency converters. It serves as an interface between central processing units (such as the CUVC or CUSVC control boards) and external peripherals, expansion racks, or internal drive power blocks.

Technical Specifications

Product Advantages

• Native System Integration: Engineered specifically for the MASTERDRIVES architecture, ensuring low signal latency and fast response times for closed-loop vector control.
• Compact & Rugged: Installs internally inside the VFD enclosure, saving valuable panel space and eliminating external inter-module cabling.
• High Noise Immunity: Designed to withstand high electromagnetic interference (EMI) typical of high-power inverter environments.
• Modular Serviceability: Allows for straightforward replacement during system maintenance without replacing the complete drive assembly.

Important Considerations & Warnings

• Legacy Component: The SIMOVERT MASTERDRIVES family is a mature/legacy product series. Ensure replacement boards are acquired from certified suppliers and tested for operational integrity.
• ESD Sensitivity: The printed circuit board contains sensitive CMOS electronics. Always wear a grounded anti-static wrist strap when handling or installing the board.
• Power Isolation: Never insert or remove this interface board while the drive main supply or 24V DC auxiliary power is connected. High DC-link voltages (>600 V DC) present severe electrical hazards.
• Firmware Matching: Verify that the revision level of the 6SE7090 board is compatible with the main control board firmware (CUVC/CUSVC) to prevent initialization faults.

Product Applications

• Heavy Manufacturing: Used in MASTERDRIVES units controlling steel mill rolling stands, coilers, and heavy processing lines.
• Paper & Converting Lines: Facilitating dynamic torque and speed synchronization across multi-axis web handling systems.
• Hoists & Cranes: Supporting vector-controlled drive units in overhead cranes and material handling elevators.
• Legacy Drive Retrofits: Serving as a crucial maintenance spare part to keep existing MASTERDRIVES installations running reliably without costly full-plant modernization.
