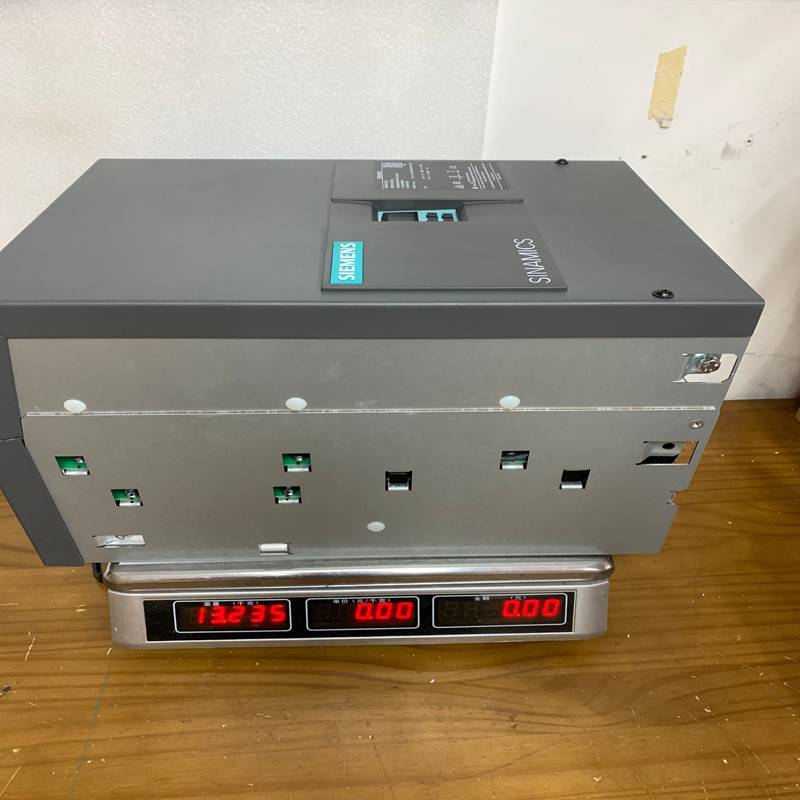

Siemens 6RA8000-0MV62-0AA0-Z DC Speed ​​Controller

Description

Siemens 6RA8000-0MV62-0AA0-Z DC Speed ​​Controller

Product Dimensions：

The Siemens 6RA8000-0MV62-0AA0-Z is a high-performance DC converter from the SINAMICS DCM (DC Master) series. This series represents the latest generation of Siemens DC drive technology, designed to provide high precision, reliability, and seamless integration into modern automation environments.

Product Detailed Description

The 6RA8000-0MV62-0AA0-Z is a sophisticated DC power converter used to control the speed and torque of DC motors. The SINAMICS DCM is a “base unit” that combines the Open-Loop and Closed-Loop control units with the power section in a single, compact device. The -Z suffix indicates that the unit includes specific option codes (such as specialized firmware, communication modules, or hardware coatings) that were customized at the time of order.

Technical Parameters

Product Advantages

• Scalability: The SINAMICS DCM is highly modular. It can be easily expanded with additional CUDs for complex technological tasks or redundant operations.
• Energy Efficiency: As a 4-Quadrant drive, it can feed energy back into the power grid during motor braking (regenerative braking), significantly reducing energy costs.
• Integrated Intelligence: Features built-in functions for tension control, winder applications, and high-speed positioning without needing an external PLC for basic logic.
• User-Friendly Interface: Compatible with the BOP20 (Basic Operator Panel) and AOP30 (Advanced Operator Panel) for fast commissioning and real-time diagnostics.
• Tia Portal Integration: Fully compatible with the Siemens TIA Portal environment, allowing for streamlined engineering and data consistency.

Important Considerations (Precautions)

• Option Codes (-Z): Because this is a “Z” model, you must check the original packing list or nameplate for specific option codes (e.g., S01, G00, L01). These options define the unique configuration of the unit.
• Harmonic Distortion: High-power DC drives can introduce harmonics into the AC line. It is highly recommended to use line reactors and EMI filters to protect sensitive upstream equipment.
• Field Current Matching: Ensure the field output parameters of the converter are correctly matched to the motor’s field winding specifications to prevent motor runaway or overheating.
• Cooling Clearance: Maintain strict adherence to the specified clearances above and below the unit to ensure the forced-air cooling system can dissipate heat effectively.

Product Applications

The 6RA8000-0MV62-0AA0-Z is typically used in heavy-duty industrial applications where high torque at low speeds is required:

• Metal Industry: Rolling mills, wire drawing machines, and extruders.
• Mining & Cement: Large conveyors, crushers, and kiln drives.
• Paper & Plastics: Calenders, winders, and coating machines.
• Lifts and Cables: Cable cars, elevators, and crane hoist mechanisms.
• Test Stands: Dynamic dynamometers for engine or transmission testing.
