SIEMENS 6GT2003-1AA00 RFID Reader Antenna

Description

SIEMENS 6GT2003-1AA00 RFID Reader Antenna

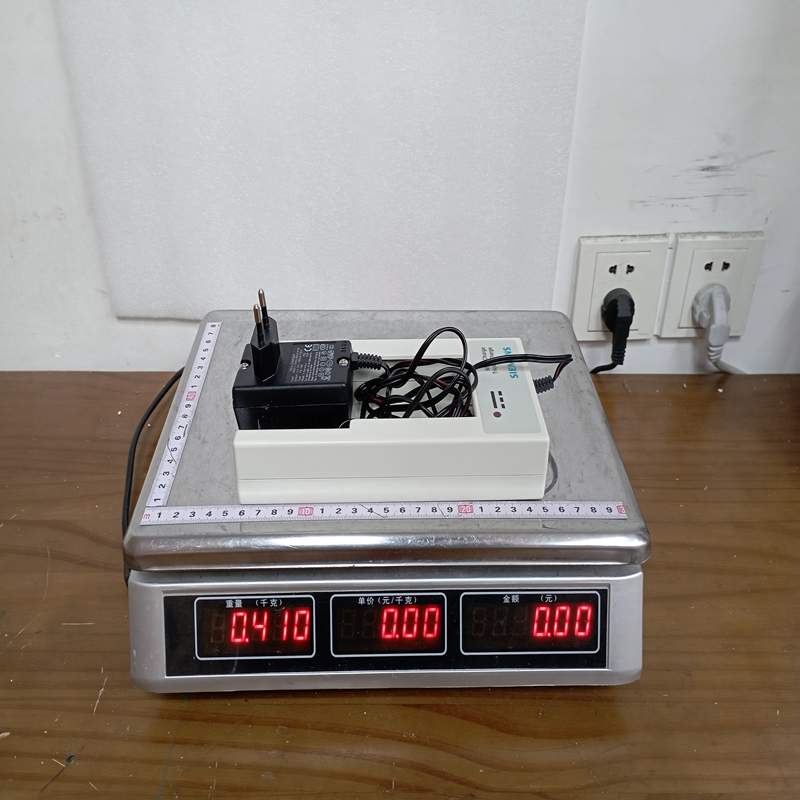

Product Dimensions：

The Siemens 6GT2003-1AA00 is a mobile handheld terminal or reader/writer hardware module within the Siemens SIMATIC RF300 / MOBY E series of industrial RFID systems. It is primarily used for data acquisition and wireless tag reading/writing on industrial automated production lines.

Product Details

Functional Definition: This device is part of the Siemens SIMATIC identification system (RFID), designed to provide efficient, contactless, industrial-grade tag data transmission.
Communication Integration: Capable of direct data exchange with Siemens PLC systems (such as S7-1200, S7-1500, and S7-300) and host computers.
Protection Standards: Features a robust industrial housing design, capable of withstanding harsh industrial environments characterized by dust, moisture, and mechanical vibration.

Key Technical Parameters

Parameter Item Technical Specification
Product Order Number 6GT2003-1AA00
Product Series SIMATIC RF / MOBY System
Operating Frequency 13.56 MHz (HF – High Frequency)
Interface Type Dedicated serial/communication interface (RS232/RS422 or compatible connectors)
Operating Temperature Range -20°C to +70°C
Protection Rating IP65 / IP67 (Industrial-grade dust and water protection)
Power Supply 24V DC (Typical rated range: 18V – 30V)

Product Advantages

High Reliability and Interference Immunity: Utilizes industrial-grade metal shielding and electromagnetic interference (EMI) resistance technology, ensuring stable data reading and writing even in strong electromagnetic environments.
Rugged and Durable: High protection rating design offers resistance to drops, vibration, dust, and water, thereby reducing on-site maintenance costs.
Seamless Automation Integration: Configuration can be quickly completed via Siemens TIA Portal or STEP 7, reducing development and commissioning time.
High-Speed ​​Data Transmission: Supports high-speed byte read/write operations, meeting the strict real-time data requirements of high-speed production lines. Installation and Maintenance Precautions

Installation Environment: Avoid mounting the read/write antenna directly against a metal surface without a gap; metal causes attenuation of the antenna’s magnetic field, thereby reducing the effective read/write range. It is recommended to maintain the specified metal clearance zone.
Power Supply and Grounding: Ensure the use of an industrial-grade, voltage-stable 24V DC power supply and implement proper system grounding to prevent equipment damage from static electricity or power surges.
Tag Compatibility: Ensure that the RFID tags used are fully compatible with the reader/writer terminal in terms of communication frequency (13.56 MHz) and protocol.
Lightning and Surge Protection: If used in semi-outdoor environments, communication and power cables must be equipped with appropriate surge protection devices.

Typical Application Scenarios

Automotive Manufacturing Lines: Used for vehicle body skid positioning, as well as real-time tracking and recording of process data on welding and painting lines.
Smart Warehousing and Logistics: Automated pallet identification, material sorting, and automated data collection for inbound and outbound operations.
Industrial Assembly Line Management: Identifying process instructions for different products on mixed-model production lines to enable flexible, automated, and customized manufacturing.
Tool and Equipment Management: Full lifecycle tracking and maintenance logging for high-value molds, tooling, and fixtures.
