Siemens 6GK1500-0FC10 PROFIBUS‑DP Bus Connector

Description

Siemens 6GK1500-0FC10 PROFIBUS‑DP Bus Connector

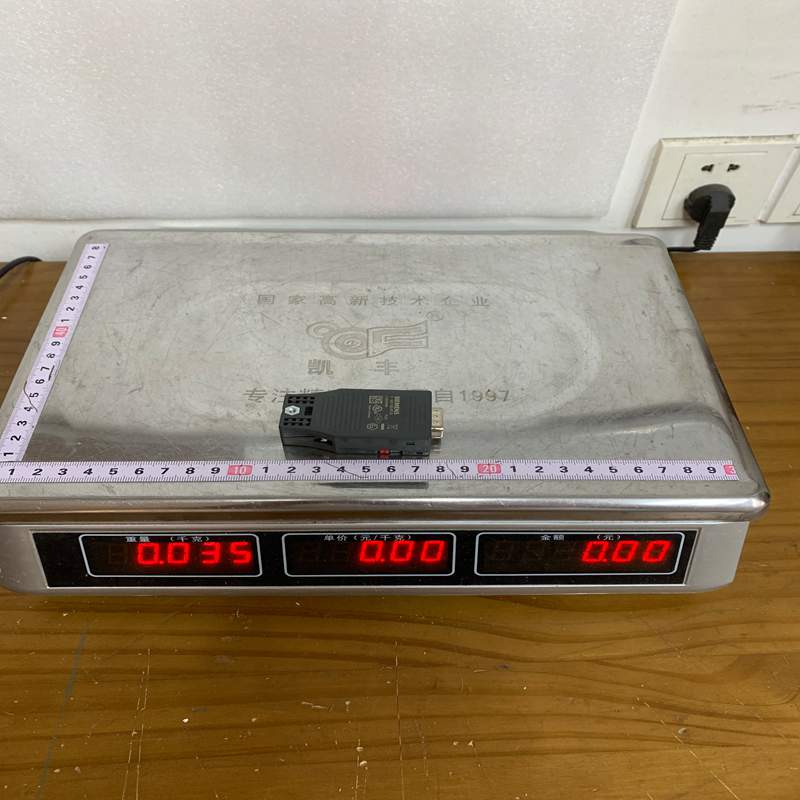

Product Dimensions：

The Siemens 6GK1500-0FC10 is a PROFIBUS FastConnect RS-485 bus connector engineered for high-speed, reliable node connections in industrial automation networks. It features a 180^\circ straight cable outlet and insulation-displacement contacts for fast assembly without stripping individual wires.

Technical Specifications

Key Advantages

• Fast & Error-Free Assembly: FastConnect (FC) technology enables direct connection of 2-core PROFIBUS copper cables using a simple stripping tool without needing to strip individual core insulation.
• Integrated Bus Termination: Features an easily accessible slide switch to engage or disengage the bus terminating resistor; toggling the switch automatically disconnects downstream network segments to simplify isolation testing.
• Compact 180^\circ Design: Straight cable entry saves lateral panel space and provides clean routing in narrow terminal boxes, CPUS, or decentralized I/O racks.
• High EMC Shielding: Rugged industrial housing provides integrated strain relief and effective grounding against electromagnetic interference.

Important Considerations & Precautions

• PG Socket Limitation: The 6GK1500-0FC10 does not feature a PG (Programming Device) pass-through socket. If you require simultaneous connection of a programming cable or HMI without unplugging the bus, select variant 6GK1500-0FC00 instead.
• Cable Stripping Tool: To maintain reliable contacts, use the dedicated Siemens FastConnect Stripping Tool (6GK1905-6AA00) to ensure precise outer jacket and shield stripping lengths.
• Termination Rule: Ensure the terminating resistor switch is turned ON at the physical start and end nodes of a PROFIBUS segment, and OFF at all intermediate nodes.
• Power-Dependent Termination: The terminating resistor relies on 5 V DC power supplied by the host device’s Sub-D port (pins 5 and 6); powering down an end device will disable active termination for that segment unless an active bus terminator is used.

Product Applications

• PLC Network Interconnection: Connecting SIMATIC S7-300/400/1200/1500 controllers to PROFIBUS DP or MPI subnets.
• Decentralized I/O Modules: Interfacing distributed field devices (e.g., ET 200M, ET 200SP) to central control systems.
• Drive Integration: Linking SINAMICS or MASTERDRIVES variable frequency drives to fieldbus control networks.
