Siemens 6ES7972-0BA52-0XA0 Bus Connector

Description

Siemens 6ES7972-0BA52-0XA0 Bus Connector

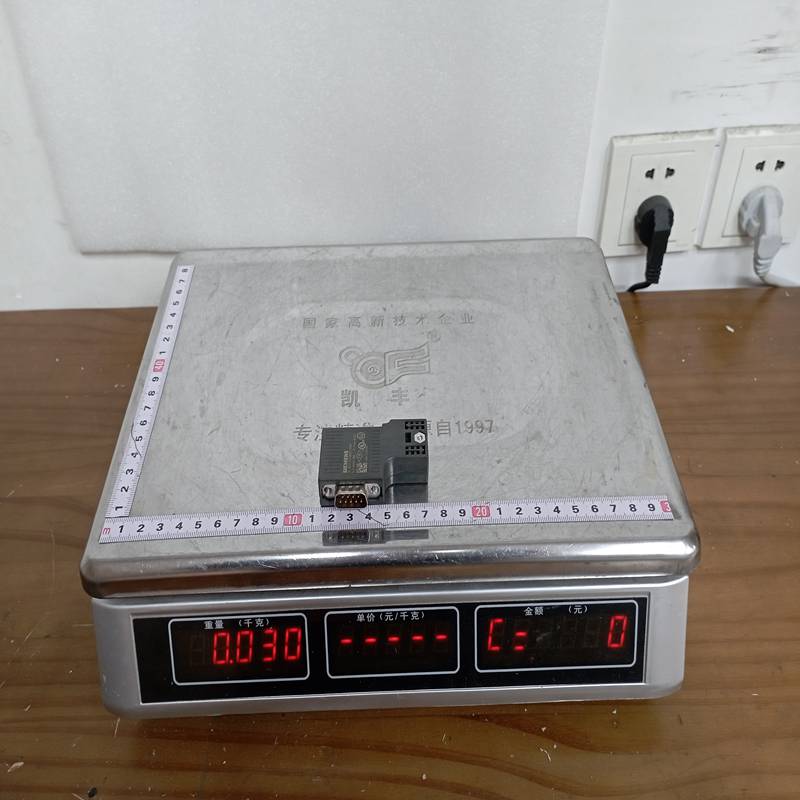

Product Dimensions：

The Siemens 6ES7972-0BA52-0XA0 is a specialized PROFIBUS Bus Connector from the SIMATIC S7 accessory range. It is used to connect PROFIBUS nodes (such as PLCs, HMIs, or I/O modules) to the bus cable, providing a reliable and standardized physical interface.

Product Detailed Description

This specific model is a FastConnect (FC) bus connector with a 90-degree cable outlet. It features an integrated terminating resistor and an additional D-Sub socket, which allows for the connection of a programming device (PG) or an HMI without interrupting the existing bus communication.

Technical Parameters

Product Advantages

• FastConnect Technology: The insulation displacement system allows for quick and easy wiring. You do not need to strip the individual wires, which reduces installation time by up to 50% and minimizes wiring errors.
• Integrated PG Socket: The additional female port on the back is a major advantage for maintenance; it allows technicians to plug in a laptop for diagnostics while the system is running.
• Visible Termination Switch: The switch for the terminating resistor is clearly visible and easy to operate. When the resistor is “ON,” the outgoing bus cable is disconnected, which is helpful for troubleshooting segments.
• Compact 90° Design: The right-angle cable entry is ideal for shallow control cabinets or modules where space in front of the PLC is limited.

Important Considerations & Precautions

• Termination Logic: Only the first and the last physical nodes on a PROFIBUS segment should have the terminating resistor switched to “ON.” All intermediate nodes must be “OFF.”
• Cable Stripping: Use the Siemens FastConnect Stripping Tool to ensure the outer jacket and shield are cut to the exact lengths required for the connector’s internal clamps.
• Shielding: Ensure the cable shield makes firm contact with the metal clamp inside the connector to maintain electromagnetic compatibility (EMC) and prevent data corruption.
• Tightening: Secure the two mounting screws to the D-sub port of the PLC to ensure a vibration-proof connection and proper grounding.

Product Applications

The 6ES7972-0BA52-0XA0 is a standard component in Siemens automation environments:

• SIMATIC S7 Systems: Connecting S7-300 or S7-400 CPUs to distributed I/O like the ET 200M.
• Drive Systems: Interfacing Siemens SINAMICS drives with a central controller via PROFIBUS DP.
• HMI Connectivity: Linking operator panels to the PLC network while maintaining a port for local programming.
• Factory Automation: Used in any industrial network requiring high-speed RS 485 communication between sensors and controllers.
