Siemens 6ES7361-3CA01-0AA0 Interface Module

Description

Siemens 6ES7361-3CA01-0AA0 Interface Module

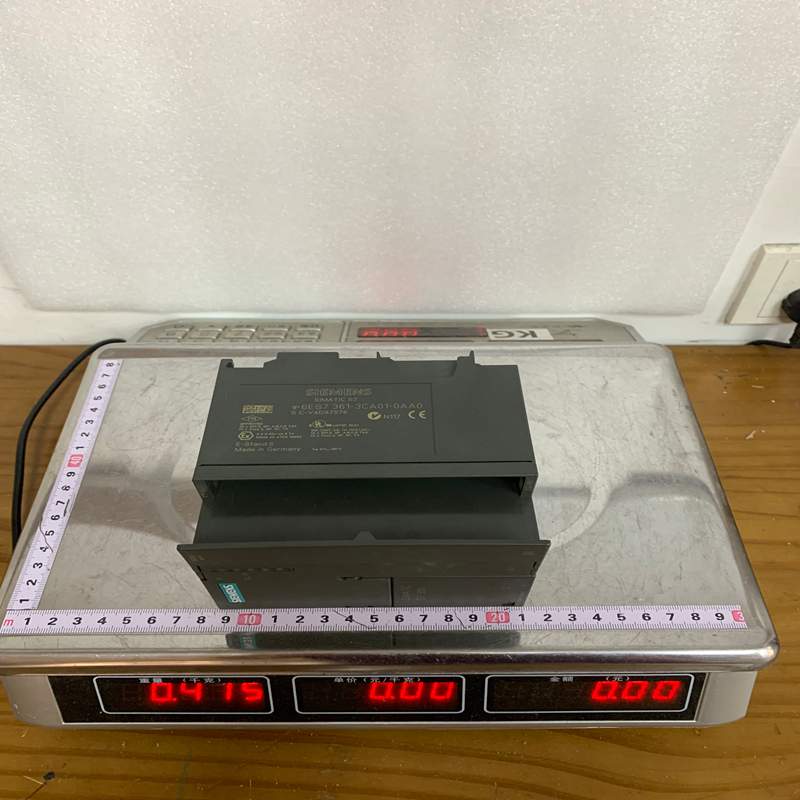

Product Dimensions：

The Siemens 6ES7361-3CA01-0AA0 is an Interface Module (IM 361) belonging to the SIMATIC S7-300 modular controller series. It is specifically designed to enable multi-tier system expansion by connecting expansion racks (ER) to a central controller rack (CR).

Product Detailed Description

In larger SIMATIC S7-300 automation systems where I/O point counts exceed the capacity of a single 8-slot central rack, multi-rack configurations are required. The IM 361 acts as a slave interface module that resides in Slot 3 of an Expansion Rack (ER 1, ER 2, or ER 3).

It connects to either an IM 360 transmitter module (located in the Central Rack) or a preceding IM 361 module in a daisy-chain arrangement via dedicated 368-series connecting cables. In addition to transmitting backplane bus communication signals, the IM 361 provides a localized 24 V DC power supply connection to feed 5 V DC power to the backplane bus of its expansion rack.

Technical Parameters

Product Advantages

• Cost-Effective System Scaling: Allows expansion up to 32 I/O modules across 4 racks without requiring additional CPU controllers or fieldbus communications.
• Independent Power Delivery: The built-in 24 V DC supply interface generates 5 V DC locally for the backplane, ensuring stable power distribution to signal modules in expansion racks without overloading the central CPU power supply.
• Daisy-Chaining Capability: Includes both input and output interface ports, allowing seamless looping from ER 1 to ER 2, and ER 2 to ER 3.
• Transparent Addressing: Signal modules in expansion racks are addressed directly by the central CPU as if they were located on the main rack, eliminating complex network mapping in STEP 7 / TIA Portal.

Important Considerations & Precautions

• Slot Placement: The IM 361 must strictly be installed in Slot 3 of the Expansion Rack. It cannot be used in any other slot position.
• Connecting Cables: Use only genuine Siemens 368 connecting cables (e.g., 6ES7368-3xxx0-0AA0). Standard ribbon or generic DB-style cables cause bus errors and communication failure.
• 24 V DC Wiring: Always ensure the external 24 V DC supply is wired to the front terminal block of the IM 361; the expansion rack modules will not operate on backplane communication power alone.
• Max Distance Constraint: The cumulative cable length across the entire multi-rack system must not exceed 10 meters.

Product Applications

• High-Density Control Cabinets: Expanding local I/O capacity for medium-to-large machinery where all modules fit within a single multi-tier panel setup.
• Process Automation: Modular expansion in water treatment plants, chemical dosing skids, and HVAC central plants.
• Manufacturing Lines: Distributing S7-300 digital and analog modules across adjacent panel sections along an assembly line.
