Siemens 6ES7360-3AA01-0AA0 Central Rack Interface Module

Description

Siemens 6ES7360-3AA01-0AA0 Central Rack Interface Module

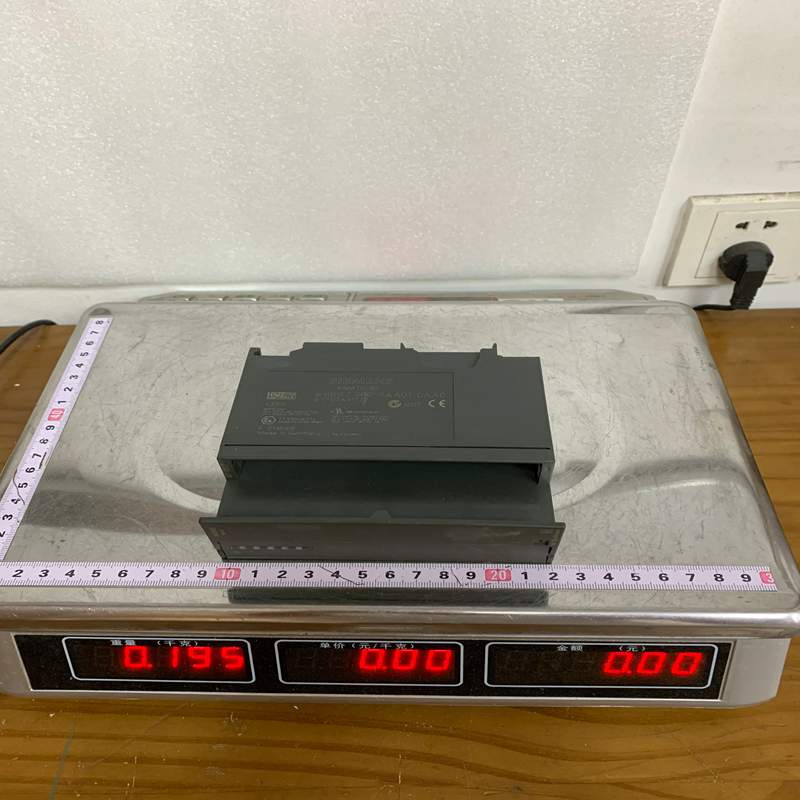

Product Dimensions：

The Siemens 6ES7360-3AA01-0AA0 (Interface Module IM 360) is a dedicated communication interface module for the SIMATIC S7-300 PLC system. It is installed in the central controller rack (Rack 0) to allow the PLC to connect to up to 3 multi-tier expansion racks (ERs).

Detailed Description

In complex automation architectures where a single central rack (Rack 0) cannot fit all required I/O modules, the SIMATIC S7-300 relies on interface modules to bridge racks. The IM 360 sits directly alongside the CPU in the central rack and transmits both the I/O bus data and the communication bus (C-bus / K-bus) signals over connecting cables (368 cable series) to IM 361 receiver modules installed in expansion racks 1, 2, and 3.

Technical Parameters

Product Advantages

• Seamless Rack Expansion: Expands an S7-300 system from a single 8-module rack up to 32 modules across 4 racks without requiring distributed I/O network modules (like PROFIBUS/PROFINET).
• C-Bus / Communication Support: Unlike lower-tier expansion modules (such as the IM 365), the IM 360/IM 361 pair supports the communication bus (C-bus), allowing communication-capable modules (e.g., CPs, FMs) to be installed in expansion racks.
• Transparent System Integration: The CPU treats all modules across all connected expansion racks as part of a single local address space—no special network programming required.
• Plug-and-Play Setup: Hardwired connection via predefined 368 connecting cables minimizes configuration complexity and setup time.

Important Considerations & Precautions

• Requires IM 361 Receiver Modules: The IM 360 cannot connect directly to I/O modules in expansion racks. Each expansion rack must have an IM 361 module (6ES7361-3CA01-0AA0) installed to receive the bus signals.
• Central Rack Only: The IM 360 can only be plugged into the central rack (Rack 0). It will not function if placed in an expansion rack.
• Cable Distance Limits: Use standard Siemens 368 cables (available in lengths up to 10 m). Exceeding maximum cable lengths can cause signal degradation and backplane bus faults.
• Hot-Swapping Restrictions: Standard S7-300 backplane modules do not support hot-swapping under power. Always power down the system before inserting or removing the IM 360 or interconnecting cables.

Product Applications

• High Density I/O Control Cabinets: Plants requiring 10 to 32 local digital/analog I/O modules, function modules, and communication processors within a single enclosure array.
• Multi-Door/Split Control Panels: Systems where I/O modules are split across separate mounting rails or adjacent enclosure doors while maintaining central CPU processing.
• Legacy SIMATIC S7-300 Upgrades & Spares: Essential interface module for maintaining, expanding, or servicing existing S7-300 PLC setups in manufacturing, automotive, and water treatment industries.
