Siemens 6ES7342-5DA02-0XE0 Communication Processor Module

Description

Siemens 6ES7342-5DA02-0XE0 Communication Processor Module

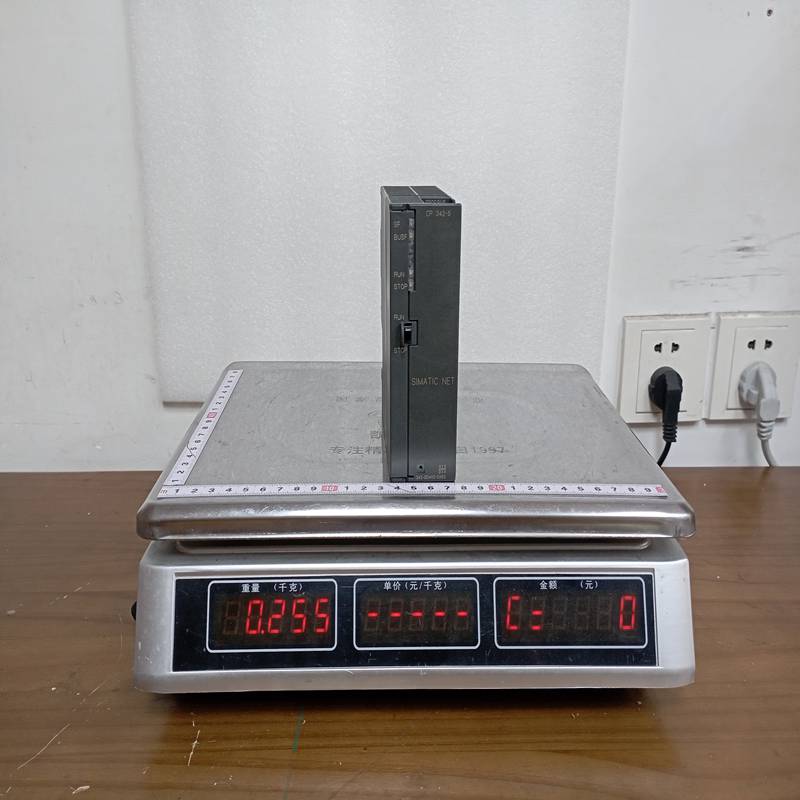

Product Dimensions：

The Siemens 6ES7342-5DA02-0XE0 is a CP 342-5 Communications Processor designed for the SIMATIC S7-300 PLC series. It serves as a high-performance interface to connect the S7-300 controller to a PROFIBUS DP network.

Product Detailed Description

The CP 342-5 module expands the communication capabilities of an S7-300 CPU, offloading the communication tasks from the main processor. It can function as either a DP Master or a DP Slave, allowing the PLC to control decentralized I/O devices or to be integrated as a component in a larger distributed system. It supports PROFIBUS DP-V0 and can handle both cyclic (I/O data) and acyclic (parameters and diagnostics) communication.

Technical Parameters

Product Advantages

• CPU Load Reduction: By handling the PROFIBUS protocol stack independently, it frees up the S7-300 CPU’s cycle time for critical logic processing.
• Flexible Operating Modes: It can be configured as a Master to manage its own string of I/O, or as a Slave to communicate with a higher-level Master (e.g., an S7-400 or a PC-based controller).
• Multi-Protocol Support: Beyond standard DP, it supports S7-functions for PG/OP communication (programming and HMI access) and “SEND/RECEIVE” for data exchange with legacy S5 systems.
• Diagnostic Capabilities: Integrated LEDs and software blocks provide extensive status information, including bus faults, hardware errors, and communication status.

Important Considerations (Precautions)

• Block Programming: Unlike integrated DP ports on a CPU, the CP 342-5 requires the use of specific function blocks (DP_SEND and DP_RECV) in the PLC user program to exchange data with the DP image.
• Bus Termination: Ensure that the PROFIBUS connectors at the first and last physical nodes of the segment have their termination resistors switched to “ON.”
• Firmware Compatibility: Verify that the module’s hardware version (E-Stand) is compatible with your STEP 7 or TIA Portal hardware configuration.
• Address Conflicts: Every node on the PROFIBUS segment must have a unique station address (0–125).

Product Applications

• Distributed I/O: Connecting S7-300 PLCs to remote I/O stations like ET 200M or ET 200S.
• Drive Control: Communicating with Siemens SINAMICS or third-party frequency converters over PROFIBUS.
• Plant Networking: Linking multiple S7-300 controllers together for plant-wide data synchronization.
• Process Automation: Interfacing with process instruments (pressure transmitters, flow meters) in chemical or water treatment facilities.
