Siemens 6ES7332-5HD01-0AB0 Analog Output Module

Description

Siemens 6ES7332-5HD01-0AB0 Analog Output Module

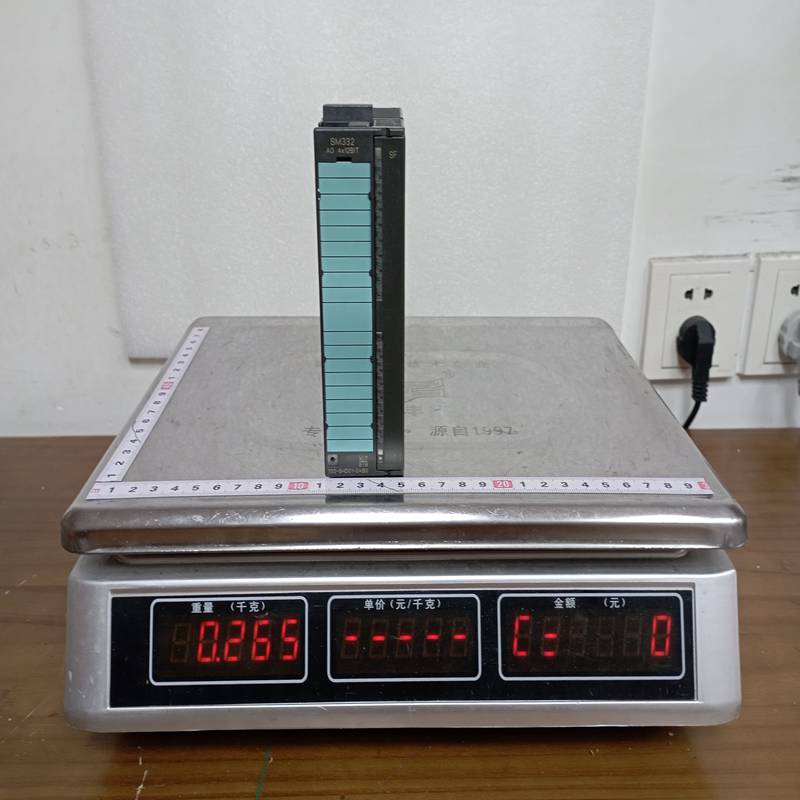

Product Dimensions：

The Siemens 6ES7332-5HD01-0AB0 is a high-density Analog Output Module belonging to the widely used SIMATIC S7-300 automation system. It is designed to interface the PLC with actuators such as control valves, frequency converters, or analog displays.

Product Detailed Description

The 6ES7332-5HD01-0AB0 provides 4 Analog Outputs with high resolution (12 bits). It is a versatile module capable of outputting both voltage and current signals, which can be configured independently for each channel via the Siemens STEP 7 or TIA Portal software.

Technical Parameters

Product Advantages

• High Flexibility: Each of the 4 channels can be programmed for different signal types (Voltage or Current) and ranges, allowing a single module to control diverse field devices.
• Diagnostic Capabilities: The module can detect and report “No load voltage” or “Short circuit to ground” for voltage outputs, and “Wire break” for current outputs, simplifying troubleshooting.
• Compact Design: At only 40mm wide, it maximizes I/O density within a standard S7-300 or ET 200M rack.
• Hot-Swapping (with Active Bus): When used in an ET 200M distributed I/O station with active bus modules, this module can be replaced while the system is running.

Important Considerations & Precautions

• Front Connector Wiring: This module requires a 20-pin front connector. Ensure the wiring for voltage vs. current outputs follows the specific pin-out diagram to avoid damaging the module or the actuator.
• Common Mode Voltage (U_{cm}): Ensure the potential difference between the outputs and the reference point (M_{ana}) does not exceed the specified limits to prevent signal distortion.
• Shielding: To maintain the 12-bit accuracy and prevent electromagnetic interference (EMI), always use shielded twisted-pair cables and ground the shield at the cabinet entry point.
• Unused Channels: Unused channels should be disabled in the hardware configuration software to prevent unnecessary error messages or processing overhead.

Product Applications

The 6ES7332-5HD01-0AB0 is a standard choice in various industrial sectors:

• Process Control: Providing setpoints for control valves or positioners in chemical or water treatment plants.
• Drive Technology: Sending speed or torque references to Variable Frequency Drives (VFDs) and motor controllers.
• HVAC Systems: Controlling damper actuators or modulating heating/cooling valves based on temperature logic.
• Data Visualization: Driving analog meters or chart recorders for real-time monitoring of process variables.
