Siemens 6ES7331-7NF00-0AB0 Input Module

Description

Siemens 6ES7331-7NF00-0AB0 Input Module

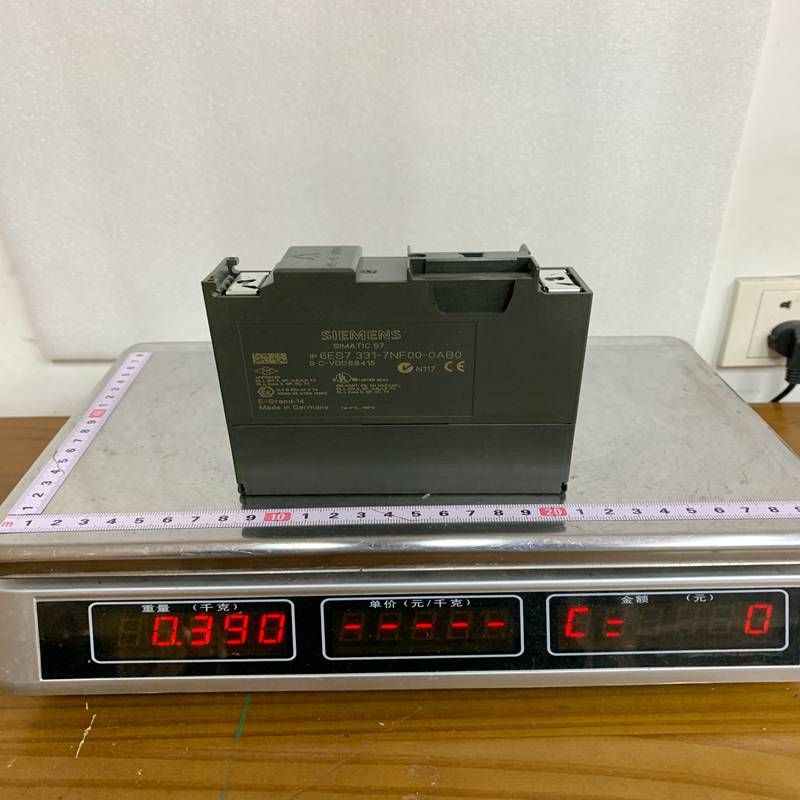

Product Dimensions：

The Siemens 6ES7331-7NF00-0AB0 is a high-performance analog input module belonging to the SIMATIC S7-300 automation system. It is specifically designed for high-speed, high-precision data acquisition in demanding industrial environments.

Product Detailed Description

The 6ES7331-7NF00-0AB0 is an 8-channel analog input module characterized by its high resolution (16 bits) and high speed. It supports the measurement of voltage and current signals. A standout feature of this specific module is its isolation and the ability to process signals with high common-mode voltage, making it suitable for complex electrical environments.

Technical Parameters

Product Advantages

• High Precision: With 16-bit resolution, it can detect minute changes in process variables, which is essential for high-end chemical or laboratory processes.
• High-Speed Sampling: Optimized for fast cycles, allowing the PLC to react quickly to fluctuating analog signals.
• Superior Noise Rejection: Features excellent common-mode rejection and filtering, ensuring stable readings even near high-power industrial equipment.
• Versatility: Each channel can be configured independently for different signal types (voltage vs. current) via hardware “measuring range modules” (cubes) and software settings in TIA Portal or Step 7.

Important Considerations & Precautions

• Measuring Range Modules: Before mounting the module, you must manually position the “cubes” on the side of the module to match your signal type (e.g., Position ‘C’ for 4-wire current).
• Grounding: To ensure 16-bit accuracy, the analog signal cables must be shielded, and the shields must be grounded at the point of entry into the cabinet using shield connection elements.
• Power Supply: The module requires 24 V DC external power for the analog circuitry. Ensure this supply is stable and filtered.
• Unused Channels: Short-circuit unused channels or configure them as “deactivated” in the hardware configuration to prevent the module from reporting “Open Circuit” or “Overflow” errors.

Product Applications

This module is typically used in precision-heavy industries:

• Pharmaceuticals: Precise temperature and pressure monitoring in reactor vessels.
• Metal Processing: High-speed tension control in rolling mills or wire-drawing machines.
• Energy Management: High-accuracy current monitoring for power distribution and consumption analysis.
• Test Benches: Data acquisition for automotive or aerospace component testing where 0.05% error limits are required.
