Siemens 6ES7331-7KF02-0AB0 Input Module

Description

Siemens 6ES7331-7KF02-0AB0 Input Module

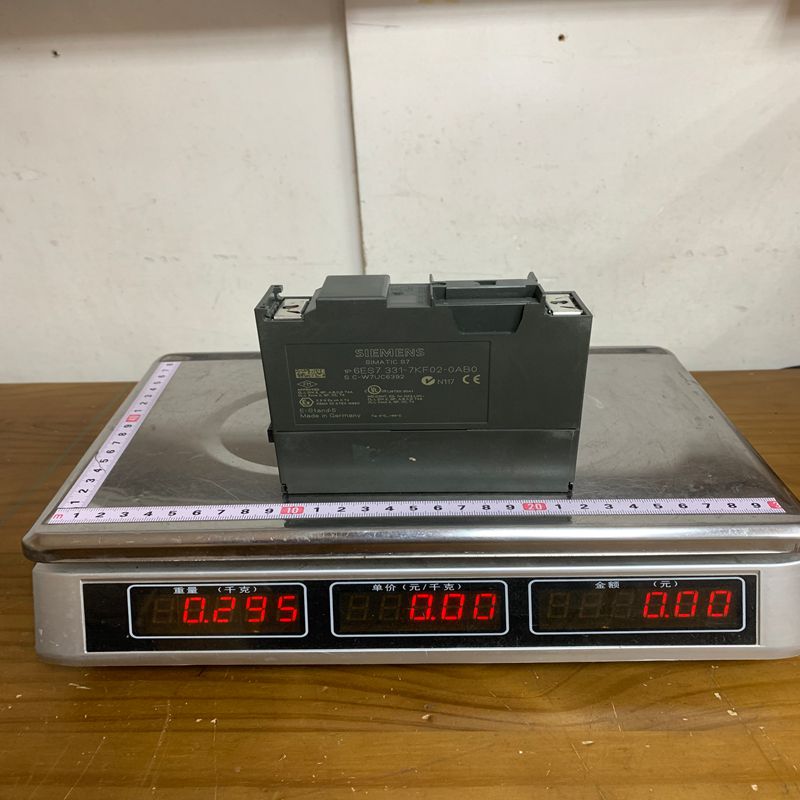

Product Dimensions：

The Siemens 6ES7331-7KF02-0AB0 is a highly versatile Analog Input Module belonging to the SIMATIC S7-300 series. It is widely recognized for its flexibility, allowing for the connection of various sensors including voltage, current, resistance, and thermocouples.

Product Specifications

Key Advantages

• Multifunctionality: A single module can handle multiple signal types, reducing the need to stock several different spare parts.

• High Precision: Offers reliable 12-bit to 14-bit resolution, ensuring accurate data acquisition for sensitive processes.

• Scalability: Seamlessly integrates into the modular S7-300 rack system, making it easy to expand systems.

• Diagnostic Capabilities: Includes wire-break detection and overflow/underflow monitoring to ensure system uptime.

Product Applications

This module is a “workhorse” in industrial automation, commonly used in:

1. Process Control: Monitoring temperature (RTD/TC) and pressure (4-20mA) in chemical and food industries.

2. HVAC Systems: Reading humidity and temperature sensors for climate control.

3. Manufacturing: Tracking displacement or force sensors on assembly lines.

4. Water Treatment: Monitoring flow rates and chemical levels via analog transmitters.

Important Considerations (Notes for Use)

⚠️ Hardware Configuration: You must set the physical Measuring Range Modules (the small square cubes on the side of the module) to the correct position (A, B, C, or D) to match your sensor type before powering on.

• Wiring: Ensure that the 20-pin front connector is wired correctly. For 2-wire transmitters, the module provides the loop power, whereas 4-wire transmitters require an external power source.

• Grounding: To prevent electrical noise (EMI) from affecting readings, always use shielded cables and ensure the shield is properly grounded at the cable entry point.

• Unused Channels: It is best practice to short-circuit unused channels or configure them as “deactivated” in the TIA Portal/STEP 7 software to avoid false diagnostic alarms.
