Siemens 6ES7331-7KF02-0AB0 Input Module

Description

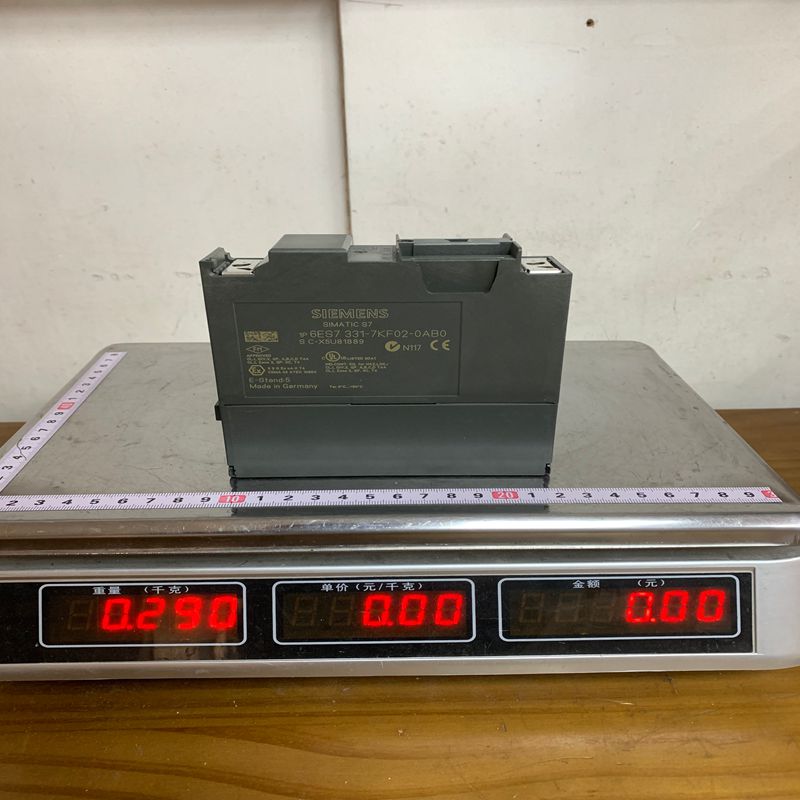

Siemens 6ES7331-7KF02-0AB0 Input Module

Product Dimensions：

The 6ES7331-7KF02-0AB0 is a versatile Analog Input Module for the Siemens SIMATIC S7-300 PLC series. It is widely recognized for its flexibility, allowing for the measurement of voltage, current, resistance, and temperature.

1. Product Description

This module is a high-density analog input unit featuring 8 isolated channels. It is designed to interface various analog sensors from the field to the S7-300 CPU. The module converts analog signals into digital values with a resolution of up to 12 bits plus sign (depending on integration time).

2. Technical Specifications

3. Key Advantages

• Multi-protocol Support: A single module can handle multiple signal types (Current, Voltage, RTD, TC), reducing the need for different spare parts.

• High Flexibility: Parameters like integration time and measurement range are easily configurable via STEP 7 or TIA Portal.

• Isolation: Galvanic isolation between channels and the backplane bus ensures high signal integrity and protection against electrical interference.

• Reliability: Built with the industrial-grade robustness Siemens is known for, ensuring a long lifecycle in harsh environments.

4. Important Considerations & Precautions

• Range Card Setting: This module uses mechanical Range Coding Blocks (located on the side of the module). You must ensure the physical card position (A, B, C, or D) matches the software configuration in the Hardware Config.

• Wiring: Always use shielded cables for analog signals to minimize electromagnetic interference (EMI). Ensure the shield is properly grounded.

• Power Supply: Ensure the $24\text{ V DC}$ load power supply is connected correctly to the front connector; otherwise, the module will report a peripheral power error.

• Shorting Unused Channels: To improve the cycle time and prevent false diagnostics, it is recommended to short-circuit unused channels or disable them in the software.

5. Product Applications

The 6ES7331-7KF02-0AB0 is utilized across various industries including:

• Process Automation: Monitoring pressure, flow, and level sensors in chemical plants.

• HVAC Systems: Precise temperature control using RTDs or Thermocouples.

• Manufacturing: Monitoring motor current or voltage feedback in assembly lines.

• Energy Management: Measuring power parameters via transducers.
