Siemens 6ES7326-1BK01-0AB0 Digital Input Module

Description

Siemens 6ES7326-1BK01-0AB0 Digital Input Module

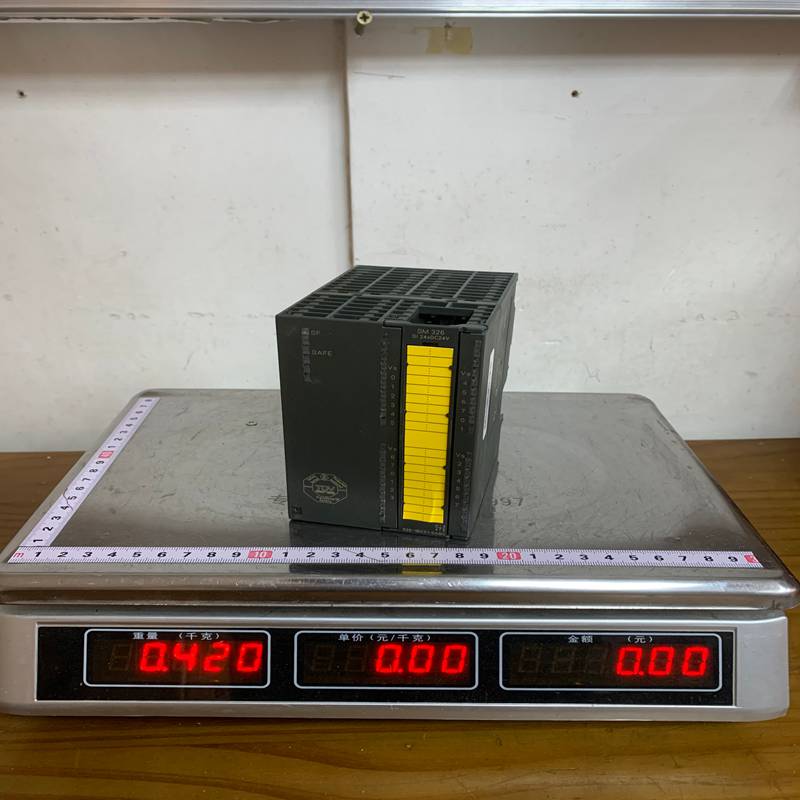

Product Dimensions：

The Siemens 6ES7326-1BK01-0AB0 is a high-performance Failsafe Digital Input Module from the SIMATIC S7-300 series. It is designed for use in safety-related automated systems, typically integrated with S7-300F (Failsafe) CPUs or ET 200M distributed I/O stations.

Product Detailed Description

The 6ES7326-1BK01-0AB0 is an SM 326 module that features 24 Digital Inputs. It is specifically engineered for functional safety applications, achieving high safety integrity levels by utilizing internal redundant processing and diagnostic tests. It can be configured for either single-channel (1oo1) or dual-channel (1oo2) evaluation to meet different safety requirements.

Technical Parameters

Product Advantages

• Flexible Safety Integrity: Depending on the wiring and parameterization in Step 7 or TIA Portal, you can achieve various safety levels up to SIL 3.
• Integrated Diagnostics: The module automatically detects external faults such as short circuits, cross-circuits (when using clock signals), and wire breaks.
• High Density: Offers 24 inputs in a compact 80mm wide module, saving valuable DIN rail space in safety cabinets.
• Standard Integration: Even though it is a safety module, it resides on the standard S7-300 backplane, allowing for a mix of standard and safety I/O in the same rack.

Important Considerations & Precautions

• Clock Signals: To detect cross-circuits between input lines, you must utilize the internal clock signals provided by the module.
• Parameterization: Safety parameters (like monitoring times and sensor evaluation) must be set via the “HW Config” tool and protected by a safety password.
• Front Connector Wiring: This module requires a 40-pin front connector. Due to the density of the safety wiring, it is highly recommended to use the Siemens “TOP Connect” pre-wired system to avoid manual wiring errors.
• Maintenance: When replacing a module, ensure the “Safety Address” (set via DIP switches on the side or back of the module) matches the original configuration, or the CPU will not communicate with it.

Product Applications

This module is a cornerstone for any S7-based Safety Instrumented System (SIS):

• Emergency Stop (E-Stop) Loops: Monitoring rows of E-stop buttons across a production line.
• Light Curtains & Laser Scanners: Interfacing with optical safety sensors for perimeter guarding.
• Safety Gate Monitoring: Confirming that machine guards are closed and locked before high-speed operation begins.
• Burner Control: Acting as the input interface for flame detectors and limit switches in thermal processing units.
