Siemens 6ES7322-5HF00-0AB0 Digital Output Module

Description

Siemens 6ES7322-5HF00-0AB0 Digital Output Module

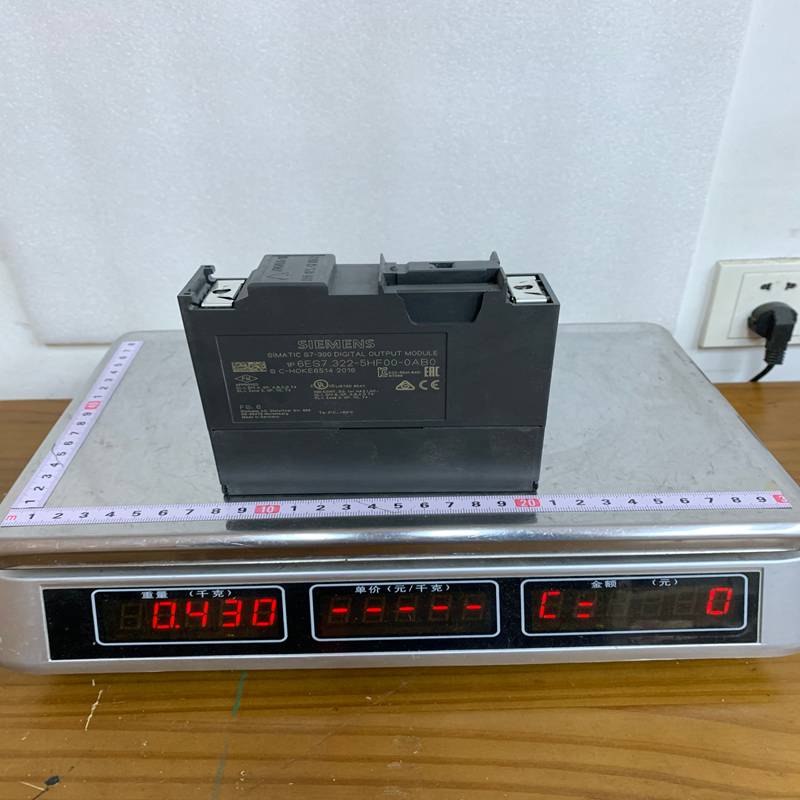

Product Dimensions：

The Siemens 6ES7322-5HF00-0AB0 is a high-performance 8-channel digital output module belonging to the SIMATIC S7-300 automation system. It is specifically designed as a Relay Output Module with integrated “failing-safe” characteristics or high-load switching capabilities.

Product Detailed Description

The 6ES7322-5HF00-0AB0 provides 8 isolated relay outputs. Unlike standard transistor modules, this relay module can handle higher voltages (up to 230 V AC) and is often used for switching inductive loads, motors, or solenoid valves. It features internal power supply monitoring and diagnostic capabilities to ensure system integrity in industrial environments.

Technical Parameters

Product Advantages

• High Switching Capacity: Capable of handling up to 5 Amps per channel, allowing it to drive larger actuators directly without the need for intermediate coupling relays.
• Galvanic Isolation: The outputs are electrically isolated from the internal backplane and between groups, protecting the PLC CPU from field-side electrical surges.
• Diagnostic Alarms: Provides detailed feedback to the CPU regarding the status of the outputs, which simplifies troubleshooting and reduces system downtime.
• Versatility: Supports both AC and DC voltages, making it a flexible “all-in-one” solution for diverse switching requirements.

Important Considerations (Precautions)

• Inductive Loads: When switching inductive loads (like motor starters or large solenoids), it is highly recommended to use external RC elements or suppressor diodes to protect the relay contacts from arcing and premature wear.
• Front Connector: This module requires a 40-pin front connector. Note that the connector is usually sold separately and is not included with the module itself.
• Derating: Be aware of the aggregate current limits. If all channels are operating at high temperatures, the total current across the module must be managed according to the manufacturer’s derating curves.
• Mechanical Life: Because this is a mechanical relay module, its lifespan is limited by the number of switching cycles. For high-frequency switching applications, a transistor module (like 6ES7322-1BL00) is preferred.

Product Applications

The 6ES7322-5HF00-0AB0 is commonly used in:

• HVAC Systems: Controlling fans, pumps, and dampers that require 230 V AC power.
• Water Treatment: Actuating motorized valves and chemical dosing pumps.
• Heavy Machinery: Interfacing between the PLC and high-power motor contactors in assembly lines.
• Power Distribution: Used in control cabinets to signal alarms or trip larger circuit breakers.
