Siemens 6ES7322-1HF10-0AA0 8-channel Relay Digital Output Module

Description

Siemens 6ES7322-1HF10-0AA0 8-channel Relay Digital Output Module

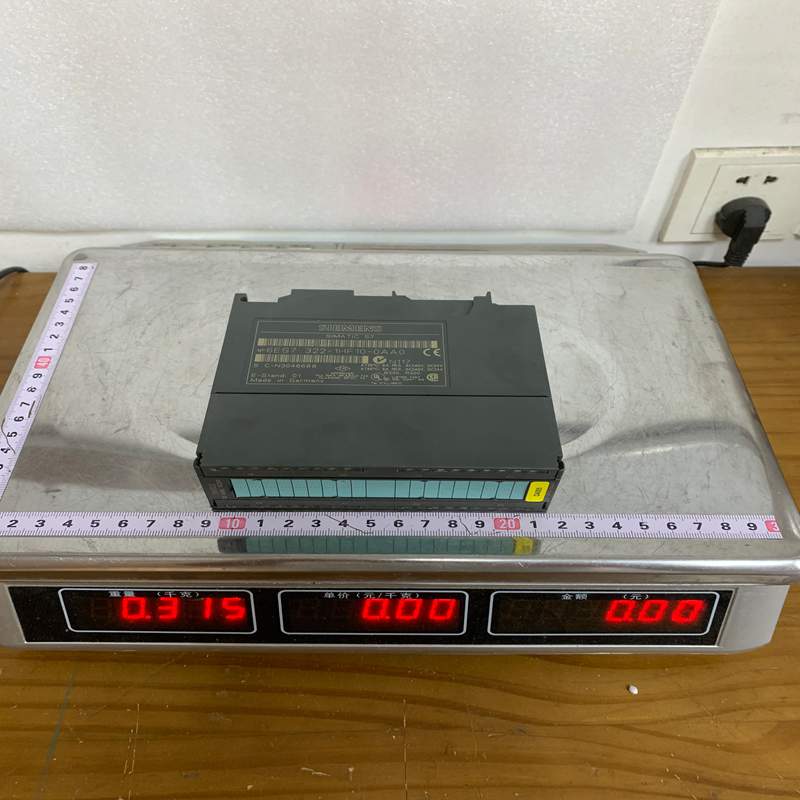

Product Dimensions：

The Siemens 6ES7322-1HF10-0AA0 is a digital relay output module (SM 322 series) designed for the SIMATIC S7-300 PLC platform. It acts as an electrical isolation interface, allowing low-voltage CPU logic to safely switch higher-power AC or DC loads directly, such as contactors, solenoid valves, motor starters, and indicator lights.

Detailed Description

This module provides 8 relay channels, where each channel is individually potential-isolated (electrically isolated in groups of 1). It plugs directly into the S7-300 DIN-rail backplane bus and requires a standard 40-pin front connector (screw or spring-loaded terminal type) for external wiring connection.

Technical Specifications

Product Advantages

• Individually Isolated Channels: Each of the 8 relay outputs is isolated in its own channel group (group of 1), allowing you to mix completely different potential voltages across channels on the same module.
• High Switching Capacity: Supports loads up to 5 A AC / 8 A DC per channel, enabling direct driving of actuators without external interposing relays.
• Flexible Load Compatibility: Works seamlessly with both DC (24V–120V) and AC (48V–230V) field circuits.
• Built-in Visual Diagnostics: Channel status LEDs provide clear, real-time troubleshooting directly on the front panel.

Important Considerations & Precautions

• Wiring Constraints (> 3 A): When operating with switching currents greater than 3 A per channel, always use connecting cables with a minimum cross-section of 1.5 mm² to prevent dangerous temperature rises at the front connector terminals.
• SELV Voltage Rules: If operating a channel on Safety Extra-Low Voltage (SELV), the horizontally adjacent terminal must not carry voltages higher than 120 V UC due to internal creepage distance limits on the 40-pin connector.
• External Circuit Protection: The module does not feature onboard short-circuit or overload fuse protection; appropriate external fuses must be installed on the load supply line.
• Inductive Suppression: When switching inductive loads (e.g., solenoid valves or contactor coils), fit external surge suppressors (RC elements for AC, flyback diodes for DC) across the load to maximize contact life.

Product Applications

• Industrial Actuator Control: Switching heavy 230V AC solenoids, directional hydraulic valves, and motor contactors directly from PLC logic.
• Process Plant Automation: Controlling field heaters, pumps, fan starters, and motorized dampers across water treatment or chemical plants.
• Mixed-Voltage Systems: Interfacing PLC outputs simultaneously with both 24V DC control circuits and 120V/230V AC field devices on a single module.
