Siemens 6ES7193-4JA00-0AA0 ET200S Terminal Module

Description

Siemens 6ES7193-4JA00-0AA0 ET200S Terminal Module

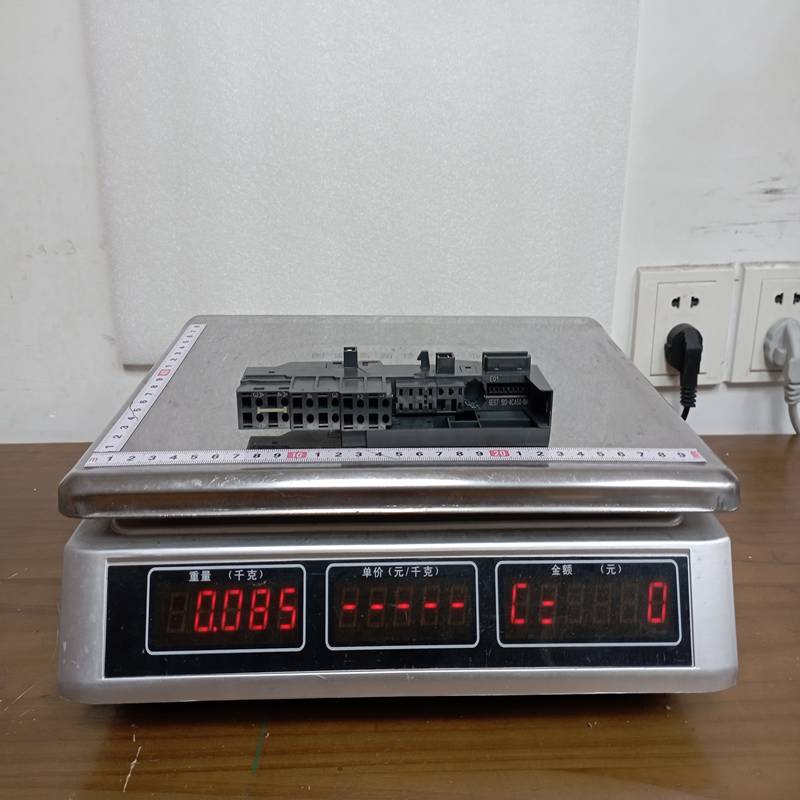

Product Dimensions：

The Siemens 6ES7193-4JA00-0AA0 is a specific Terminal Module (TM-P15S23-A0) designed for the SIMATIC ET 200S distributed I/O system. It serves as the physical and electrical interface for Power Modules (PM-E), allowing for the establishment of voltage groups within a modular station.

Product Detailed Description

The 6ES7193-4JA00-0AA0 is a Terminal Module for Power Modules. Its primary function is to house the PM-E power module and provide the connection points for the incoming 24 V DC supply. This specific variant features Screw Terminals (denoted by the “S” in the type code) and provides access to the internal AUX1 bus bar, which can be used for protective earth or additional voltage distribution.

Technical Parameters

Product Advantages

• Modular Voltage Grouping: Allows you to start a new potential group, isolating different sections of the I/O rack for safety or functional reasons.
• Integrated AUX1 Bus: The module features an internal bus bar (AUX1) that simplifies wiring by allowing shared potentials (like Ground or PE) to be passed between modules without external jumpers.
• Hot-Swapping: When used with the ET 200S system, it supports the replacement of the functional Power Module without disturbing the permanent wiring on the terminal module.
• Rugged Screw Terminals: Provides a secure, vibration-resistant connection suitable for industrial environments where high-torque clamping is preferred.

Important Considerations & Precautions

• Current Limits: The maximum total current for the voltage group established by this module is 10 A. Exceeding this can lead to overheating of the terminal module’s internal bus.
• Color Coding: The terminals are color-coded to prevent wiring errors. Ensure that the 24 V DC and M (Ground) lines are connected to the correct designated points.
• Mechanical Coding: When a Power Module is first inserted, it “codes” the terminal module. If you attempt to replace it with a different type of power module later, you must remove the coding key.
• AUX1 Usage: Ensure that the AUX1 bus bar is used consistently throughout the rack (e.g., if used for PE, it must remain PE for all modules in that segment).

Product Applications

The 6ES7193-4JA00-0AA0 is used in any automation system utilizing the Siemens ET 200S distributed I/O:

• Machine Control Panels: Providing power to digital and analog I/O modules that drive sensors and actuators.
• Distributed Automation: Used in remote I/O stations connected via PROFIBUS or PROFINET to a central S7-300, S7-400, or S7-1500 PLC.
• Safety Segments: Establishing separate power zones that can be disconnected by a safety relay without shutting down the entire PLC rack.
• Factory Assembly Lines: Used in high-density DIN rail installations where space-saving modularity is required.
