Siemens 6ES7193-4CC30-0AA0 Terminal module

Description

Siemens 6ES7193-4CC30-0AA0 Terminal module

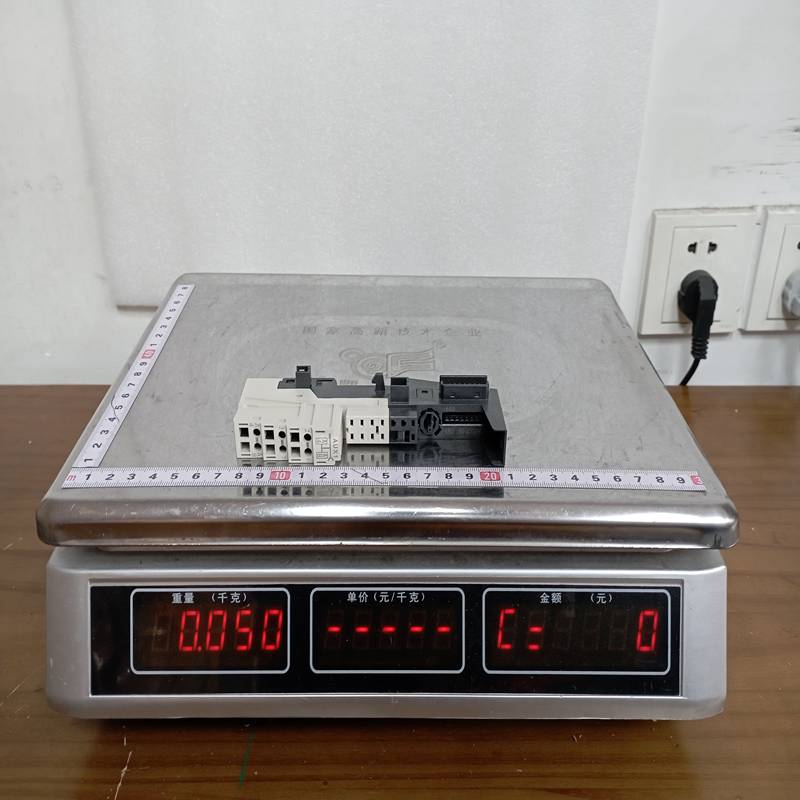

Product Dimensions：

The Siemens 6ES7193-4CC30-0AA0 is a specific Terminal Module (TM-P15S23-A0) designed for the SIMATIC ET 200S distributed I/O system. It serves as the physical and electrical interface for power modules (PM-E), specifically those used to manage potential groups.

Product Detailed Description

The 6ES7193-4CC30-0AA0 is a Terminal Module for Power Modules. Its primary role is to house the power module that supplies voltage to the internal bitbus and the subsequent electronic modules in a “potential group.” This specific variant features Spring-loaded terminals (indicated by the “S” in the technical code), which offer a screwless, vibration-resistant connection method.

Technical Parameters

Product Advantages

• Fast Wiring: The spring-loaded technology allows for “push-in” or tool-actuated wiring, significantly reducing installation time compared to traditional screw terminals.
• Vibration Resistance: Spring terminals maintain constant pressure on the wire, making this module ideal for high-vibration industrial environments where screws might loosen over time.
• Modular Potential Distribution: It allows for the easy creation of new potential groups within an ET 200S station, enabling the isolation of different sections of I/O power.
• Hot-Swapping Support: When used with the correct electronic module, the terminal module remains wired even if the active power module is removed, facilitating easy maintenance.

Important Considerations (Precautions)

• Current Limits: Do not exceed the 10 A total current limit for the potential group fed through this terminal module. If your I/O load is higher, you must start a new potential group with an additional power module.
• Wire Stripping: Ensure wires are stripped to the correct length (typically 8–10 mm) to ensure a secure connection within the spring cage without exposing bare copper.
• AUX Bus Continuity: Note that this “A0” version connects to the AUX bus. Ensure that your configuration of AUX terminals matches the physical wiring of the neighboring modules.
• Terminal Module Choice: This module is for Power Modules only. It cannot be used to house standard digital or analog input/output electronic modules (which require TM-E modules).

Product Applications

The 6ES7193-4CC30-0AA0 is used in any automation architecture utilizing the Siemens ET 200S distributed I/O:

• Factory Automation: Centralized control cabinets where space-saving (15mm width) and modularity are required.
• Conveyor Systems: Distributed I/O stations along long assembly lines where vibration resistance is critical.
• Process Skids: Small-scale industrial machines where different power levels (e.g., sensor power vs. actuator power) must be isolated into separate potential groups.
• Automotive Production: High-density I/O configurations for robotic cells and pneumatic control banks.
