Siemens 6ES7153-1AA03-0XB0 ET200M Interface Module

Description

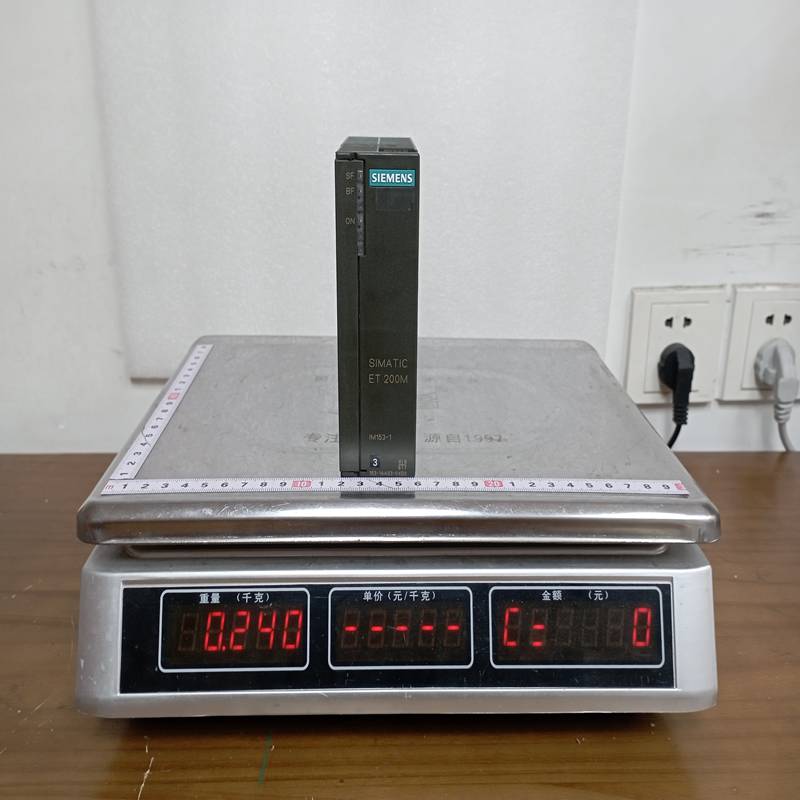

Siemens 6ES7153-1AA03-0XB0 ET200M Interface Module

Product Dimensions：

The Siemens 6ES7153-1AA03-0XB0 is a high-performance interface module from the ET 200M distributed I/O system. It serves as the bridge between the PROFIBUS DP network and S7-300 I/O modules, allowing for decentralized automation architectures.

Product Detailed Description

The 6ES7153-1AA03-0XB0 (IM 153-1) is a standard interface module designed to connect a modular ET 200M station to a PROFIBUS DP master (such as an S7-300 or S7-400 PLC). It manages the communication between the fieldbus and up to 8 peripheral I/O modules mounted on the same DIN rail, providing a cost-effective solution for expanding system capacity without adding more CPUs.

Technical Parameters

Product Advantages

• Modular Scalability: Since it uses standard S7-300 I/O modules, users can mix and match digital, analog, and special function modules within a single ET 200M station.
• Simplified Engineering: Fully integrated into the STEP 7 or TIA Portal environment, allowing for easy hardware configuration and diagnostics via GSD files.
• Cost-Efficient: Reduces wiring costs by moving I/O processing closer to the field devices while using a single PROFIBUS cable to communicate with the central controller.
• Reliability: Proven industrial-grade design with high electromagnetic compatibility (EMC) and vibration resistance.

Important Considerations & Precautions

• Addressing: The PROFIBUS address is set manually using the DIP switches located under the front cover. Ensure the address is unique on the network before powering up.
• Backplane Bus: Unlike the IM 153-2, this model (IM 153-1) does not support “Hot Swapping” (removing modules under tension) unless used with specific active bus modules and a supporting CPU.
• Termination: If the module is at the physical beginning or end of the PROFIBUS segment, the termination resistor on the PROFIBUS plug must be switched to the “ON” position.
• Configuration Limits: Ensure the total power consumption of the 8 connected I/O modules does not exceed the capacity of the 24V DC power supply feeding the IM 153-1.

Product Applications

• Distributed Automation: Connecting field sensors and actuators in large-scale manufacturing plants (e.g., automotive assembly lines).
• Process Control: Integrating remote I/O points in water treatment plants or food and beverage processing facilities.
• Machine Building: Used by OEMs to create modular machine sections that can be easily connected to a central control cabinet via a single cable.
• Retrofitting: Upgrading older systems by replacing centralized wiring with a decentralized PROFIBUS DP structure using existing S7-300 hardware.
