Siemens 6ES7152-1AA00-0AB0 Interface Module

Description

Siemens 6ES7152-1AA00-0AB0 Interface Module

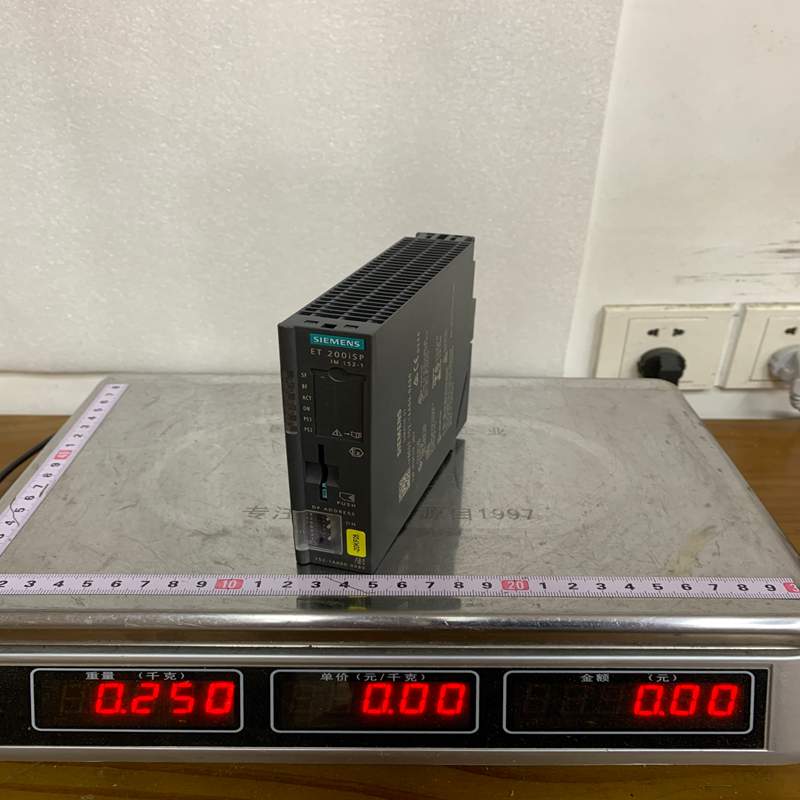

Product Dimensions：

The Siemens 6ES7152-1AA00-0AB0 is a highly specialized interface module from the SIMATIC ET 200iSP distributed I/O station family. This series is engineered specifically for installation in hazardous areas (potentially explosive atmospheres) to bridge intrinsic safety requirements with standard industrial communication networks.

Product Detailed Description

The 6ES7152-1AA00-0AB0 is the IM 152-1 interface module. Its primary function is to connect the ET 200iSP distributed I/O station to a PROFIBUS DP network. Because the module is designed for intrinsically safe (Ex\ i) applications, it manages the data transmission between the hazardous zone and the control room while isolating the electric circuits to prevent sparks or thermal effects that could trigger an explosion.

Technical Parameters

Product Advantages

• Intrinsically Safe Architecture: Allows for direct installation inside Zone 1 hazardous areas, drastically reducing wiring costs by avoiding long runs of explosion-proof conduits back to a safe zone.
• Redundancy Support: Supports PROFIBUS DP redundancy configurations, ensuring high system availability and continuous operation in critical process environments.
• Hot-Swapping (Configuration in Run): The interface module and connected I/O modules can be replaced while the system is live and under explosive atmospheric conditions without requiring a hot-work permit.
• High-Density Setup: Capable of controlling up to 32 electronic modules from a single interface head, saving footprint space inside localized control cabinets.

Important Considerations & Precautions

• Terminal Module Requirement: The IM 152-1 cannot be mounted directly onto a standard DIN rail; it must be plugged into a specialized ET 200iSP terminal module (e.g., TM-IM/IM or TM-IM/EM).
• Network Isolation: The PROFIBUS DP connection entering the hazardous area must be protected by an intrinsically safe fieldbus isolating repeater (such as the RS 485IS coupler) to limit the electrical energy on the bus line.
• Ex Zone Boundaries: Ensure compliance with the maximum ambient temperature guidelines (T4 classification limits it strictly to +60°C or lower based on specific mounting layouts).
• Firmware Matching: If utilizing a redundant setup, both interface modules installed on the terminal block must possess identical hardware and firmware revisions.

Product Applications

The SIMATIC ET 200iSP system and the IM 152-1 module are designed strictly for process industries where explosive gases, vapors, or dusts are regularly present:

• Chemical & Petrochemical Plants: Localized I/O control near distillation columns, mixing vessels, and storage tanks.
• Oil & Gas Exploration: Deployment on offshore rigs, pumping facilities, and refinery processing units.
• Pharmaceutical Manufacturing: Managing instrumentation and monitoring values where volatile solvents are actively processed.
• Grain & Dust Environments: Utilizing the intrinsic safety design for automated conveyor and milling systems handling flammable dust particles.
