Siemens 6ES7151-1BA02-0AB0 ET200S Interface Module

Description

Siemens 6ES7151-1BA02-0AB0 ET200S Interface Module

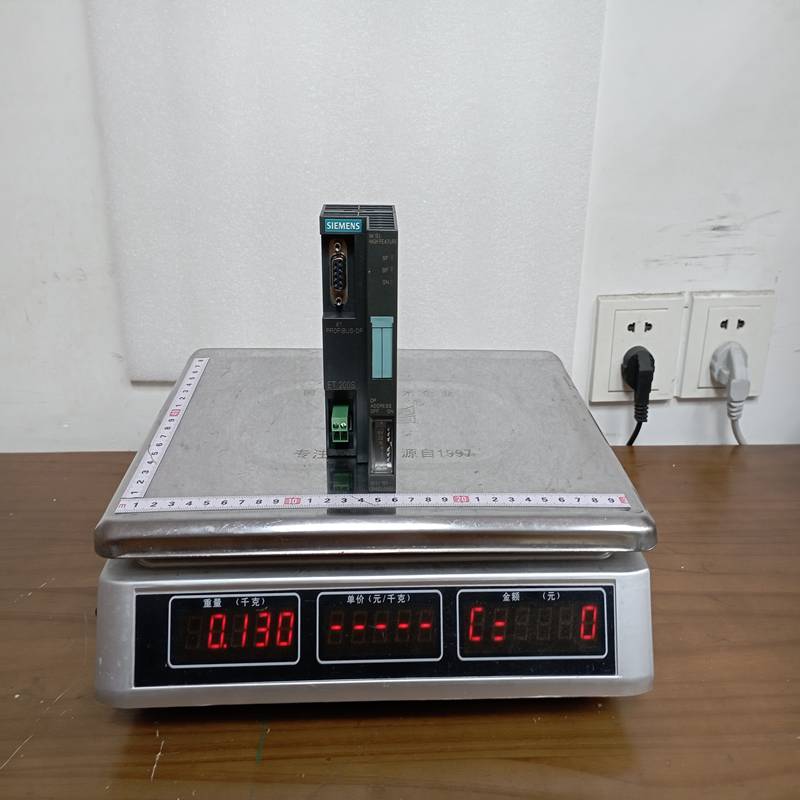

Product Dimensions：

The Siemens 6ES7151-1BA02-0AB0 is a high-performance Interface Module (IM) belonging to the ET 200S distributed I/O system. It acts as the “head” of a remote I/O station, connecting various expansion modules to a central PLC via the PROFIBUS DP network.

Product Detailed Description

The 6ES7151-1BA02-0AB0 is the IM 151-1 HIGH FEATURE module. Unlike the “Standard” or “Basic” versions, the High Feature (HF) variant supports more advanced functions, such as larger data volumes, expanded diagnostic capabilities, and the ability to handle more sub-modules in a single station. It serves as the gateway that manages data exchange between the PROFIBUS master and the electronic modules (digital, analog, power, etc.) plugged into the ET 200S rack.

Technical Parameters

Product Advantages

• High Modularity: The ET 200S system is bit-modular, allowing you to mix and match digital, analog, and power modules precisely to fit the application’s needs, reducing wasted I/O points.
• Enhanced Diagnostics: As a “High Feature” module, it provides detailed channel-level diagnostics, allowing maintenance teams to pinpoint faults (like wire breaks or short circuits) via the PROFIBUS network.
• Hot Swapping: Supports the replacement of electronic modules while the station is under power and the bus is active (configuration dependent), significantly reducing system downtime.
• Firmware Updateable: The module’s firmware can be updated via the PROFIBUS network, ensuring compatibility with newer features or security patches.

Important Considerations & Precautions

• Termination: As with all PROFIBUS nodes, the physical ends of the network segment must have an active bus terminator (usually integrated into the PROFIBUS plug).
• Power Module (PM-E): An interface module cannot power the entire I/O rack alone. You must place a Power Module immediately to the right of the IM 151-1 to supply the “load voltage” for the subsequent electronic modules.
• GSD Files: To configure this module in a non-Siemens master or older versions of STEP 7, you must install the correct GSD file to recognize the “High Feature” parameters.
• Addressing: Ensure the PROFIBUS address is set correctly using the DIP switches on the module before powering up the system.

Product Applications

The 6ES7151-1BA02-0AB0 is used in distributed automation architectures across various industries:

• Automotive Assembly: Managing I/O for robotic cells and conveyor lines where high-speed communication is required.
• Packaging Machinery: Handling complex sensor/actuator data in high-speed labeling or wrapping machines.
• Process Control: Integrating remote sensors in water treatment plants or chemical dosing systems where the controller is located far from the field equipment.
• Logistics & Warehousing: Controlling distributed drive systems and sorters in automated storage and retrieval systems (AS/RS).
