SIEMENS 6EP8106-0AC20 Power Supply Unit

Description

SIEMENS 6EP8106-0AC20 Power Supply Unit

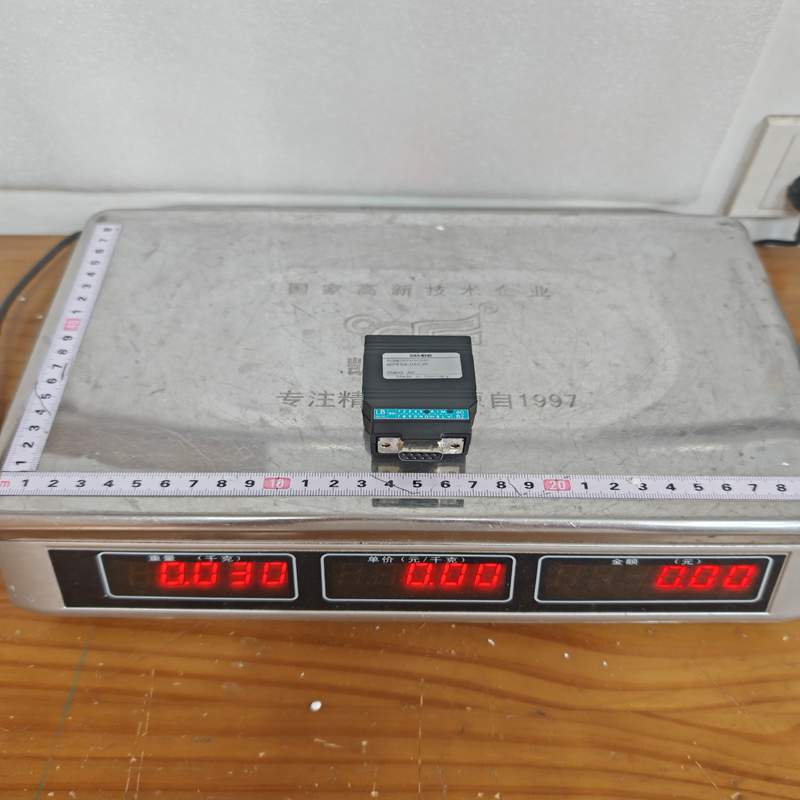

Product Dimensions：

The SIEMENS 6EP8106-0AC20 is a spare part component within the Siemens SIMATIC DP automation series, designed primarily for use as a test connector (or test plug) for the BT200 Bus Tester.

Below are the detailed specifications and descriptions for this product:

Product Description

The BT200 is a specialized tool from Siemens used for physical layer diagnostics and line testing of PROFIBUS DP fieldbus networks. The 6EP8106-0AC20 is designed specifically to work with the BT200 main unit; it connects to bus terminals or nodes, enabling the tester to detect faults such as wire breaks, short circuits, shielding connection issues, and cable impedance problems.

Product Parameters
Parameter Value / Description
Brand SIEMENS
Order Number (MLFB) 6EP8106-0AC20
Product Type BT200 Bus Tester Test Connector/Plug
Series SIMATIC DP / PROFIBUS Network Accessories
Compatible Device SIMATIC DP BT200 Bus Tester
Compatible Network PROFIBUS DP / RS485 Fieldbus
Product Status Discontinued / Spare Part (Classic/Discontinued status)

Product Advantages
High-Precision Matching: Designed specifically as an original accessory for the BT200 tester, it offers excellent internal impedance and wiring compatibility, ensuring the accuracy of physical layer measurement data.
Convenient and Rapid Diagnostics: Supports quick plug-and-play operation, facilitating rapid troubleshooting by maintenance personnel across various bus nodes in the field.
Industrial-Grade Durability: Designed for harsh factory environments; the interface is wear-resistant and interference-resistant, meeting the demands of long-term maintenance use.

Precautions
Hardware Compatibility: This component is not a standalone electronic module; it must be used in conjunction with the Siemens BT200 Bus Tester to function.
Power-Off/Offline Testing: When using the BT200 and this test connector to perform physical continuity, short-circuit, or impedance tests on PROFIBUS lines, ensure the line segment under test is deactivated (offline) to avoid disrupting online communication or damaging the test equipment. Connector Protection: The pins are precision components; after use, the device should be stored properly in a dry, anti-static environment to prevent pin bending, moisture exposure, or oxidation, which could compromise testing accuracy.
Product Status and Spare Parts: As the BT200 is an older Siemens testing tool, units currently available are typically classified as legacy or spare parts; please verify the hardware’s functionality before purchase.

Product Applications

Primarily used for the maintenance and commissioning of automated production lines and industrial communication networks:

PROFIBUS DP Network Installation and Acceptance: Conducting physical layer integrity tests on the entire line during new PROFIBUS cable installations.
Fieldbus Troubleshooting: Pinpointing faults—such as cable breaks, incorrect wiring connections, or poor shielding—when PROFIBUS DP networks experience communication interruptions, packet loss, or bus errors.
Periodic Equipment Maintenance: Performing routine inspections of communication lines in industrial automation systems (e.g., systems utilizing S7-300/400 PLCs and ET 200 distributed I/O).
