Siemens 6EP1336-3BA10 Industrial Power Supply

Description

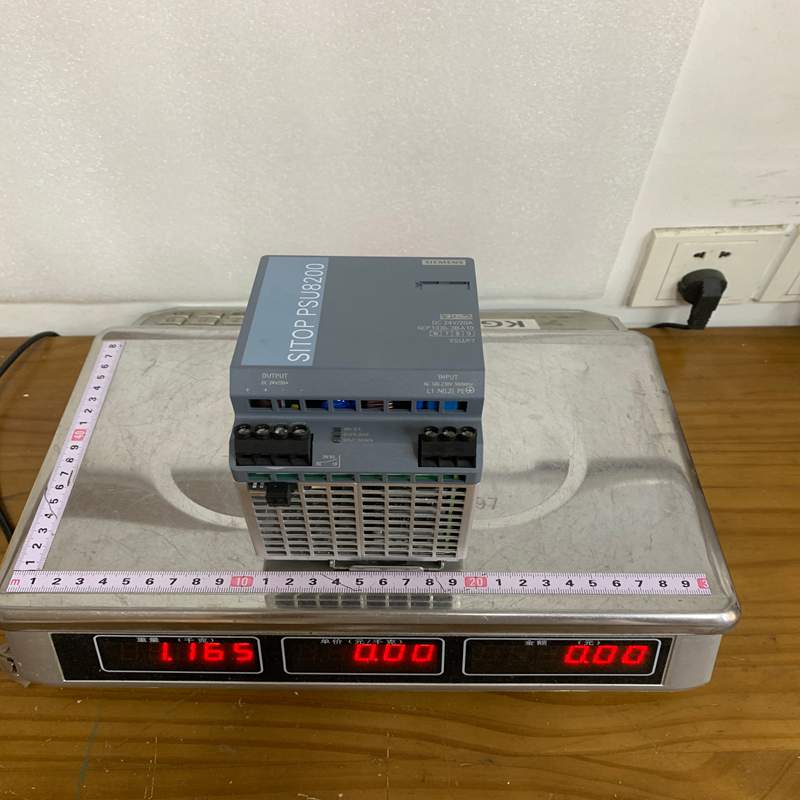

Siemens 6EP1336-3BA10 Industrial Power Supply

Product Dimensions：

The Siemens 6EP1336-3BA10 (SITOP PSU8200) is a high-performance, single-phase regulated DIN-rail power supply designed for demanding industrial automation environments.

Product Detailed Description

Part of the SITOP modular / PSU8200 product family, the 6EP1336-3BA10 converts a wide range single-phase AC input into a stable, isolated 24 V DC output. It delivers a nominal output current of 20 A (480 W total power) and features a compact, rugged metal enclosure built to withstand extreme electrical and thermal conditions.

Technical Parameters

Product Advantages

• High Efficiency & Low Heat Loss: With efficiency reaching up to 94%, it minimizes thermal dissipation inside the control cabinet, saving energy and extending component lifespan.
• Extra Power Reserve: Provides up to 300% rated current for 25 ms to trip protective circuit breakers, and 150% extra power for 5 seconds to handle high-inrush currents (e.g., DC motors or capacitive loads).
• Wide Range Input: Wide-range input capability allows global deployment without manual voltage selector switches.
• Modular Expansion: Seamlessly integrates with SITOP add-on modules, including redundancy modules, buffer modules, selectivity modules, and DC UPS units.
• Status Signaling: Integrated signaling contact (relay output) and three front-panel LEDs provide immediate status reporting for “24 V OK”, overload, and shutdown.

Important Considerations & Precautions

• Thermal Derating: Ensure adequate ventilation space around the unit (minimum 50 mm clearance above and below). Output power derates linearly above 60°C operating temperature.
• Voltage Adjustment: If adjusting output voltage above 24 V DC (up to 28.8 V DC) to compensate for long cable drops, ensure the total output power does not exceed 480 W.
• Overcurrent Selectivity: When powering multiple downstream branches, pair the unit with a SITOP PSE200U Selectivity Module to ensure fast, selective isolation of short-circuited branches without tripping the primary 24 V rail.
• Parallel Operation: Switch the onboard parallel/single-unit slide selector to “Parallel” before connecting multiple units in parallel to balance output current distribution properly.

Product Applications

• Factory Automation & Robotics: Supplying main 24 V DC power for SIMATIC S7 PLCs, HMI panels, distributed I/O systems, and sensor networks.
• Machine Building: Driving solenoids, relays, contactors, and small DC motors in packaging, textile, and processing machinery.
• Process Industries: Providing reliable control voltage in oil & gas, water treatment, chemical processing, and energy distribution systems.
