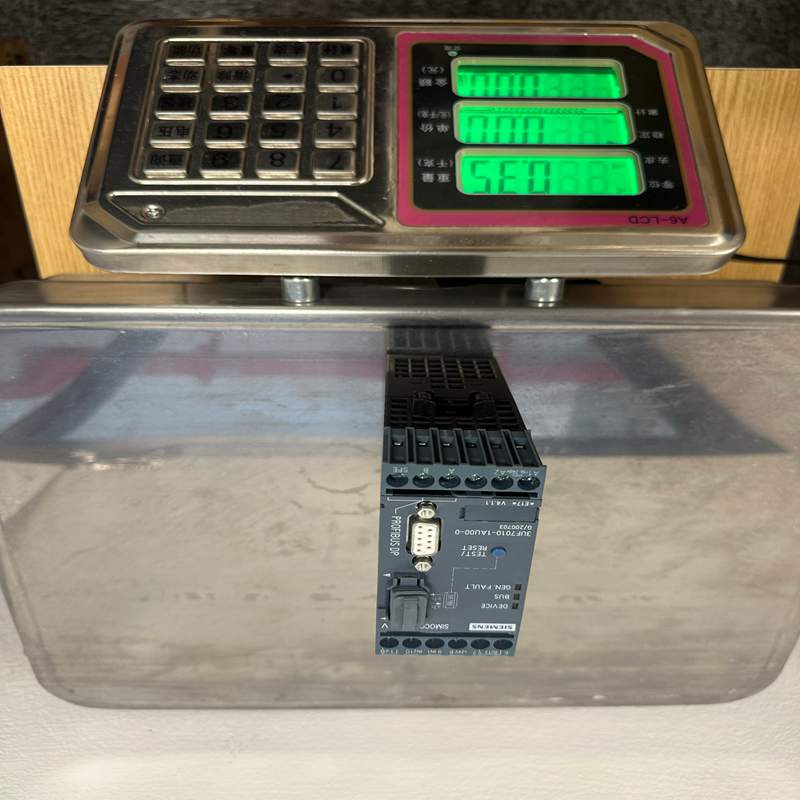

Siemens 3UF7010-1AU00-0 motor protection control module

Description

Siemens 3UF7010-1AU00-0 motor protection control module

Product Dimensions：

The Siemens 3UF7010-1AU00-0 is a basic evaluation unit belonging to the SIMOCODE pro V motor management system family. It functions as a flexible, intelligent control and protection hub for constant-speed low-voltage motors.

Product Detailed Description

The 3UF7010-1AU00-0 unit combines comprehensive motor protection, control logic, fieldbus communication, and diagnostic monitoring into a single compact housing. It acts as the central processing unit within a SIMOCODE pro system, connecting to current/voltage measuring modules, operator panels, and fieldbus networks via PROFIBUS DP.

Key Technical Parameters

Product Advantages

• Comprehensive Motor Protection: Combines electronic overload protection, thermistor evaluation, phase failure, and ground fault detection into a single module.
• Flexible Fieldbus Communication: Native PROFIBUS DP interface enables seamless transmission of operating, control, and diagnostic data directly to higher-level automation systems (e.g., SIMATIC S7 / TIA Portal).
• Modular Expandability: Connects via a side expansion bus to various optional expansion modules (e.g., additional digital/analog I/O, temperature monitoring, ground-fault detection).
• Autonomous Safety & Logic: Capable of running local motor control logic independently of PLC cycle times or fieldbus connection status.
• Detailed Diagnostics: Tracks operational hours, motor start cycles, trip histories, and energy consumption metrics to support predictive maintenance.

Important Considerations (Precautions)

• Current/Voltage Measurement Module Required: The basic unit itself does not measure motor current directly. It must be connected to an external current/voltage measuring module (e.g., 3UF7100 series) via system interface cable.
• Power Supply Voltage: Verify that the control supply voltage matches the 110–240 V AC/DC rating; connecting 24 V DC directly to the A1/A2 main supply terminals of this specific model will cause malfunction or damage.
• PROFIBUS Termination: Ensure proper bus termination resistors are enabled at both physical ends of the PROFIBUS line to prevent signal reflection issues.
• System Address Assignment: Assign a unique PROFIBUS address using SIMOCODE ES software or addressing plugs before placing the unit into active network communication.

Product Applications

• Process Industry: Oil & gas refineries, chemical plants, and water/wastewater treatment facilities where motor availability and detailed diagnostic data are critical.
• Material Handling & Mining: Conveyor systems, crushers, and pumps requiring multi-stage protection and interlocked sequence logic.
• Power Plants & Manufacturing: Motor Control Centers (MCCs) in automated manufacturing lines utilizing PROFIBUS DP communications.
