SIEMENS 3UF7010-1AU00-0 Motor Management Basic Unit

Description

SIEMENS 3UF7010-1AU00-0 Motor Management Basic Unit

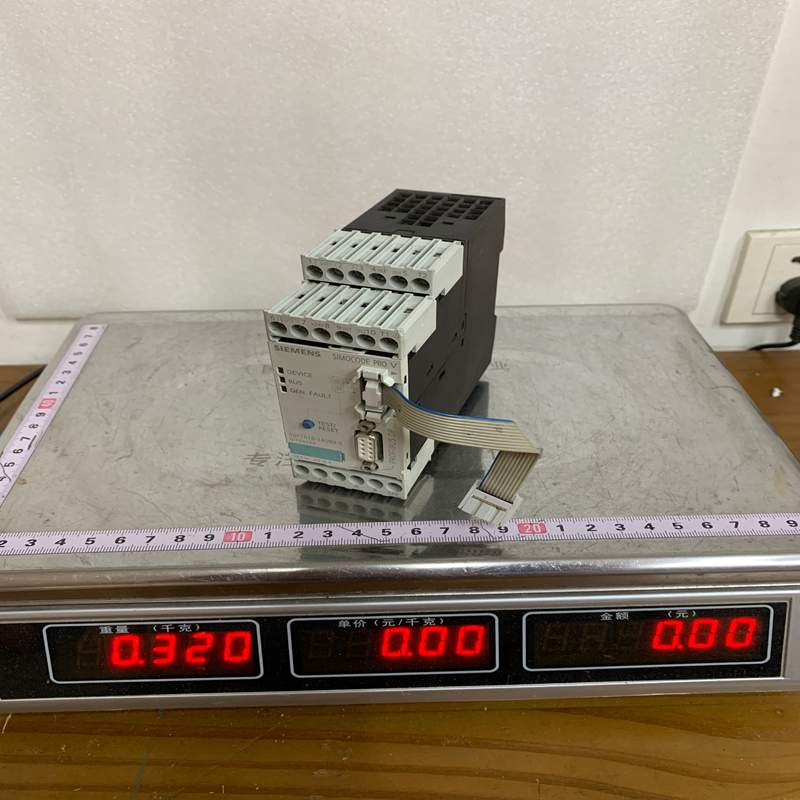

Product Dimensions：

The Siemens 3UF7010-1AU00-0 is a SIMOCODE pro V PROFIBUS basic unit. SIMOCODE pro is Siemens’ flexible, modular motor management system designed for low-voltage constant-speed motors, providing motor protection, control, and detailed operational/diagnostic data to automation systems.

Product Detailed Description

The 3UF7010-1AU00-0 acts as the central processor for a SIMOCODE pro V assembly. It communicates over a PROFIBUS DP interface (up to 12 Mbps) and integrates essential motor control logic (direct-on-line, reversing, star-delta starters) along with advanced protection functions.

It handles inputs/outputs, evaluates connected current/voltage measuring modules, and executes safety- or process-related functions.

Technical Parameters

Product Advantages

• Comprehensive Motor Protection: Combines electronic overload protection, thermistor evaluation, ground-fault monitoring, and phase-unbalance detection into a single device.
• Reduced Cabinet Wiring: Replaces complex traditional relay and timer wiring with internal software control functions (DOL, Reversing, Dahlander, Star-Delta).
• Rich Diagnostic Data: Transmits real-time operational metrics (current, voltage, power, operating hours, trip history) directly to the SCADA/PLC system via PROFIBUS.
• Modular Versatility: The system scales easily by plugging in additional expansion modules (e.g., ground-fault modules, analog I/O, failsafe safety modules) to match specific application needs.

Important Considerations (Precautions)

• Measuring Module Required: The basic unit requires an external Current/Voltage Measuring Module (e.g., 3UF7100/3UF7110 series) connected via the system interface cable to measure electrical parameters.
• PROFIBUS Line Termination: Ensure proper RS-485 line termination resistors are enabled at both physical ends of the PROFIBUS segment to prevent data corruption.
• Control Voltage Verification: This unit requires 110…240 V AC/DC. Connecting 24 V DC directly to the control supply terminals (A1/A2) will prevent the unit from powering up (for 24 V DC supply setups, use the 3UF7010-1AB00-0 model instead).
• Parameterization Tool: Configuration is created and uploaded using SIMOCODE ES software (integrated into TIA Portal or as a standalone utility).

Product Applications

• Process Industries: Chemical, petrochemical, and pharmaceutical plants where high motor availability and continuous diagnostic feedback are critical.
• Water & Wastewater: Controlling and protecting pumps, agitators, and aeration blowers with automatic reversing or jam-protection logic.
• Power & Energy: Motor Control Centers (MCCs) in power stations managing auxiliary drives and draft fans.
• Bulk Material Handling: Conveyor belts, crushers, and mills requiring integrated current/power monitoring to detect mechanical jams or dry-running conditions.
