Siemens 3UF7010-1AB00-0 Basic Motor Management Unit

Description

Siemens 3UF7010-1AB00-0 Basic Motor Management Unit

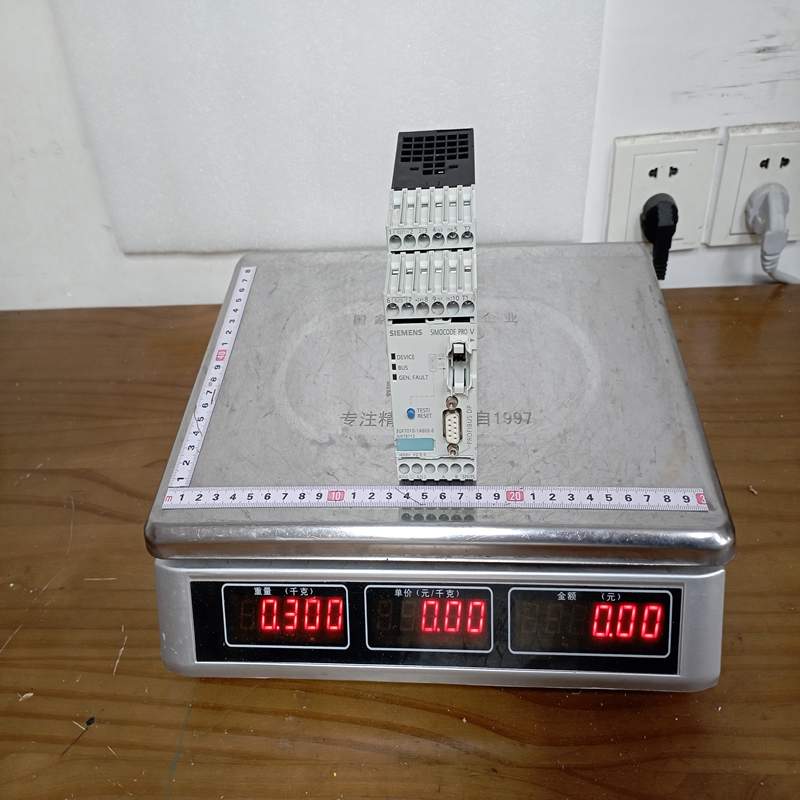

Product Dimensions：

The Siemens 3UF7010-1AB00-0 is a high-performance Basic Unit belonging to the SIMOCODE pro V (Variable) motor management system. It acts as the intelligent “brain” of a flexible, modular motor management system for low-voltage motors.

Product Detailed Description

The 3UF7010-1AB00-0 handles all control, protection, and monitoring functions for a motor feeder. It operates independently of the automation system (PLC/DCS), meaning it can safely shut down the motor in the event of a fault even if central communication is lost.

This specific basic unit features a PROFIBUS DP communication interface, allowing it to seamlessly transmit operational, diagnostic, and statistical data back to a centralized control room.

Technical Parameters

Product Advantages

• Multifunctional Protection: Combines motor protection (overload, phase failure, unbalance, stalled rotor) and control functions (direct starter, reversing starter, star-delta) in a single device.
• Detailed Diagnostics: Provides comprehensive preventative maintenance data, including operating hours, motor stop/start cycles, and time-to-trip calculations, minimizing unscheduled downtime.
• Flexible Scalability: Its modular hardware architecture allows you to easily scale up the system by clicking expansion modules onto the basic unit via a system interface cable.
• Autonomous Safety: Safe shutdown logic resides directly in the module, ensuring that critical motor loops remain protected regardless of the network state.

Important Considerations & Precautions

• Current/Voltage Modules Required: The 3UF7010-1AB00-0 basic unit does not contain internal current measuring transformers. It must be paired with an external current measuring module (e.g., 3UF71) via a connection cable to function.
• Power Supply Ripple: Ensure the 24 V DC power supply is highly stabilized. Voltage drops below 19.2 V DC can cause the unit to reset or initiate a safety trip.
• Addressing: The PROFIBUS address must be configured either via the front-facing optical interface using software (SIMOCODE ES) or via a connected operator panel before deployment.
• Firmware Consistency: If replacing an older basic unit or adding new expansion hardware, check for firmware compatibility to ensure all advanced diagnostic parameters transfer correctly.

Product Applications

The SIMOCODE pro V system is heavily relied upon in automated industries requiring maximum motor availability:

• Chemical & Petrochemical: Controlling and monitoring critical pumps, agitators, and exhaust fans in hazardous environments.
• Oil & Gas: Motor management in remote pipeline pumping stations and refining units.
• Water & Wastewater Treatment: Running heavy-duty high-pressure pumps and sludge scrapers.
• Mining & Cement: Protecting high-torque conveyor belts, crushers, and rotary kilns from motor stalling or structural blockages.
