SIEMENS 3TX7005-1MB00 Coupling Relay

Description

SIEMENS 3TX7005-1MB00 Coupling Relay

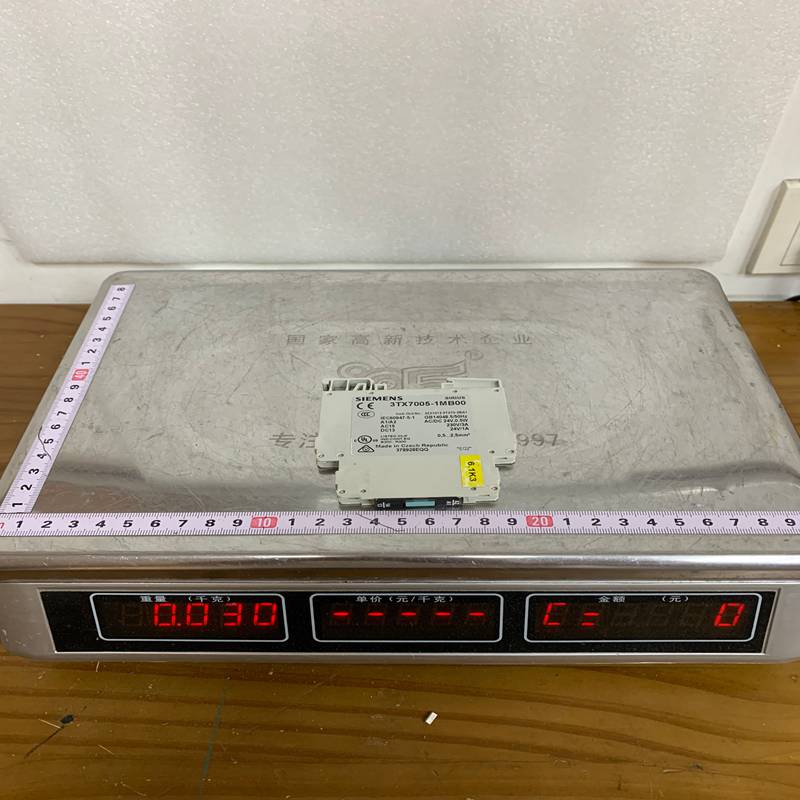

Product Dimensions：

the SIEMENS 3TX7005-1MB00 is a high-quality Interface Relay (also known as a coupling link) from the SIRIUS range. These compact devices are essential for providing electrical isolation and signal matching between electronic controllers (like PLCs) and higher-power industrial loads.

Product Detailed Description

The 3TX7005-1MB00 is a narrow-profile interface relay designed for space-saving installation on a standard DIN rail. Its primary role is to “couple” sensitive control signals to the field level. For example, it allows a low-power 24V DC output from a PLC to switch a more robust AC or DC circuit, while protecting the PLC from electrical noise and voltage spikes.

Technical Parameters

Product Advantages

• Space-Saving Design: At only 6.2 mm wide, it allows for high-density packing in control cabinets, significantly reducing the required rail space.
• Universal Voltage: The 24 V AC/DC input flexibility simplifies inventory management, as one part number can handle both AC and DC control logic.
• Built-in Protection: Features integrated overvoltage protection (typically via a suppressor diode or varistor) to protect the driving electronic output from inductive kickback.
• High Reliability: Gold-plated contacts are often available in this series for switching very low currents (dry circuits) with high contact reliability.
• Visual Status: Includes a built-in LED indicator to show the switching state of the relay at a glance, aiding in rapid troubleshooting.

Important Considerations & Precautions

• Load Limits: Do not exceed the 6A thermal current rating. For high-inductive loads (like large motors), ensure you use an appropriately rated contactor rather than switching the load directly with this interface relay.
• Mounting Orientation: While it can be mounted in any position, ensure adequate ventilation if multiple relays are switching maximum currents simultaneously in a high-temperature environment.
• Terminal Torque: Use the correct screwdriver size and torque for the screw terminals to ensure a gas-tight connection and prevent wire damage or overheating.
• Contact Welding: To prevent contact welding during a short circuit, ensure the upstream fuse or circuit breaker is correctly sized for the relay’s rated current.

Product Applications

The 3TX7005-1MB00 is a “workhorse” in automation:

• PLC Output Coupling: Interfacing PLC transistor outputs with solenoid valves, small motors, or heaters.
• Signal Isolation: Separating different voltage potentials (e.g., 24V control logic from 230V field devices) to prevent ground loops.
• Input Multiplying: Using one sensor signal to trigger multiple independent control circuits through the changeover contact.
• Galvanic Separation: Protecting expensive control hardware from field-side electrical faults or transients.
