Siemens 3RT2038-3AP00 AC Contactor

Description

Siemens 3RT2038-3AP00 AC Contactor

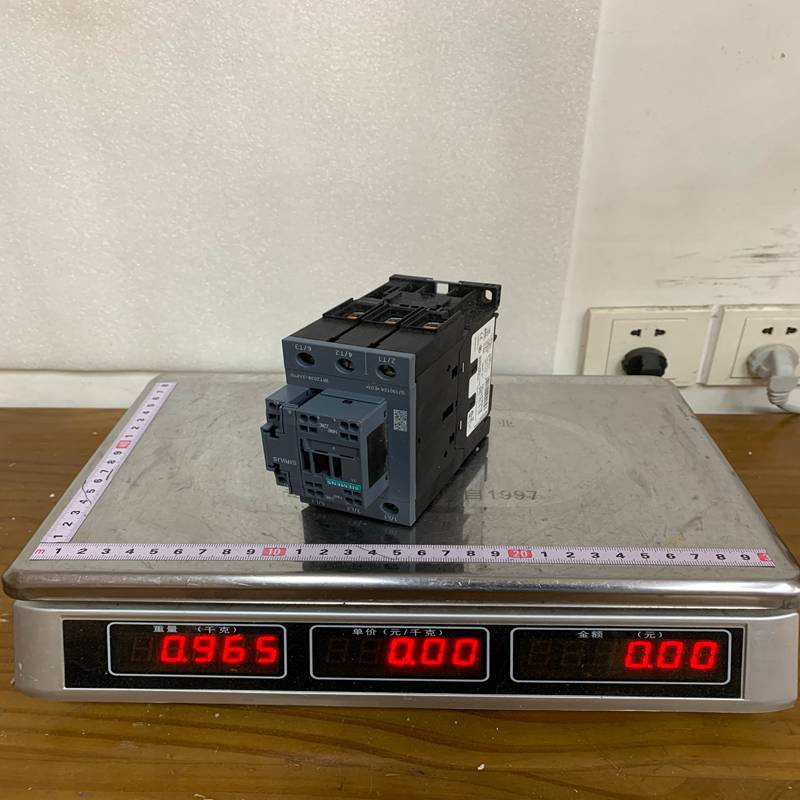

Product Dimensions：

The Siemens 3RT2038-3AP00 is a high-performance power contactor from the SIRIUS Innovation generation. It is a size S2 contactor designed for switching motors and resistive loads in industrial environments where high reliability and durability are paramount.

Product Detailed Description

The 3RT2038-3AP00 is a 3-pole power contactor engineered for high-frequency switching. It belongs to the 3RT20 series, which is optimized for AC-3 (inductive load) applications. This specific model features spring-loaded terminals (Cage Clamp), which provide superior resistance to vibration and reduce installation time compared to traditional screw terminals.

Technical Parameters

Product Advantages

• Spring-Loaded Terminals: The “Cage Clamp” technology ensures a gas-tight, vibration-proof connection that never requires re-tightening, making it ideal for high-vibration machinery.
• Compact Design: Despite its high 80A rating, the S2 frame size remains highly space-efficient, allowing for smaller control cabinet dimensions.
• Modular Compatibility: It is part of the SIRIUS modular system, meaning it can be seamlessly combined with 3RV2 circuit breakers and 3RB3 overload relays using standard link modules.
• Energy Efficiency: Optimized coil design reduces power loss, contributing to lower heat generation within the electrical cabinet.
• High Operational Reliability: Designed to operate in high ambient temperatures (up to 60°C without derating) and under harsh electrical conditions.

Important Considerations & Precautions

• Coil Voltage: This model is designed for 230 V AC at 50 Hz. Connecting it to 60 Hz power without checking the tolerance may lead to overheating or humming.
• Inrush Currents: Ensure that the upstream protection (fuses or circuit breakers) is rated for the motor’s inrush current to prevent nuisance tripping during startup.
• Mounting Position: While it can be mounted on a standard 35mm DIN rail, for maximum stability in size S2, it is recommended to use the screw-fixing option on a mounting plate.
• Arcing Distance: Maintain the minimum clearance distances from grounded parts and other electrical components as specified in the Siemens technical manual to ensure safe arc dissipation.

Product Applications

The Siemens 3RT2038-3AP00 is used extensively in heavy-duty industrial automation:

• Motor Control: Starting and stopping heavy 3-phase motors up to 37 kW, such as those used in large pumps and fans.
• Material Handling: Powering large conveyor systems, elevators, and cranes in logistics centers.
• Compressors: Controlling high-capacity air or refrigeration compressors in industrial cooling.
• HVAC Systems: Large-scale commercial heating and ventilation units.
• Industrial Processing: Switching resistive heating elements or lighting loads in manufacturing plants.
