SICK S32B-3011EA Safety Laser Scanner

Description

SICK S32B-3011EA Safety Laser Scanner

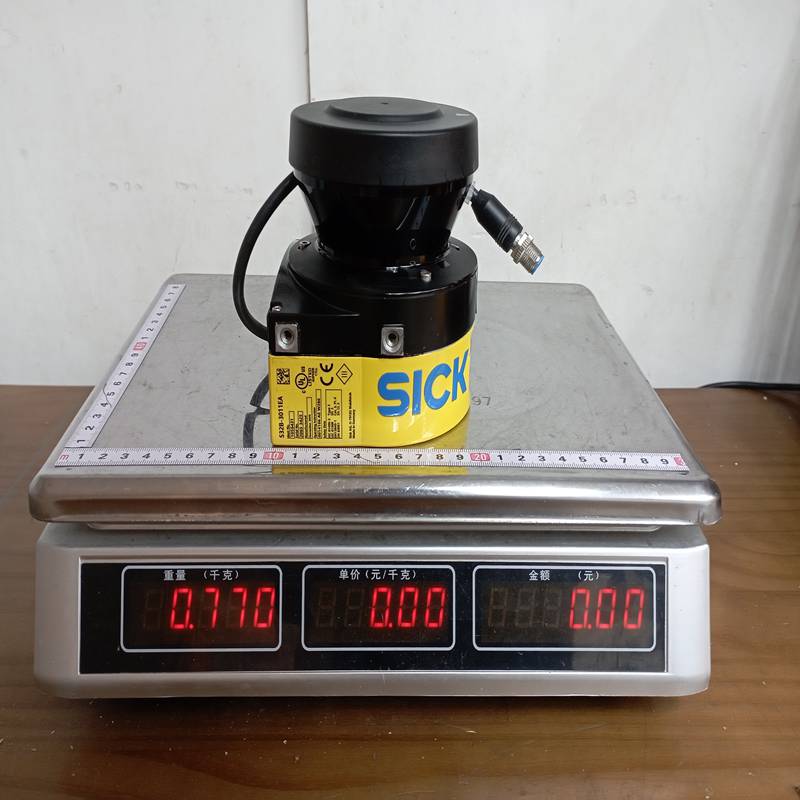

Product Dimensions：

The SICK S32B-3011EA belongs to the S3000 Professional series. It is a high-performance safety laser scanner designed for the protection of hazardous areas, surfaces, and access points. It is widely recognized for its long-range capabilities and flexibility in complex industrial environments.

## Detailed Product Description

The S32B-3011EA is an optical sensor that scans its surroundings in a fan-shaped manner using infrared laser beams. It creates a “safety field” around machinery or automated guided vehicles (AGVs). If an object or person enters the defined field, the scanner sends a stop signal to the machine’s control system.

The “Professional” variant is specifically designed for complex applications requiring multiple field sets and advanced monitoring cases.

## Technical Parameters

## Product Advantages

• Large Monitoring Range: With a 7-meter safety range, it covers significantly larger areas than the “Compact” or “Standard” versions.

• Modular Design: The system plug approach allows for easy replacement of the sensor head without having to redo the wiring.

• Advanced Field Configuration: It supports up to 8 switchable field sets, making it ideal for AGVs that change speed and direction.

• Robustness: Features high immunity to ambient light and dust, reducing “false trips” and maintaining productivity.

• Integrated Memory: Configuration data is stored in the system plug, allowing for “plug-and-play” replacement.

## Key Applications

1. Automated Guided Vehicles (AGVs): Providing collision avoidance and personnel protection as the vehicle moves through a warehouse.

2. Hazardous Area Protection: Surrounding robotic cells or large CNC machines to prevent human entry during operation.

3. Access Protection: Monitoring large entryways to ensure machinery shuts down if a person crosses the threshold.

4. Stacker Cranes: Ensuring safe distances in automated storage and retrieval systems (ASRS).

## Important Precautions (Usage Notes)

• Mounting Height: Ensure the scanner is mounted at a height that prevents “crawling under” or “stepping over” the protective field.

• Environmental Factors: While IP65 rated, extreme steam, heavy rain, or dense fog can interfere with the optical path.

• Regular Cleaning: The front screen must be kept clean with a soft, anti-static cloth to maintain the rated sensing range.

• Safety Distance Calculation: The actual installation distance must include the scanner’s response time and the machine’s stopping time (following ISO 13855).
