SCHNEIDER XPSMC32ZC Safety Motion Controller

Description

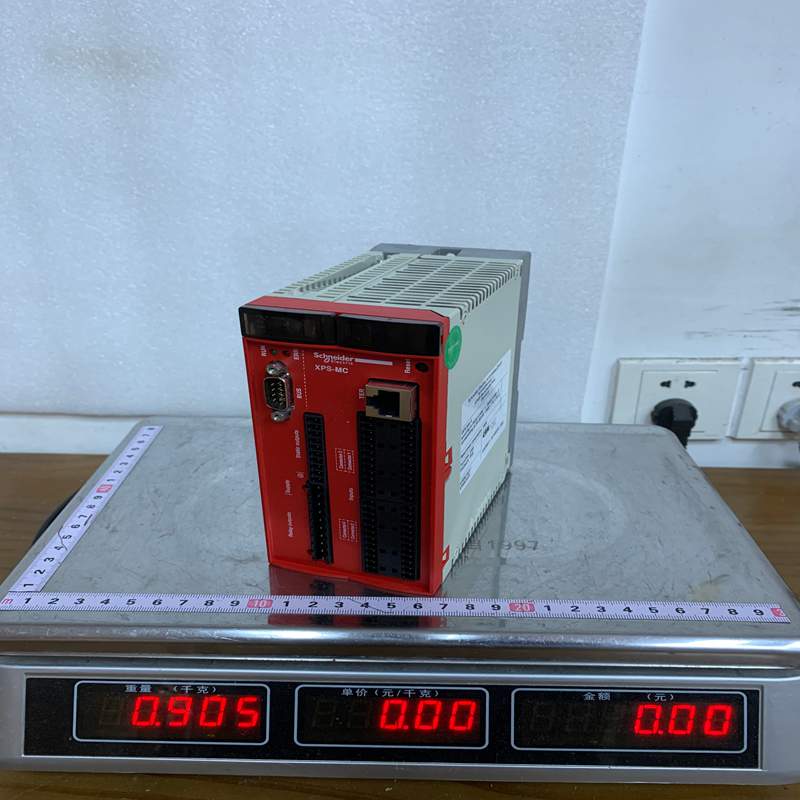

SCHNEIDER XPSMC32ZC Safety Motion Controller

The Schneider Electric XPSMC32ZC is a high-performance, configurable safety controller belonging to the Preventa XPSMC (Harmony XPS) range. It is designed to monitor multiple independent safety functions simultaneously in complex industrial machinery.

Product Detailed Description

The XPSMC32ZC serves as a centralized safety CPU. Rather than utilizing dozens of standalone safety relays, this single unit can manage all safety inputs on a machine. The configuration is flexible and created using the PC-based XPSMCWIN software. The “C” in the suffix denotes that this specific variant comes with an integrated CANopen communication port alongside a standard Modbus RTU serial link, allowing for extensive diagnostic data transmission to upper-level control systems.

Technical Parameters

Product Advantages

• High Function Density: Consolidates up to 32 inputs, cutting down on cabinet footprint, hardware complexity, and hard-wiring costs compared to traditional single-function relays.
• Dual Fieldbus Communication: The inclusion of both Modbus and CANopen protocols enables rich diagnostic data (such as which guard is open or which E-stop was hit) to be directly fed to HMIs or PLCs.
• Maximum Safety Compliance: Achieves the highest safety ratings available (SIL 3 / PL e), making it suitable for hazardous machinery requiring stringent safety compliance.
• Pre-Defined Safety Functions: The software features pre-certified, built-in functional library blocks (e.g., muting, two-hand control, zero-speed detection), eliminating the need for complex safety code validation.

Important Considerations & Precautions

• Software Requirement: Modifying or establishing the initial logic configuration requires a dedicated PC software (XPSMCWIN) and a specific USB-to-RJ45 programming cable (e.g., TCSMCNAM3M002P).
• Input Diagnostics: To achieve Category 4 / PL e protection, appropriate test pulse signals must be enabled to dynamically detect short circuits across channels.
• Life Cycle Status: The Preventa XPSMC range has moved past its primary commercialization window, being succeeded by the modular Modicon MCM safety system series. For new project designs, look toward migration to the XPSMCMC series, though spare part support for the legacy XPSMC32ZC continues.

Product Applications

The XPSMC32ZC is primarily utilized in multi-zone manufacturing equipment and industrial processing cells:

• Metalworking Press Machines: Controlling eccentric and hydraulic presses, monitoring dynamic valve synchronization, and safety stops at the top dead center.
• Packaging and Material Handling lines: Coordinating emergency stops, multiple interlocking safety guards with locking solenoids, and light curtains.
• Injection Molding & Blow Molding Machinery: Guard monitoring with safety limit switches and enabling switch integration for maintenance entry.
• Automated Robot Cells: Realizing optical light curtain muting functions (allowing materials to pass through while keeping humans safe) and zero-speed or chain-breaking detection.
