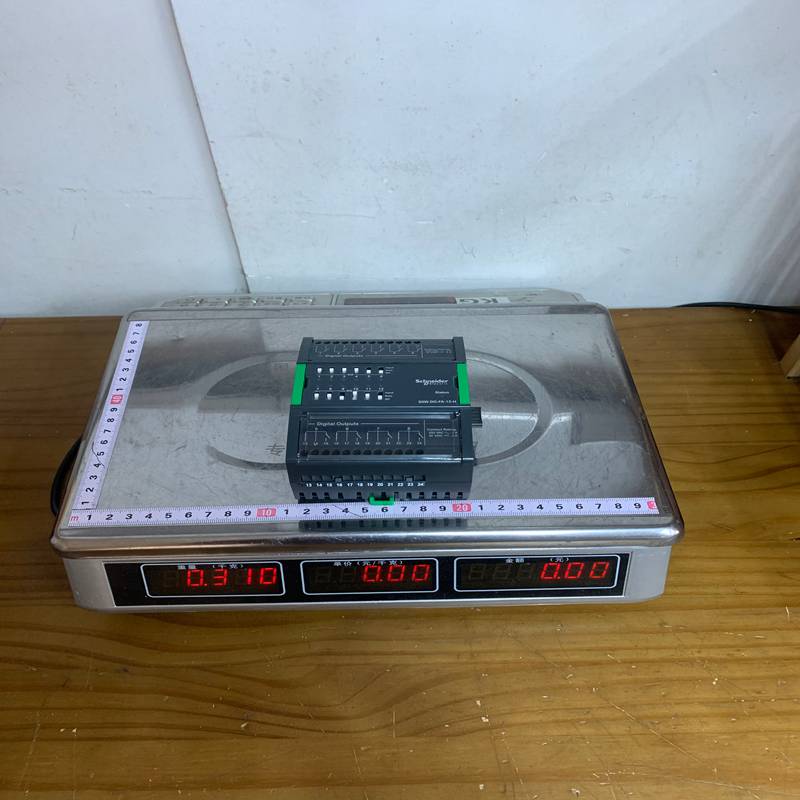

Schneider SXW-DO-FA-12-h 12-channel Type A Contact Digital Output Module

Description

Schneider SXW-DO-FA-12-h 12-channel Type A Contact Digital Output Module

The Schneider Electric SXW-DO-FA-12-H is a high-density digital output module part of the SpaceLogic (formerly SmartX) AS-P and AS-B Automation Server ecosystem. It is designed for precise control in Building Management Systems (BMS).

Product Overview

The SXW-DO-FA-12-H is a 12-channel digital output module featuring Form A (Normally Open) relay contacts. The “-H” designation signifies that it includes Hand-Off-Auto (HOA) overrides, allowing for manual intervention and local control directly from the hardware.

Technical Specifications

Below are the core technical parameters for the module:

Key Product Advantages

• Manual Overrides (HOA): The front-panel switches allow technicians to manually force an output “On” or “Off” for testing and maintenance, bypassing the software logic.

• High Density: Provides 12 channels in a compact footprint, saving valuable space in control panels.

• Seamless Integration: Fully compatible with EcoStruxure Building Operation (EBO) software for easy configuration and monitoring.

• Hot-Swappable: Designed to be replaced without powering down the entire system (when used with the correct terminal base), reducing downtime.

• Reliability: Robust relay design ensures long-term switching performance for heavy-duty HVAC components.

Important Considerations & Precautions

• Current Limits: Ensure the total load across all channels does not exceed the module’s power dissipation limits.

• Inductive Loads: When switching inductive loads (like motor starters or large solenoids), use external suppression (snubbers or varistors) to protect the relay contacts from arcing.

• Safety Interlocks: Do not rely solely on the software or HOA switches for safety-critical emergency stops; hardware hard-wiring is required for life-safety circuits.

• Terminal Base: This module requires a specific SXW-TB-SBO-1 (or equivalent) terminal base for wiring and mounting.

Product Applications

The SXW-DO-FA-12-H is typically used to control:

• HVAC Equipment: Lighting circuits, small fans, and pumps.

• Staging: Controlling multiple stages of electric heaters or chillers.

• Alarms: Triggering external audible or visual alarm signals.

• Interlocking: Providing dry-contact signals to third-party equipment like Fire Alarm Control Panels or VFD start/stop inputs.
